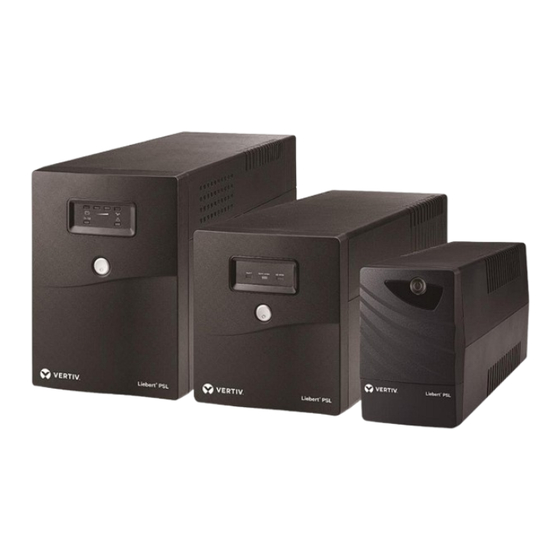

Summary of Contents for Vertiv Liebert PSL Series
- Page 2 SAVE THESE INSTRUCTIONS) MPORTANT AFETY NSTRUCTIONS This manual contains important instructions that should be CAUTION! Internal battery voltage is 12VDC. Sealed, followed during installation and maintenance of the UPS. lead-acid, 6-cell battery. Attention hazardous through electric shock. Also with Intended for installation in a controlled environment.
- Page 3 ETUP ONTINUE Step 4 Start the UPS Step 6 Connect the Network Surge Protection After the battery is fully charged: Turn on the UPS by pressing the On/Off button. Normal mode LED should be illuminated, indicating the UPS is operating in Normal mode.
- Page 4 UPS C PSL 650BX/850BX) ONTROLS AND ONNECTIONS 1 0 B Figures 1 – Front Panel LEDs Figure 2 – Rear Panel (NEMA 120V) On/Off button with LED indicator USB Port (option) RJ11 Phoneline (blue) Surge protection Circuit Breaker (option) AC Input Battery backup outlets (6) Figure 3 –...
- Page 5 U PS C PSL 1000BX) ONTROLS AND ONNECTIONS Figures 5 – Front Panel Figures 6– Rear Panel (NEMA 120V) RJ45 Network Surge LED 3 (red=fault) LED 2 (yellow USB Port (option) Protection (option) =Battery mode) AC input LED 1 (green =Normal LED) Circuit On/Off...
- Page 6 UPS C PSL 1500BX/2000BX) ONTROLS AND ONNECTIONS F igures 9 – Front Panel Figure 10 – Rear Panel (NEMA 120V) 1 0 B LED 2- LED 5 ( green = Load/battery status indicators) USB Port AC input (option) LED 1 green =Status LED) RJ45 Network On/Off...
- Page 7 ROUBLESHOOTING If the UPS malfunctions during operation, check the following chart for proper adjustment. For further assistance, please contact your local Vertiv representative. Problem Possible Causes Solutions Utility is normal, but Normal LED is not Battery capacity may be low.
