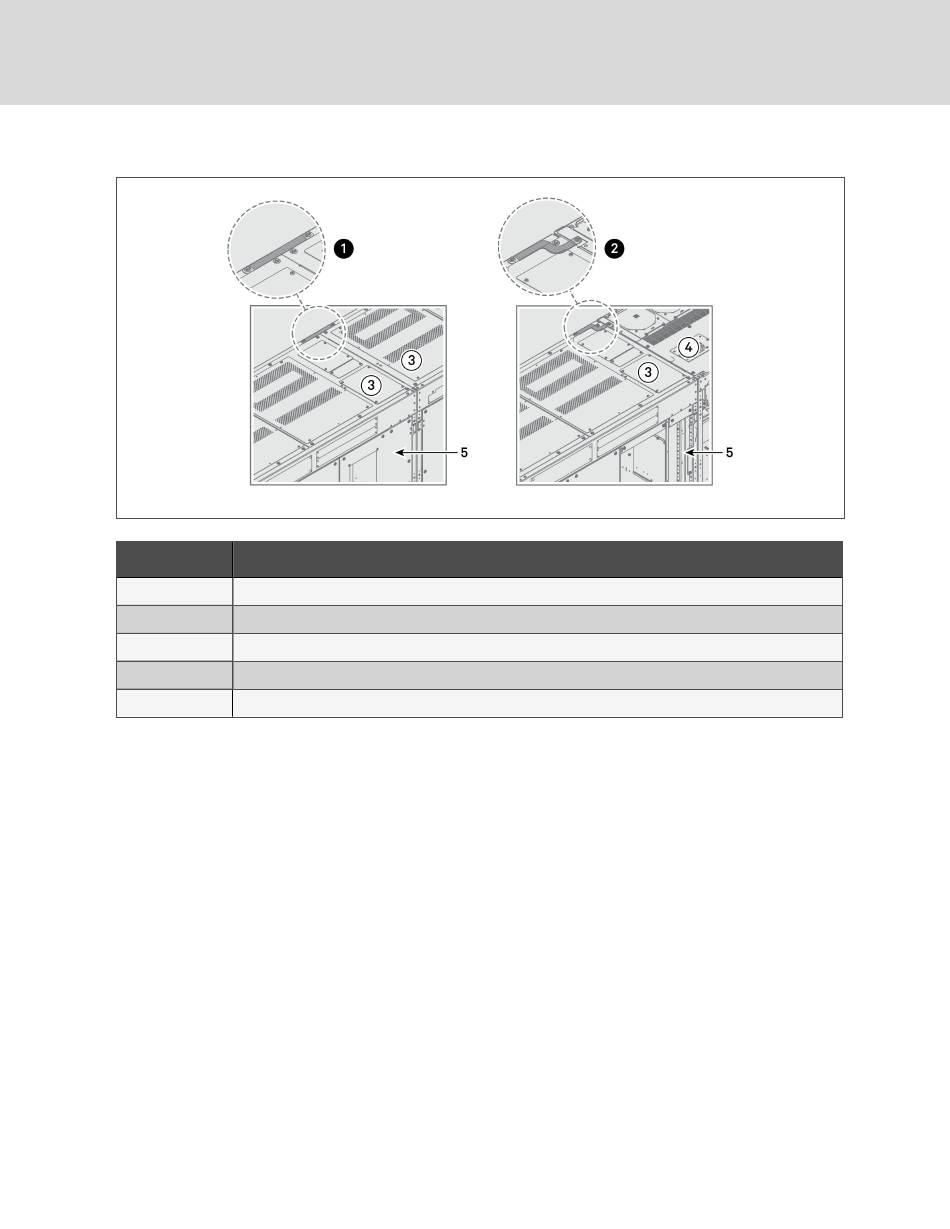

Figure 3.1 Typical Ground Strap Connections between Cabinets
Item
1 Example ground strap connection between battery cabinets.
2 Example ground strap connection between battery cabinet and a UPS or other type of cabinet.
3 Battery cabinet
4 UPS or junction box
5 Front-side of units
3.3 Interconnecting Battery Cables in a Top-Terminal Cabinet
NOTE: Make sure that you complete all cabinet and battery interconnections before making any power cabling
connections. The interconnects are very hard to access after the power wiring is complete. Refer to the submittal
drawings that shipped with the battery system, or contact your Vertiv sales representative for the drawings.
Figure 3.2 on the facing page, shows the interconnection between each battery tray and battery jar.
12
Description
Vertiv | Liebert® Large UPS Battery System Installer Guide
