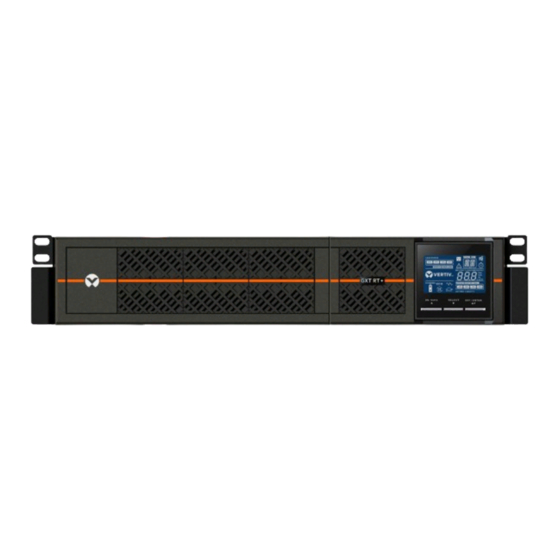

- Page 1 Liebert® GXT RT+ UPS 230 V Input, 230 V Output Installer/User Guide...
- Page 2 Vertiv. This document is the property of Vertiv and contains confidential and proprietary information owned by Vertiv. Any copying, use or disclosure of it without the written permission of Vertiv is strictly prohibited. Names of companies and products are trademarks or registered trademarks of the respective companies.
-
Page 3: Table Of Contents
Chapter 3: Operations..........................................9 3.1. Button Operation.............................................9 3.2. LCD Panel..............................................9 3.3. Audible Alarm............................................12 3.4. LCD Display Wordings Index.....................................12 3.5. UPS Setting..............................................13 3.6. Operating Mode Description.....................................16 3.7. Faults Reference Code........................................17 3.8. Warning Indicators..........................................18 Chapter 4: Troubleshooting........................................20 Vertiv | Liebert® GXT RT+ | Installer/User Guide... - Page 4 Chapter 5: Storage and Maintenance..................................22 5.1. Operation..............................................22 5.2. Storage.................................................22 5.3. Battery Replacement for Rack UPS.................................23 Chapter 6: Specifications........................................24 Appendix I: Technical Support.......................................28 Vertiv | Liebert® GXT RT+ | Installer/User Guide...
-
Page 5: Important Safety Information
• Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system. • When installing the equipment, ensure that the sum of the leakage current of the UPS and the connected devices does not exceed 3.5 mA. Vertiv | Liebert® GXT RT+ | Installer/User Guide... - Page 6 Operation • Do not disconnect the mains cable on the UPS system or the building wiring shockproof outlet during operations since this would cancel the protective earthing of the UPS system and of all connected loads. • The UPS system features its own, internal power source (batteries). The UPS output sockets or output terminal blocks may be electrically live even if the UPS system is not connected to the building wiring outlet.
-
Page 7: Chapter 1: Gxt Rt+ Description
Only connect an external battery of the same voltage and chemistry to the UPS. Table 1-2 External Battery Cabinet EBC MODEL NUMBER COMPATIBLE UPS MODELS GXTRT-EBC24VRT2U GXTRT-1000IRT2UXL GXTRT-EBC36VRT2U GXTRT-1500IRT2UXL GXTRT-EBC48VRT2U GXTRT-2000IRT2UXL GXTRT-EBC72VRT2U GXTRT-3000IRT2UXL Vertiv | Liebert® GXT RT+ | Installer/User Guide... - Page 8 This page is intentionally left blank.
-
Page 9: Chapter 2: Installation And Setup
2.1. Rear Panel Views Figure 2-1 Rear Panels GXTRT-1000IRT2UXL GXTRT-1500IRT2UXL GXTRT-2000IRT2UXL GXTRT-3000IRT2UXL ITEM DESCRIPTION AC input Input circuit breaker USB communication port RS 232 communication port SNMP intelligent slot (option) External battery connection Output receptacles Vertiv | Liebert® GXT RT+ | Installer/User Guide... -
Page 10: Installing The Ups
2.2. Installing the UPS 2.2.1. Rack Installation This UPS can be mounted in a 19” rack chassis as shown in below. Step 1 Step 2 2.2.2. Tower Installation To install the UPS as a tower: 1. Take the support bases out of the accessories box. 2. - Page 11 GXTRT-1500IRT2UXL GXTRT-2000IRT2UXL GXTRT-3000IRT2UXL 20 A 14 AWG Step 3: UPS output connection Connect devices to be protected to the outlets. Step 4: Communication connection Communication Port USB port RS-232 port Intelligent slot Vertiv | Liebert® GXT RT+ | Installer/User Guide...
- Page 12 For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown of the attached computer. Follow the steps below to download and install monitoring software from the Internet: 1. Go to the website http://vertiv.com/Liebert-GXT-RT-Plus. 2. Select the appropriate ViewPower download link for the OS of the attached computer.
-
Page 13: Chapter 3: Operations
This is the normal way to switch to bypass. If desired, the UPS can also be set Buttons to switch to bypass when switched off instead of turning off all outputs. See Setting 05: Bypass enable/disable when UPS is off, on page 14 for details. Vertiv | Liebert® GXT RT+ | Installer/User Guide... -
Page 14: Lcd Panel
3.2. LCD Panel DISPLAY FUNCTION Remaining backup time setting and information Illuminated when UPS is in battery backup mode. Indicates the backup time remaining in number of hours, minutes, or seconds. H: hours, M: minute, S: second Setting operation Shows the setting number currently selected when in settings menu. Fault &... - Page 15 The output is overloaded. The output is shorted. Mode operation information The UPS is in online mode. The UPS is in battery mode. The UPS is in bypass mode. The UPS is in ECO mode. Vertiv | Liebert® GXT RT+ | Installer/User Guide...
- Page 16 DISPLAY FUNCTION The UPS is in frequency converter mode. The UPS is charging the battery. Battery information Displays the battery capacity by showing 1- 4 bars: 1 bar - 0-25% 2 bars - 26-50% 3 bars - 51-75% 4 bars - 76-100% The battery has faulted.
-
Page 17: Audible Alarm
DISPLAY CONTENT ABBREVIATION MEANING Enable Disable Escape Low battery Overload Battery is not connected Overcharge Charger Battery fault b. V Bypass voltage out of range W. T Waiting Bypass frequency unstable EEPROM error Vertiv | Liebert® GXT RT+ | Installer/User Guide... -
Page 18: Ups Setting
3.5. UPS Setting To adjust UPS settings, switch the UPS to standby mode and press and hold the settings button for 5 seconds to enter the settings menu. Use the arrow keys to browse to the desired setting and then press enter to select it. Once selected, use the arrow keys to select the desired settings value. - Page 19 ENA: ECO mode enabled DIS: ECO mode disabled (Default) 05: Bypass enable/disable when UPS is off INTERFACE SETTING Enable or disable Bypass when the UPS is off. ENA: Bypass enable DIS: Bypass disable (Default) Vertiv | Liebert® GXT RT+ | Installer/User Guide...
- Page 20 06: Backup time setting INTERFACE SETTING Sets the amount of backup time on battery mode for general outlets before power is removed. 0-998: setting the backup time in minutes from 0-998 in battery mode. 0: When setting as “0”, the backup time will be only 10 seconds. 999: When setting as “999”, the backup time setting will be disabled.
-
Page 21: Operating Mode Description
50 Hz or 60 Hz. The UPS will still charge battery under this mode. When the input voltage is outside the acceptable Battery mode range, the UPS will provide backup power from the battery and the alarm will sound every 4 seconds. Vertiv | Liebert® GXT RT+ | Installer/User Guide... -
Page 22: Faults Reference Code
OPERATING MODE DESCRIPTION LCD DISPLAY When input voltage is within the acceptable range but the UPS is overloaded, UPS will enter bypass Bypass mode mode or bypass mode can be set by front panel. The alarm will sound every 10 seconds. UPS output is off, but the battery is still charged as Standby mode needed. -
Page 23: Warning Indicators
Battery is not connected Sounds every second Overcharge Sounds every second Waiting W. T Sounds every second Charger failure Sounds every second Bypass voltage out of range b. V Sounds every second Vertiv | Liebert® GXT RT+ | Installer/User Guide... - Page 24 INDICATOR WARNING ALARM WORD ICON (FLASHING) Battery fault Sounds every second Bypass frequency unstable Sounds every second EEPROM error Sounds every second Operations...
-
Page 25: Chapter 4: Troubleshooting
Contact Vertiv to replace the battery Fault code 05 is shown on LCD display. At the same Consult Vertiv. If the UPS power is on A UPS internal fault has occurred and time, the alarm is continuously sounding and the... - Page 26 This page is intentionally left blank.
-
Page 27: Chapter 5: Storage And Maintenance
The UPS system contains no user-serviceable parts. If the battery service life (3 ~ 5 years at 25 °C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact Vertiv. Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material. -
Page 28: Battery Replacement For Rack Ups
5.3. Battery Replacement for Rack UPS NOTICE: This UPS is equipped with hot swappable internal batteries that the user can replace without shutting down the UPS or connected loads. Replacement is a safe procedure, isolated from electrical hazards. CAUTION!! Read all warnings, cautions, and notes before replacing batteries. Note: Upon battery disconnection, equipment is not protected from power outages. -
Page 29: Chapter 6: Specifications
130% - 150%: UPS shuts down after 1 minute > 150%: UPS shuts down immediately AC Mode to Batt. Mode Zero Transfer Time Inverter to Bypass 4 ms (Typical) Waveform Pure Sinewave EFFICIENCY Online Mode Battery Mode Vertiv | Liebert® GXT RT+ | Installer/User Guide... - Page 30 Table 6-1 UPS Specifications (continued) CAPACITY 1000 VA/ 900 W 1500 VA/ 1350 W 2000 VA/ 1800 W 3000 VA/ 2700 W GXTRT- 1000IRT2UXL 1500IRT2UXL 2000IRT2UXL 3000IRT2UXL BATTERY Battery Type Valve-regulated, non-spillable, lead acid Quantity x 2 x 12V x 9Ah 3 x 12V x 9Ah 4 x 12V x 9Ah 6 x 12V x 9Ah...
- Page 31 2000 m without derating. Between 2000 and 3000 m, derate 1% for every 100 m. Operating Elevation Operation above 3000 m is not supported. Table 6-3 GXTRT-1000IRT2UXL Runtime Table See Note 1 NUMBER OF EXTERNAL BATTERY CABINETS INTERNAL LOAD BATTERY ONLY Minutes 1000 Vertiv | Liebert® GXT RT+ | Installer/User Guide...
- Page 32 Table 6-4 GXTRT-1500IRT2UXL Runtime Table See Note 1 INTERNAL NUMBER OF EXTERNAL BATTERY CABINETS LOAD BATTERY ONLY Minutes 38.5 1035 26.2 1125 1013 1200 1080 1350 1215 1500 1350 Table 6-5 GXTRT-2000IRT2UXL Runtime Table See Note 1 INTERNAL NUMBER OF EXTERNAL BATTERY CABINETS LOAD BATTERY ONLY...
-
Page 33: Appendix I: Technical Support
Toll +39 02 98250222 In the United States Technical support e: liebert.upstech@vertiv.com p: 1-800-222-5877 menu option 1 Monitoring support e: liebert.monitoring@vertiv.com p: 1-800-222-5877 menu option 2 Warranty support e: microups.warranty@vertiv.com p: 1-800-222-5877 menu option 3 Vertiv | Liebert® GXT RT+ | Installer/User Guide... - Page 34 © 2020 Vertiv Group Corp. All rights reserved. Vertiv™ and the Vertiv logo are trademarks or registered trademarks of Vertiv Group Corp. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness here, Vertiv Group Corp.
