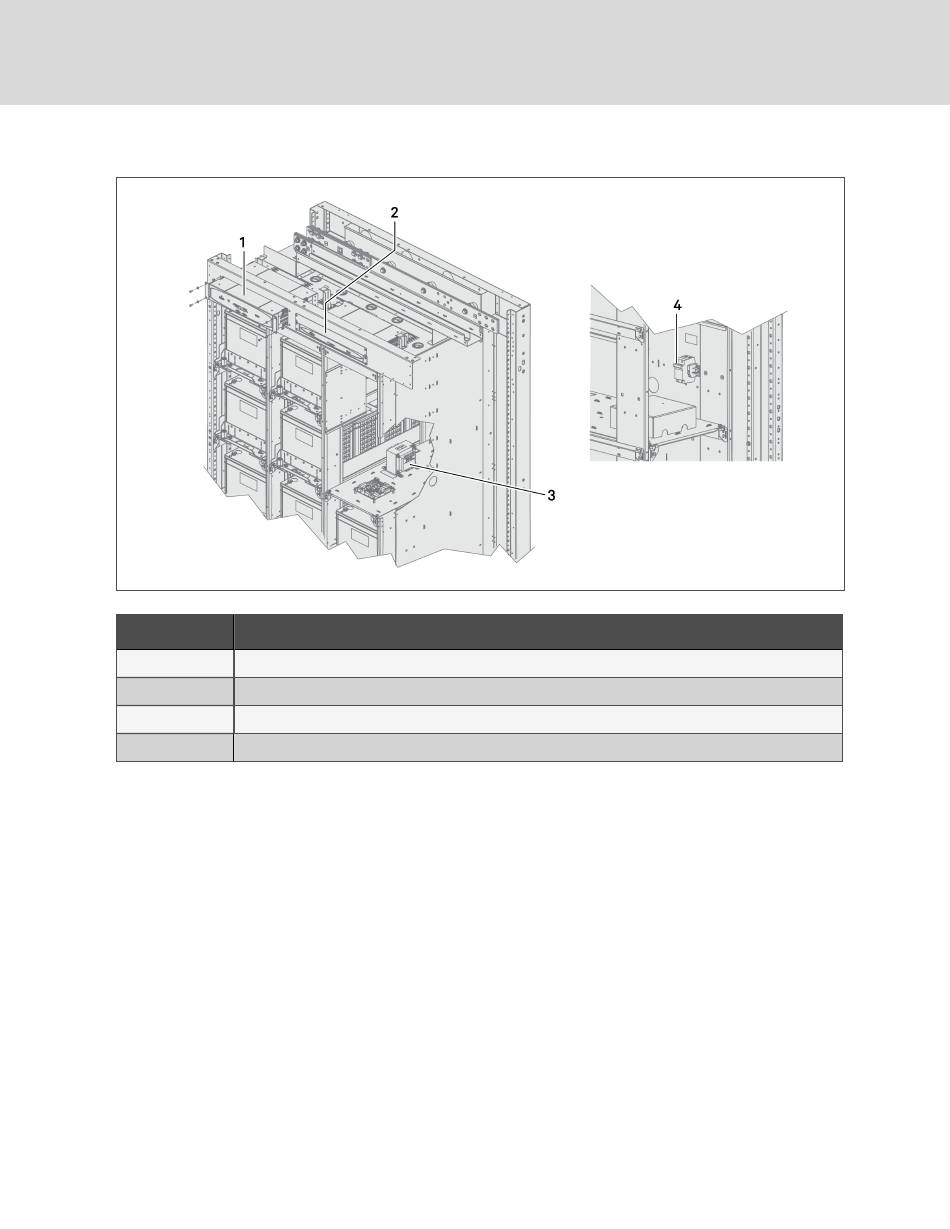

Figure 3.14 Monitoring System Components in the Battery Cabinet
Item
1
2
3
4
3.6.6 Connecting an External Room Temperature Sensor
Your system may include an optional temperature sensor that monitors the ambient temperature of the room. Monitoring
the temperature allows temperature compensation charging by a connected Liebert® UPS.
The sensor connects to the battery interface board at P1153. See Figure 3.7 on page 20 for the location of the connector on
the board.
28
Description
Control module
Battery module
Monitoring system power transformer
Monitoring system power input fuse
Vertiv | Liebert® Large UPS Battery System Installer Guide
