The smart antenna configured to accept cmr or rtcm format rtk corrections from a bridge.

Hide thumbs Also See for RTK Bridge-X:

• Connect the SAE power connector to the supplied DC power adapter which is

connected to Battery power.

• Connect the Serial 1 (A Port) to the monitor (Integra or Versa) and configure the GPS

2500 through the monitor. For Assistance with using the Ag Leader monitor, please

see the attached Ag Leader Addendum or contact Ag Leader directly.

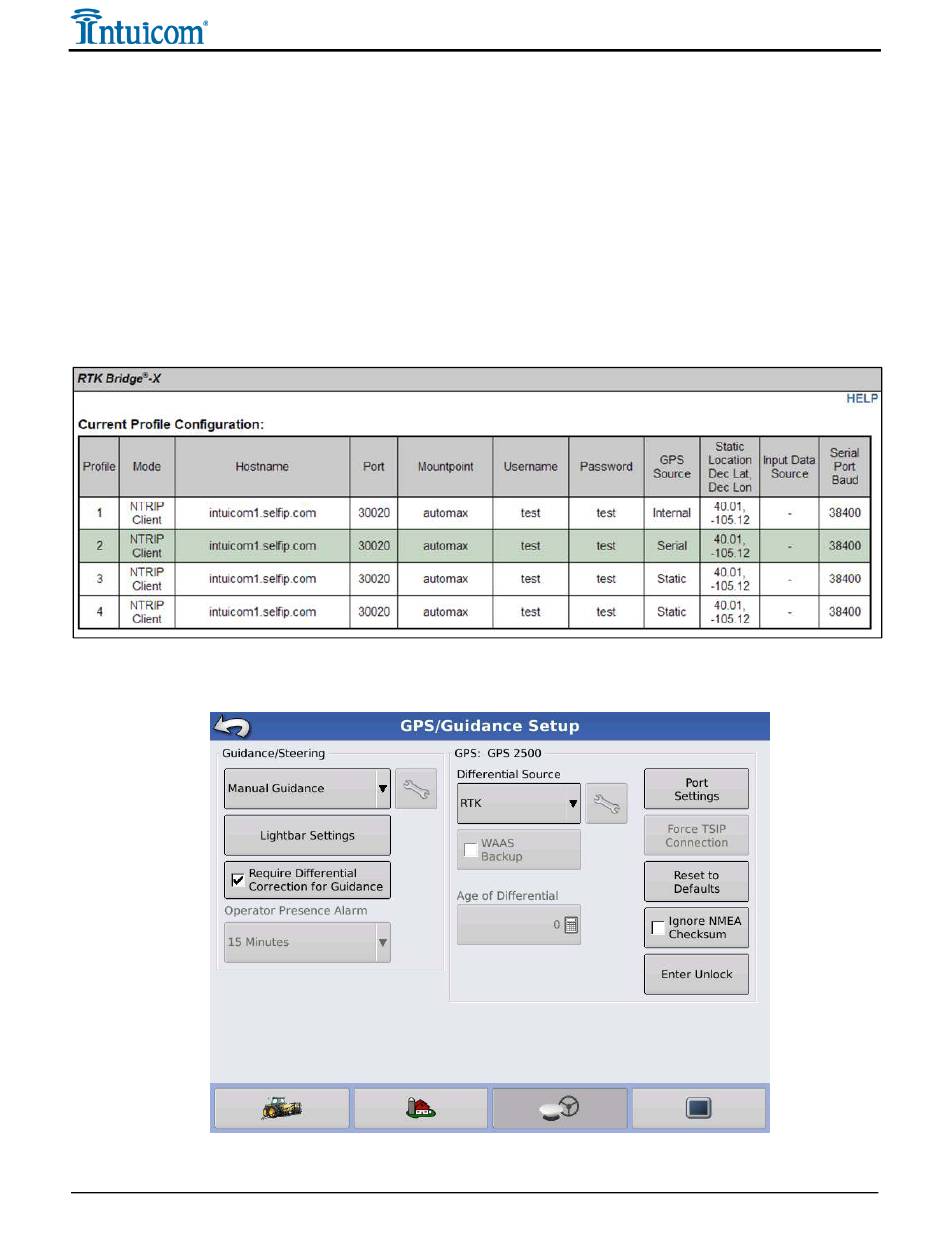

• The RTK Bridge-X should be configured to receive the GPS position from the data

port. In the Profiles page, in the profile that is to be used, under GPS Source, select

Serial. The RTK Bridge-X is now ready to receive the GPS position from the GPS

2500.

• Configure the GPS 2500 using the monitor using the following screens: Under the

GPS/Guidance Setup page, select RTK as the Differential Source

Version 1.0

Section 2: Installation Instructions

Intuicom, Inc.
