MuxLab 500088 Quick Start Manual

Overview:

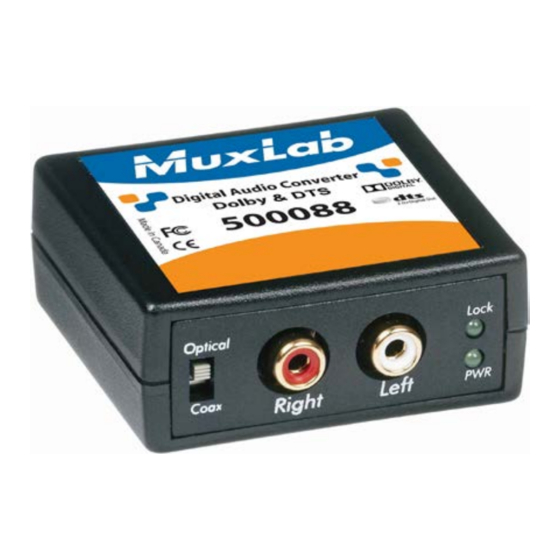

The Digital Audio Converter, Dolby & DTS
converts one LPCM-encoded, one DTS or one
Dolby Digital coaxial (S/PDIF) or optical
(TOSLINK) digital audio signal to a standard
left/right analog audio output, thereby allowing a
digital audio source such as a DVD or CD
player without RCA analog audio output to be
connected to an audio-video receiver or TV.
Applications:
Commercial and residential audio systems,
boardroom systems, collaborative PC systems,
and medical information systems.
Environment
Devices
Transmission
Signals
Connectors
Switch
Distortion
SNR
Sample Rate
Bit Depth
Power Supply
Power Consumption
Temperature
Enclosure
Dimensions
Weight
Compliance
Warranty
Order Information
© MuxLab Inc. 2015
Digital Audio Converter, Dolby & DTS

Features:

•
Down-mixes DTS, Dolby® Digital audio to
left/right analog audio
•
Switch selects between TOSLINK and Coax
S/PDIF inputs
•
TOSLINK cable included
•
May be used with MuxLab mounting
accessories
Digital Audio, Dolby Digital, DTS or LPCM
DVD, CD Players, TV, PC, laptops.
Transparent to the user
Dolby Digital, DTS & 2 channel LPCM
One (1) Coaxial connector
One (1) TOSLINK Connector.
Two (2) RCA Connectors.
Note: Audio cables not included.
Selects between SPDIF and TOSlink
<0.001% @ 1KHz
> 90 dB (20Hz – 20 KHz)
32, 44.1, 48 and 96 KHz
24 bit S/PDIF compressed & uncompressed bit stream
One (1) 110-240V/5VDC power supplies with interchangeable
blades
2.05 Watt
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
ABS fire retardant plastic
2.4" x 2.25" x 1.0" (6.1 x 5.5 x 2.5 cm)
1.0 lb (0.45 kg)
Regulatory: FCC, CE, RoHS Flammability: 94V0
2 years
500088 Digital Audio Converter, Dolby & DTS (UPC:
627699000885)
