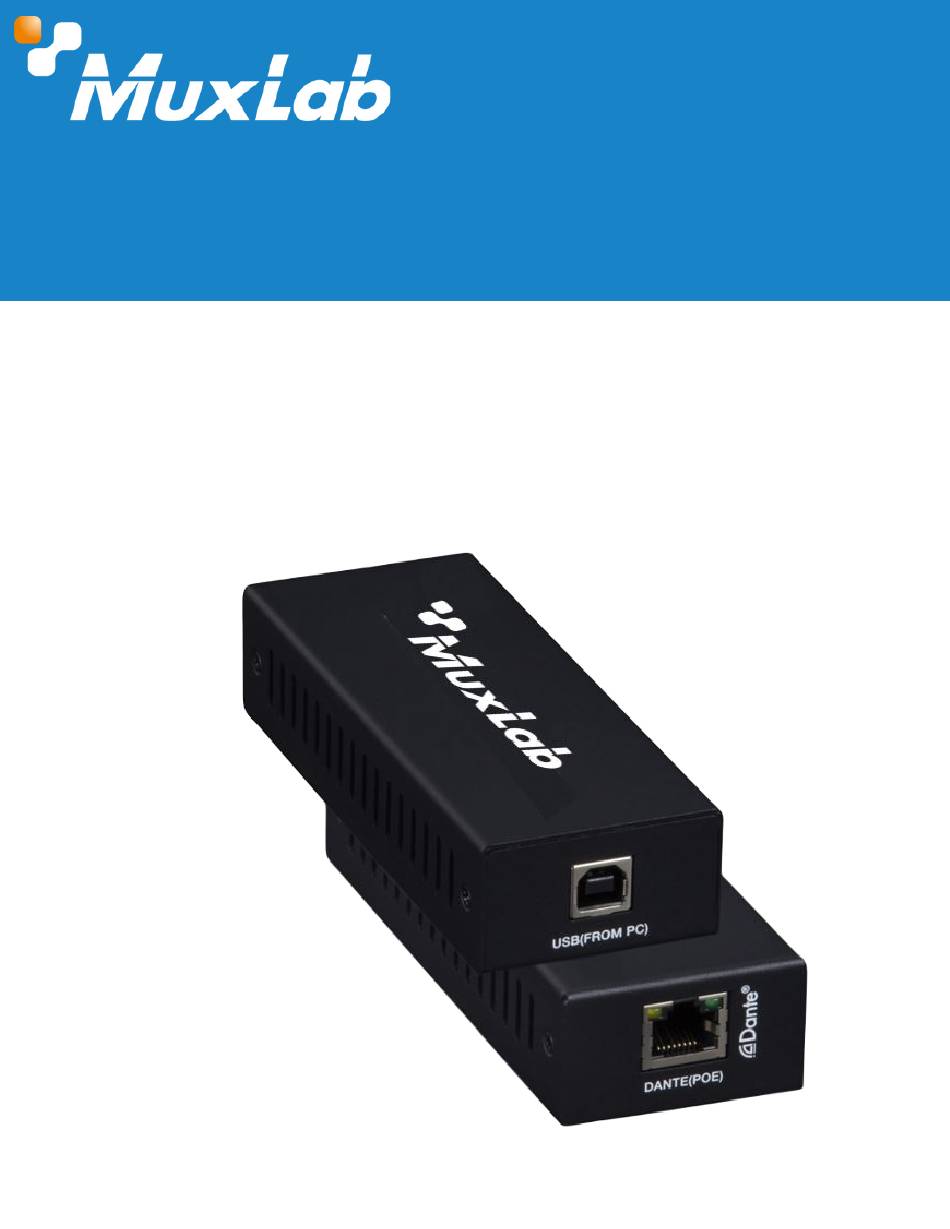

- Page 1 Dante 2-Channel USB Audio Encoder/Decoder User Manual 500550 © MuxLab Inc. 2023 94-001003-A/SE-001003-A...
- Page 2 Dante 2-Channel USB Audio Encoder/Decoder Table of Contents 1. Safety Precautions..............................3 2. Introduction................................4 3. Features..................................4 4. Package Contents..............................4 5. Specifications................................5 6. Operation Controls and Functions........................6 8. Application Diagram...............................7 © MuxLab Inc. 2023 94-001003-A/SE-001003-A...
- Page 3 All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice.

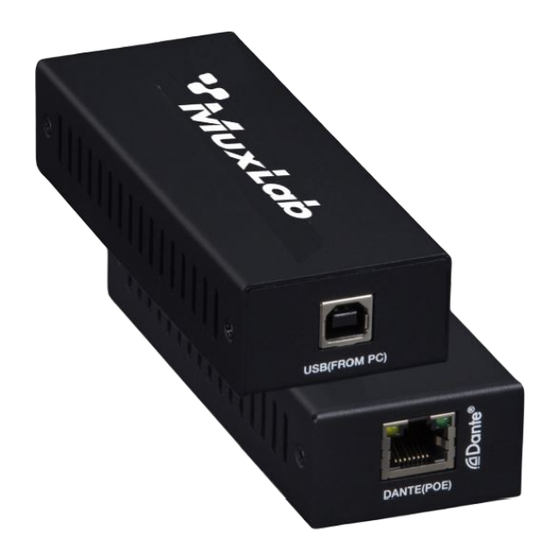

- Page 4 Dante 2-Channel USB Audio Encoder/Decoder 2. Introduction The Dante 2-Channel USB Audio Encoder/Decoder (Model: 500550) is designed to both encode 2ch USB audio to a Dante digital signal, and decode a Dante digital signal to 2ch USB audio. The unit is plug & play and can be powered using either PoE from any PoE network switch or via 5V from the USB device;...
- Page 5 32 - 104°F / 0 - 40°C Operation Temperature Storage temperature -4 - 140°F / -20 - 60°C Relative Humidity 20 - 90% RH (no condensation) Warranty 2 years Order Information 500550 Dante 2 Channel USB Audio Encoder/Decoder (UPC: 627699005507) © MuxLab Inc. 2023 94-001003-A/SE-001003-A...
- Page 6 Connect to the Network Switch through RJ45 line, supporting PD power supply. Dante PoE The green LINK LED is flashing when there is data transmission. The yellow DATA LED is always on after normal connection. © MuxLab Inc. 2023 94-001003-A/SE-001003-A...
- Page 7 Dante 2-Channel USB Audio Encoder/Decoder 7. Application Diagram 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax: Dante 2-Channel USB Audio Encoder/Decoder 514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com | 500550 salesteam@muxlab.com | www.muxlab.com Follow us:...
