Specifications
Environment
Audio HiFi Muxlab Balun User
Device Targeted
Installation of multiple audio receiver using Muxlab Audio Balun
HiFi and Audio Matrix.
Compatible TX Unit
500210, 500028
500219, 500028
Compatible RX Unit
Compatible mounting
M500902, M500900, M500910, M500915
hardware
Cabling Requirement
Any 4-pair straight cable Cat5, 5E or 6 UTP.
Connectors
Four RJ45 connectors.
RJ45 Pin Configuration
Pin 1+2, 3+6 for audio
Maximum distance
Total distance (all length must be added): 3250ft (1km)
Temperature
Operating: -40° to 60°C (-40° to 140°F)
Storage: -40° to 85°C (-40° to 185°F)
Humidity
Maximum 95% (non-condensing)
Enclosure
ABS UL94HB fire retardant plastic
6 x 5.5 x 2.5 cm (2.4" x 2.25" x 1.0")
Dimensions
Weight
50g (2 oz.)
Warranty
Lifetime
Order Information
M500044 Stereo Analog Audio Splitter
© MuxLab Inc.
94-000787-A

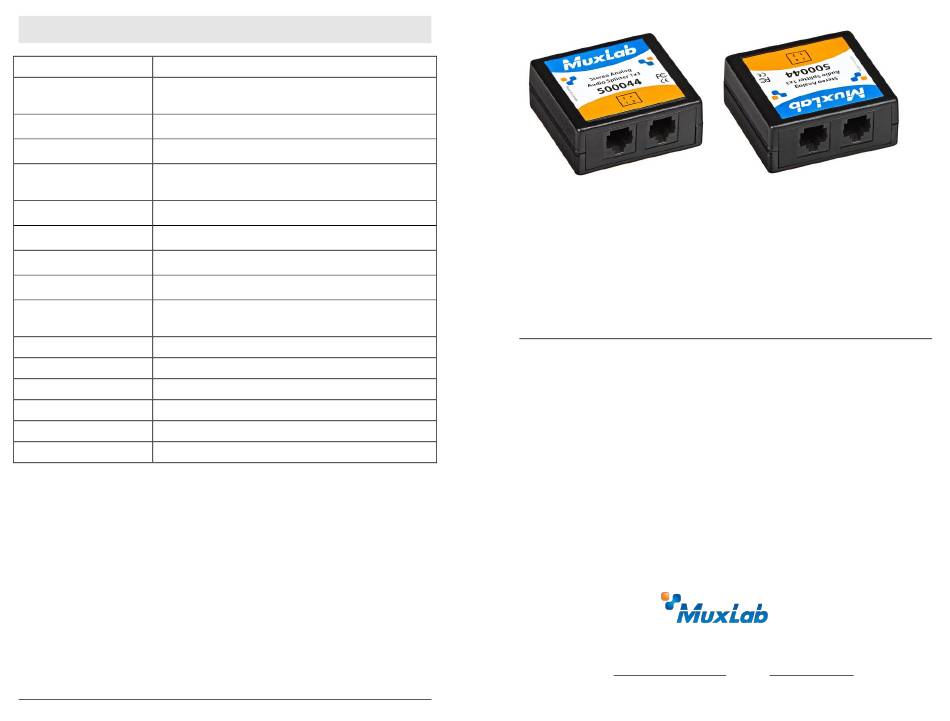

ANALOG STEREO AUDIO
SPLITTER 1X3
500044
Quick Installation Guide
Overview
The Analog Stereo Audio Splitter allows one analog source using either the Muxlab
analog audio balun (500028) or Muxlab Audio Matrix Switch (500210) to be connected
passively to up to three receivers using Muxlab's Analog Audio Balun (500028) over
CAT 5e/6 cabling.
Applications
Installation of multiple audio receiver using Muxlab Audio Balun HiFi, Audio Matrix
and Balun Amplifier.
8495 Dalton Rd, Montreal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
Fax: (514) 905-0589
URL: www.muxlab.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MuxLab 500044
Summary of Contents for MuxLab 500044
- Page 1 ABS UL94HB fire retardant plastic 6 x 5.5 x 2.5 cm (2.4” x 2.25” x 1.0”) Dimensions The Analog Stereo Audio Splitter allows one analog source using either the Muxlab analog audio balun (500028) or Muxlab Audio Matrix Switch (500210) to be connected Weight 50g (2 oz.)
- Page 2 Use a dedicated 4-pair Cat5e/6 cable between the source and the receiver balun. A patch If you still can’t diagnose the problem, please call MuxLab Customer Technical Support at panel can also be used. 877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
