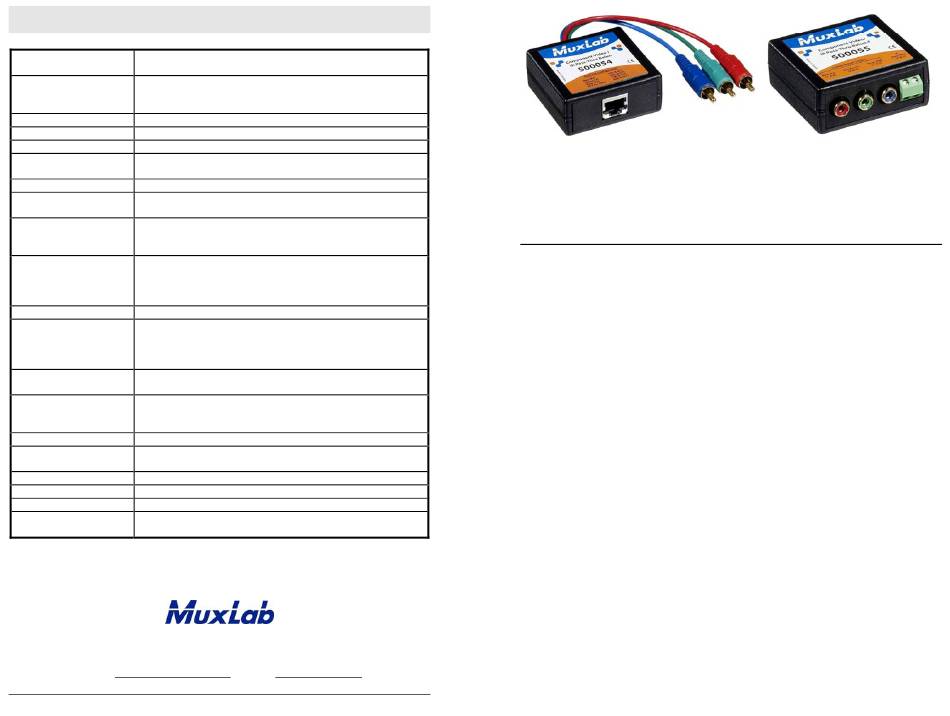

MuxLab 500054 Quick Installation Manual

Specifications
Environment Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p,
1080i/p. IR-emitter pass-through.
DVD players, satellite receivers, plasma displays, projectors, monitors,
Devices
up-converters, amplifiers, switchers, home theatre and other equipment
supporting HDTV component video and/or IR.
Transmission Transparent to the user
Bandwidth Video: 60 MHz, 3 dB roll off
Maximum Input 1.1 Vp-p
Insertion Loss per pair 0.1 dB for 0.1 MHz
Gradually increasing to 3.0 dB over the frequency range
Return Loss Greater than 15 dB over the frequency range
Common Mode Rejection -55 dB max.
Ratio (CMRR)
Max. Distance Color via 480i/p: 1,000 ft (305 m)
Cat 5E/6 UTP/STP Cable 720p and 1080i/p: 500 ft (152 m)
IR emitter: See IR vendor specs
24 AWG or lower solid copper twisted pair wire
Cable:
Cat 5E/6 UTP/STP Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Cable: Coax Impedance: 75 ohms at 1 MHz
Connectors 500054: Three RCA-M connectors: Green (Y), Blue (Pb) , Red (Pr)
500055: Three RCA-F connectors: Green (Y), Blue (Pb) , Red (Pr)
One (1) 2-pole terminal block for IR-emitter pass-through
RJ45S for twisted pair
Pin Configuration Red (Pr): Pins 7(R) & 8(T)
Reverse polarity sensitive Blue (Pb): Pins 1(R) & 2(T)
Temperature Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
ABS fire retardant plastic
Enclosure
Dimensions 500055: 2.40" x 2.25" x 1.00" (6.10 x 5.72 x 2.54 cm)
500054: plus 6" (15 cm) cable lead for video
2.9 oz (81 g)
Weight
Regulatory FCC, CE, RoHS
Warranty Lifetime
Order Information 500054 Component Video/IR Pass-Thru Balun, M
500055 Component Video/IR Pass-Thru Balun, F
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Green (Y): Pins 3(R) & 6(T)
IR Pass-Thru: Pins 4(R) & 5(T)
Fax: (514) 905-0589
URL: www.muxlab.com
94-000625-B SE-000606-B

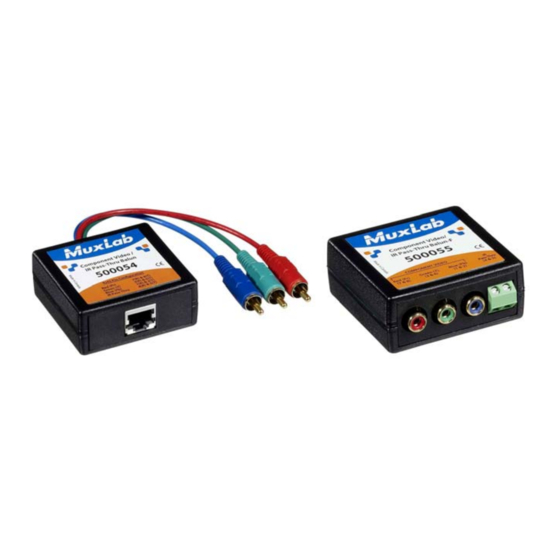

Component Video / IR Pass-Thru Balun
500054, 500055
Quick Installation Guide
Overview
The Component Video/IR Pass-Thru Balun (500054, 500055) allows one component
video (YPbPr or RGB) signal and one IR-emitter signal to be transmitted via a cost-
effective unshielded twisted pair (UTP) cable.
Used in pairs, the Component Video/IR-Pass-Thru Balun supports 480i/p, 720p and
1080i/p resolution for hi-definition (HDTV) video applications.
The product allows four coaxial cables to be replaced by one Category 5E/6 twisted pair
cable allowing standard structured cabling techniques to be used for more efficient
cabling.
