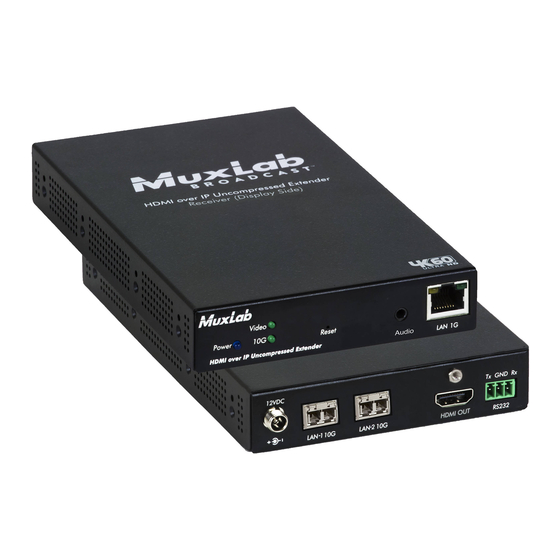

MuxLab 500774 Operation Manual

Hdmi 4k/st2110 over ip uncompressed gateway converter
Hide thumbs Also See for 500774:
Table of Contents

Advertisement

Quick Links

Download this manual

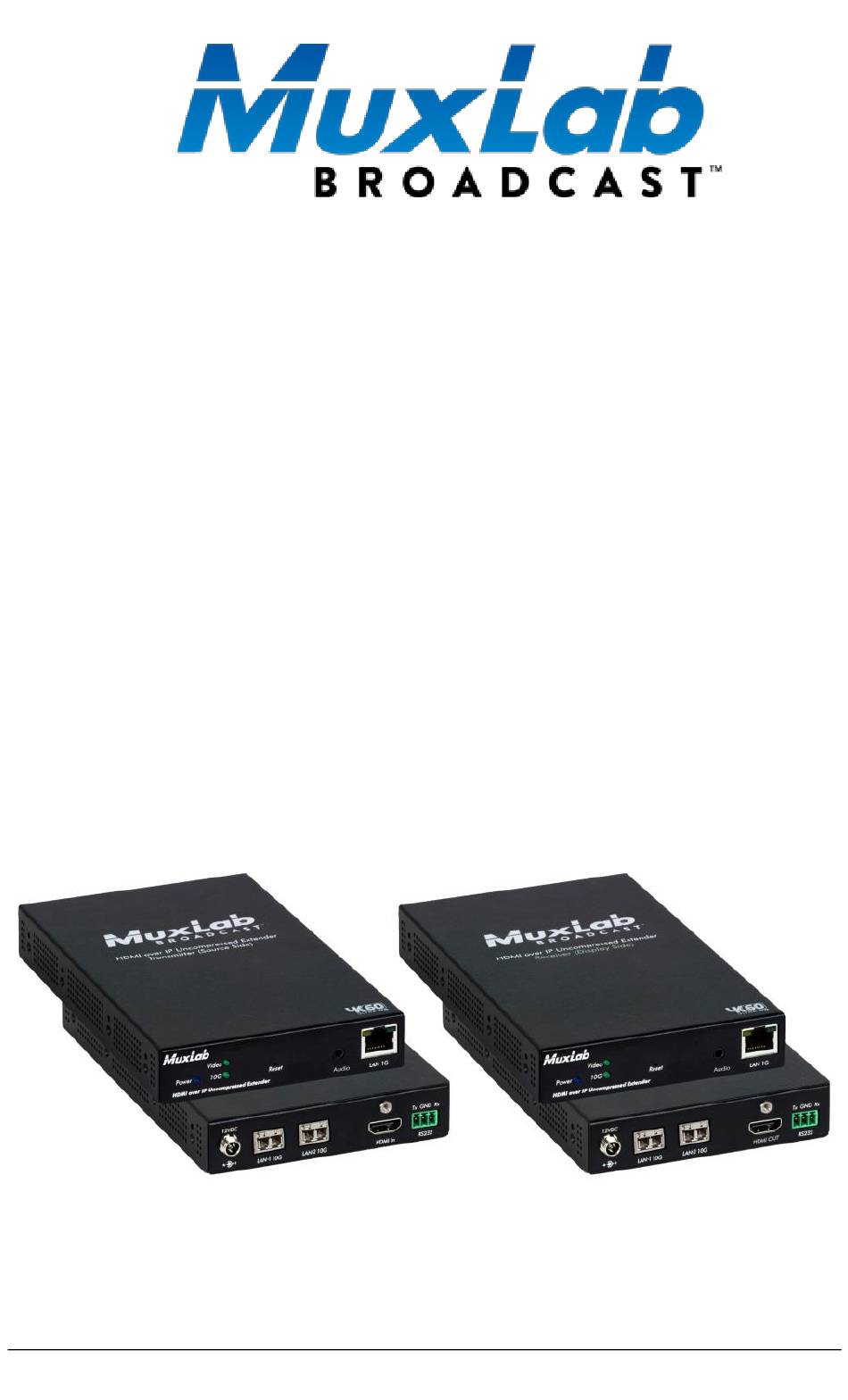

HDMI 4K/ST2110 Over IP
Uncompressed Gateway
Converter
Operation Manual
500774
©MuxLab Inc. 2020
94-000889-B/SE-000889-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500774 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MuxLab 500774

Summary of Contents for MuxLab 500774

  • Page 1 HDMI 4K/ST2110 Over IP Uncompressed Gateway Converter Operation Manual 500774 ©MuxLab Inc. 2020 94-000889-B/SE-000889-B...
  • Page 2 Trademarks: MuxLab Broadcast is a registered trademark of MuxLab Inc. © MuxLab Inc. 2020...

  • Page 3: Table Of Contents

    Specifications ..........7 Currently Supported Resolutions ....8 Managing the 500774 ........9 Web interface ..........9 2.1.1 Configuring the 500774-TX ......9 2.1.2 Transmitter System Info Page ......9 2.1.3 Transmitter Media Page ....... 11 2.1.4 Transmitter Settings Page ......13 2.1.5 Configuring the 500774-RX ......

  • Page 4: Product Overview

    LC connectors may also be used at up to 985ft (300m). A second Media/Data port is provided and can be used to support ST-2022-7 Redundancy (Seamless Protection Switching), however a second MuxLab SFP MM fiber module (model: 500970-MM) must be purchased separately for the second Media/Data port per device.
  • Page 5 HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual Figure 2b: Application Diagram with redundancy (without Fault) Figure 3c: Application Diagram with redundancy (with Fault) © MuxLab Inc. 2020...

  • Page 6: Applications

    HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual Applications The 500774 is an ideal solution for ST-2110 HDMI/IP environments. It allows broadcasters the ability to have a single IP infrastructure rather than two different ones. The 500774 applications include commercial broadcast AV systems, news/sports/TV stations and movie networks.

  • Page 7: Specifications

    HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual Specifications The following are the 500774 specifications. Environment HDMI 1.4 Devices Cameras, mixers, media players, monitors, TV, PC, laptops, servers supporting HDMI. Signals Up to HDMI 1.4 Connectors/Switches One (1) HDMI connector Two (2) SFP Cage Connectors for AV Media/Data connected to 10G Ethernet Switch ports (supports ST-2022-7 Redundancy) –...

  • Page 8: Currently Supported Resolutions

    HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual Currently Supported Resolutions The following are the currently 500774 supported Video resolutions. Color Color 1080p 1080i 720p Depth Space 8 bit YCbCr 444 YCbCr 422 10 bit YCbCr 444 YCbCr 422 Legends: V –...

  • Page 9: Managing The 500774

    DHCP. If no DHCP is available on your network, both the TX and RX will default to a static IP Address of 192.168.168.64 for the TX, and 192.168.168.67 for the RX. To be able to log in to the 500774 Web interface, your computer has to be in the same subnet. 2.1.1 Configuring the 500774-TX This section will describe how to configure the unit using the Web interface.
  • Page 10 HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual Figure 2: 500774-TX System Info Page © MuxLab Inc. 2020...

  • Page 11: Transmitter Media Page

    HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual 2.1.3 Transmitter Media Page The Media Page contains both the video and audio settings. See example below. Figure 3: 500774-TX Media Settings Page © MuxLab Inc. 2020...
  • Page 12 Operation Manual Force ST2110 to 4:2:2 Note: The 500774 Tx unit contains a 422 Converter that converts RGB or YCbCr 4:4:4 to YCbCr 4:2:2 10 bit Video Format. In the Media Setting Page this option can be disabled. By default, 4:2:2 Converter is enabled.

  • Page 13: Transmitter Settings Page

    HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual 2.1.4 Transmitter Settings Page This page allows the user to set various parameters of the 500774-TX. See example below. Figure 4: 500774-TX Settings Page © MuxLab Inc. 2020...
  • Page 14 Network Settings The user may set the network parameters of the 500774-TX for the two (2) 10G Media/Data ports (ports: Fiber 1 & Fiber 2 is installed) and the one (1) 1G Management/Control port (port: LAN), including enabling or disabling DHCP, setting a static IP Address, Netmask Address, and Gateway Address, and then pressing on “Apply”.

  • Page 15: Configuring The 500774-Rx

    The user may perform a factory reset, by pressing on the “Reset” button. This will return the unit to the original MuxLab factory settings, and all user settings and data will be lost. Allow the process to complete without interruption.

  • Page 16: Receiver Media Page

    Clicking on the Submit button will allow you to apply the new changes, while clicking on Cancel will discard any changes. 2.1.8 Receiver Settings Page This page allows the user to set various parameters of the 500774-RX. See example below. © MuxLab Inc. 2020...
  • Page 17 Web site to download the required files: https://muxlab.com/support?section=software-and-firmware The 500774-RX has both an FPGA and MCO (Micro-Controller Unit), and each has its own firmware. The user may upgrade the FPGA and MCU firmware from this page as follows:...
  • Page 18 DHCP, setting a static IP Address, Netmask Address, and Gateway Address, and then pressing on “Apply”. The 500774-RX default IP addresses are set to DHCP. If no DHCP is available on your network the RX will default to the following static IP Addresses: •...

  • Page 19: 500774 Restapi

    Operation Manual 500774 RestAPI In addition to the Web interface, the 500774 can also be managed through a RestAPI via the 1G Ethernet port (port: LAN). This section describes the API commands supported on the 500774. It is intended for users with a programing background.
  • Page 20 "sfp2_mac":"00:04:25:1C:12:02", "sfp2_ip":"192.168.168.66", "ptpOnSfp":0, "audioStatus":1, "videoStatus":1, "reset": 0, "reboot": 0, "forceStream": 1, "isTx": 1, "mediaMode": "None" Enter [500774-TX IP Address]/api/video for “Video API” "fps": "60000/1001", "sessionID": "11-497371921", "depth": 10, "TTL": 32, "sdp": "api/video/sdp", "intlce": 3, "width": 1920, "height": 1080, "colorSpace": "YCbCr-4:2:2", "payloadType": 96,...
  • Page 21 "payloadType":97, "chn5Remap":5, "chnReal":2, "pktSize":"1ms", "sdp":"api/audio/sdp", "chn6Remap":6, "chn2Remap":2, "chn1Remap":1, "chnAlloc":82, "dest_port2":48011, "TTL":32, "dest_port1":48010, "channels":1 Enter [500774-TX IP Address]/api/sdp for “SDP API” "port": 80, "uri": "api/video/sdp", "ip": "192.168.168.190", "media": "video" "port": 80, "uri": "api/audio/sdp", "ip": "192.168.168.190", "media": "audio" © MuxLab Inc. 2020...
  • Page 22 "mClockAccuracy": "0xfe", "mClockClass": 248, "portId": "2e-3b-ef-ff-fe-5a-1d-78", "masterID": "00-26-22-ff-fe-42-f4-08", "offsetScaledLogVariance": "0x ff", "clockClass": 248, "clockAccuracy": "0xfe" Enter [500774-TX IP Address]/api/others for “Other (remaining) API” "debugCmd": 1, "debugRest": 1, "debugSdp": 1, "authen": 1, "sdpc": [ "SDP Client is not available on TX"...
  • Page 23 "name": "muxPoll", "PID": 367 500774-RX RestAPI: The following screen shots show the RestAPI for the 500774-RX (Receiver): The RestAPI commands can be accessed directly from a browser by entering the 500774-RX IP Address and RestAPI command as follows: [500774-RX IP Address]/api/[RestAPI Command] Enter [500774-RX IP Address]/api/ to obtain a list of RestAPI Commands "system",...
  • Page 24 HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual "statistics", "others" Enter [500774-RX IP Address]/api/system for “System API” "reboot": 0, "fpgaVer": "01.01", "mediaMode": "SDP", "sfpCfg": 2, "reset": 0, "forceStream": 1, "blinkLed": 0, "fpgaBuilt": "Jun 22 2020 09:55", "model": "500774", "ctrl_mac": "86:68:56:D3:99:33", "product": "HdmiOverIP-774",...
  • Page 25 "sessionID": "11-1186003140", "colorSpace": "YCbCr-4:2:2", "intlce": 3, "height": 1080, "width": 1920, "dest_ip1":"239.100.1.1", "dest_ip2":"239.100.1.1", "dest_port2":48001, "dest_port1":48000, "local_port2":48001, "local_port1":48000 Enter [500774-RX IP Address]/api/audio for “Audio API” "sessionID": "10-1186003140", "TTL": 32, "depth": 24, "sdp": "api/audio/sdp", "channels": 2, "payloadType": 97, "pktSize": "1ms", "sample": "48000", "dest_ip2":"239.100.1.2", "dest_ip1":"239.100.1.2", "dest_port2":48011,...
  • Page 26 HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual "uri": "api/audio/sdp", "ip": "192.168.168.190", "port": 80 Enter [500774-RX IP Address]/api/security for “Security API” "get_status": 0, "get_id": "", "set_key": "" Enter [500774-RX IP Address]/api/ptp for “PTP API” "mPriority2": 255, "clockAccuracy": "0x 0", "mPriority1": 255, "mClockAccuracy": "0xff",...
  • Page 27 "sfp2AudioPktAbs":0, "sfp1AudioPktPerSec":0, "sfp2VideoPktAbs":0, "sfp1VideoPktPerSec":0, "clearStat":0, "sfp2AudioPktMs":0, "sfp2VideoPktPerSec":0, "sfp1AudioPktMs":0 Enter [500774-RX IP Address]/api/others for “Other (remaining) API” "sdpc": [ "uri": "api/audio/sdp", "headerErrs": 0, "pkts": 261, "msg": "is in state of 'CONNECTED', new request is ignored", "reqs": 141, "dataErrs": 0, "fails": 0 "uri": "api/video/sdp",...
  • Page 28 HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual "PID": 344, "name": "muxLed" "PID": 343, "name": "muxManager" "PID": 342, "name": "muxBroker" "PID": 341, "name": "muxPoll" "PID": 340, "name": "muxSdpRecv" "PID": 339, "name": "muxSdpMngr" "debugRest": 1 © MuxLab Inc. 2020...

  • Page 29: Frequently Asked Questions

    500774. What is the default IP address of the 500774? The 500774-TX default IP addresses are set to DHCP. If no DHCP is available on your network the TX will default to the following static IP Addresses: •...
  • Page 30 The 500774-RX does not display video from another ST2110 manufacturer? Check media parameters and ensure you are entering the right SDP information if using this input type. If it is still not working, email the SDP file to MuxLab support. © MuxLab Inc. 2020...
  • Page 31 Need Further Help: If the above does not help you to find a solution to the issue you are experiencing please contact MuxLab Technical Support at 877-689-5228 (toll free in North America) or (+1) 514-905-0588 (International) or email to info@muxlab.com.

  • Page 32: Product Warranty Policy

    (RMA#) issued by its Customer Service Department, along with a dated proof of purchase. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent.
  • Page 33 All R.M.A.’s issued are subject to inspection by MuxLab, and will be returned to the customer if not properly packaged – units must be returned in the original container or equivalent. MuxLab will not accept any such product for repair without an authorization from its Technical Support department and without a return authorization number issued by the MuxLab Customer Service department.
  • Page 34 HDMI 4K/ST2110 Over IP Uncompressed Gateway Operation Manual MuxLab Inc. 2321 Cohen Street Montreal, Quebec Canada H4R 2N7 Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589 Toll Free (North America): 877 689-5228 URL: www.muxlab.com E-mail: info@muxlab.com © MuxLab Inc. 2020...
