Summary of Contents for MuxLab 500149
-

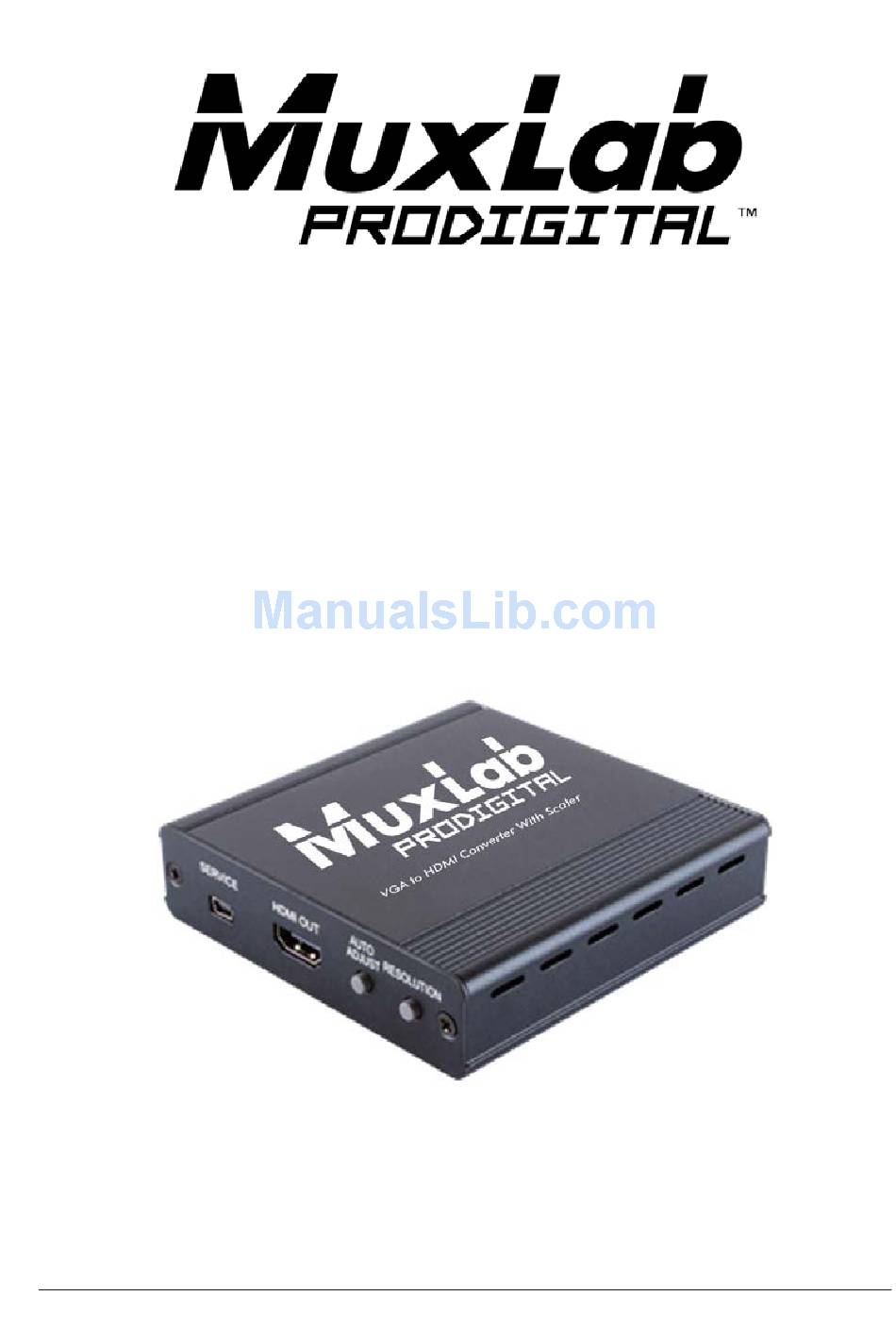

Page 1: Installation Guide

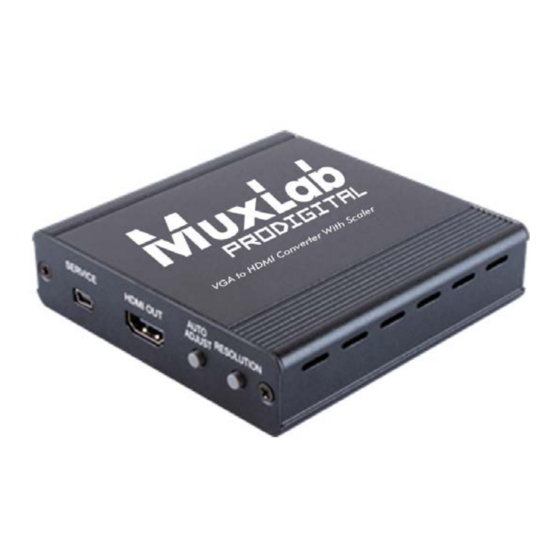

VGA to HDMI Converter with Scaler Installation Guide 500149 © MuxLab Inc. 2014 94-000781-A / SE-000781-A... -
Page 2: Revision History
To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit. REVISION HISTORY Version Date Description 2014/12/01 Release Version © MuxLab Inc. 2014... -
Page 3: Table Of Contents
4.3 Connection Procedure ..................9 4.4 Application ......................9 5. List of supported resolution ..................10 5.1 PC Input Resolution ..................10 5.2 HDMI output resolutions .................. 10 6. Troubleshooting & Maintenance ................11 Regulatory Compliance ....................12 © MuxLab Inc. 2014... -
Page 4: Introduction
One (1) Power Adapter; 5VDC, 2.6A with Interchangeable Blades for the US, the UK , Europe and Australia • One (1) Installation Guide Please confirm that the product and the accessories are all included. If not, please contact your local distributor where the unit was purchased. © MuxLab Inc. 2014... -
Page 5: Specifications
Ruggedized Aluminium Extrusion Dimensions 4.02” x 4.02” x 0.98” (102 x 102 x 25 mm) Weight 1.43 lb (0.65 kg) Compliance Regulatory: FCC, CE, RoHS Warranty 2 years Order Information 500149 VGA to HDMI Converter with Scaler © MuxLab Inc. 2014... -
Page 6: Panel Description
Press this button to select the output resolution. The device will sequentially toggle through all different output resolutions Resolution available. Press these two buttons simultaneously to switch output 720P resolution to the most common 720p resolution. © MuxLab Inc. 2014... -
Page 7: Rear Panel
AC outlet. Connect the VGA IN port to the VGA output port of your VGA IN source equipment. Connect the 3.5mm stereo input port to the analog audio Audio In stereo output port of your source equipment. © MuxLab Inc. 2014... -
Page 8: System Connection
4. System Connection 4.1 Safety Precautions The system should be installed in a clean environment with temperature and humidity levels within the specifications. All devices should be connected before powering on the product. 4.2 System Diagram © MuxLab Inc. 2014... -
Page 9: Connection Procedure
& control centers, smart homes, etc. The VGA to HDMI Converter with Scaler is used to solve odd VGA resolutions to display on a standard HDMI display. © MuxLab Inc. 2014... -
Page 10: List Of Supported Resolution
1280 x 800 @60Hz 1440 x 900 @60Hz 1400 x 1050 @60Hz 1600 x 900 @60Hz 480i @60Hz 480p @60Hz 720p @60Hz 1080i @60Hz 1080p @60Hz 576i @50Hz 576p @50Hz 720p @50Hz 1080i @50Hz 1080p @50Hz © MuxLab Inc. 2014... -
Page 11: Troubleshooting & Maintenance
720P resolution you can now select a resolution supported by the product If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International). © MuxLab Inc. 2014... -
Page 12: Regulatory Compliance
All brand names and product names used in this document are trademarks, or registered trademarks of their respective holders. 8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: videoease@muxlab.com URL: www.muxlab.com © MuxLab Inc. 2014...
