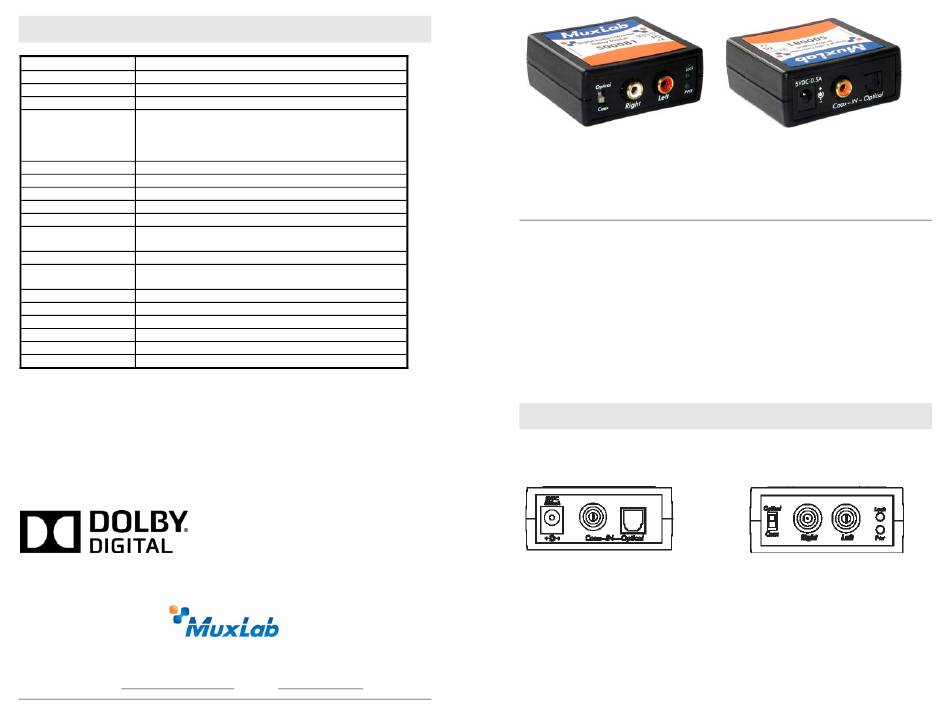

MuxLab 500081 Quick Installation Manual

Specifications

Environment Digital Audio, Dolby Digital or LPCM
Devices DVD, CD Players, TV, PC, laptops.
Transparent to the user
Transmission
Dolby Digital & 2 channel LPCM
Signals
One (1) Coaxial connector
Connectors
One (1) TOSLink Connector.
Two (2) RCA Connectors.
Note: Audio cables not included.
Switch Selects between SPDIF and TOSlink
Distortion <0.001% @ 1KHz
SNR > 90 dB (20Hz – 20 KHz)
Sample Rate 32, 44.1, 48 and 96 KHz
Bit Depth 24 bit S/PDIF compress & uncompress bitstream
Power Supply One (1) 110-240V/5VDC power supplies with interchangeable
blades
Power Consumption 1.75 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure ABS fire retardant plastic
Dimensions 2.4" x 2.25" x 1.0" (6.1 x 5.5 x 2.5 cm)
Weight 1.0 lb (0.45 kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500081 Digital Audio Converter, Dolby Digital
Trademark acknowledgments
All products or services names mentioned in this document may be trademarks of
the companies with which they are associated. Manufactured under license from
Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc. 2012
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000721-A SE-000721-A
Digital Audio Converter, Dolby Digital
500081
Quick Installation Guide

Overview

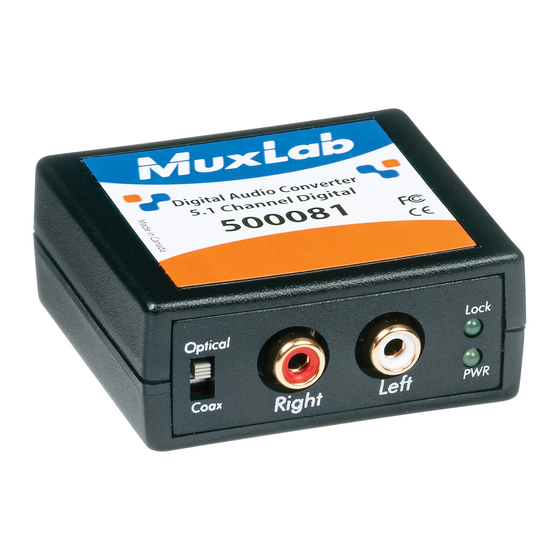

The Digital Audio Converter, Dolby Digital (500081) converts one LPCM-encoded or
one Dolby Digital coaxial (S/PDIF) or optical (TOSLink) digital audio signal to a
standard left/right analog audio output, thereby allowing a digital audio source such as a
DVD or CD player without RCA analog audio output to be connected to an audio-video
receiver or TV.

Applications

Applications include commercial and residential audio systems, boardroom systems,
collaborative PC systems, and medical information systems.

Installation

1. Identify the connectors on the Digital Audio Converter as indicated on the product
panels.
