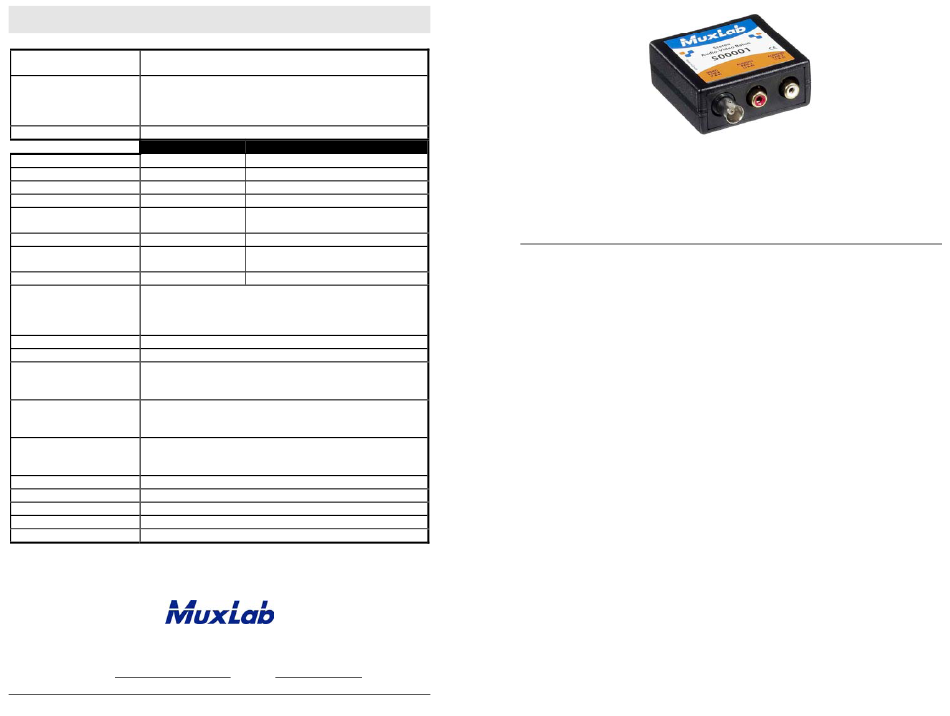

MuxLab 500001 Quick Installation Manual

Specifications
Environment Composite video and unbalanced audio for the consumer and
commercial market.
Devices DVD, VCR, camcorders, audio receivers, audio amplifiers, AV
switchers, splitters, AV mixers and other analogue audio-video
equipment featuring coaxial input or output with BNC or RCA
connectors.
Transparent to the user
Transmission
Video
Bandwidth DC to 8 MHz
Peripherals' impedance 75 ohms
1.1 Vp-p
Maximum Voltage Input
THD NA
Insertion Loss Less than 2 dB per
pair
Return Loss Better than 15 dB
Common Mode Rejection Greater than 40 dB
Ratio (CMRR)
Cat5e/6: 2,200 ft
Max. Distance
Cable: 24 AWG or lower solid copper twisted pair wire
Cat5e/6 UTP/STP Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Cable: RCA Standard audio cable terminated by RCA connectors
Cable: BNC 75-ohm coaxial cable
Connectors One (1) BNC-receptacle (includes 9" coax jumper cable)
Two (2) RCA-receptacles
One (1) RJ45 jack
Video: Pins 7(R) & 8(T)
Pin Configuration
Audio 1: Pins 1(R) & 2(T)
Audio 2: Pins 3(R) & 6(T)
Temperature Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure Fire retardant plastic
2.40" x 2.25" x 1.00" (6.10 x 5.72 x 2.54 cm)
Dimensions
Weight 4.25 oz (121 g)
Warranty Lifetime
500001
Order Information
8495 Dalton Road, Montreal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc. 2010
Audio
20 Hz to 20 kHz
Source 100 Ω Max, Receiver 10 kΩ min.
1.1 Vp-p
Less then 0.007% @ 1 kHz
Less than 2 dB per pair
NA
NA
Cat5e/6: 3250 ft

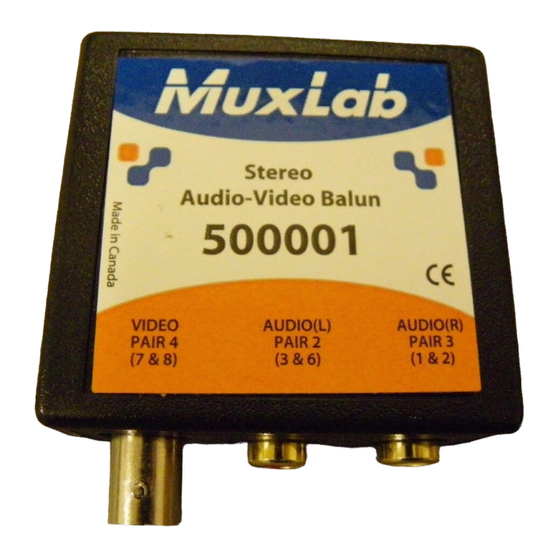

Stereo Audio-Video Balun
Fax: (514) 905-0589
URL: www.muxlab.com
94-000231-G SE-000115-G
Stereo Audio-Video Balun
500001
Quick Installation Guide
Overview
The Stereo Audio-Video Balun allows the transmission of composite baseband video
signals and audio signals via unshielded twisted pair (UTP) cables in a Structured
Cabling System. The Stereo Audio/Video Balun is used in pairs to transmit standard
NTSC, SECAM and PAL composite video. It converts a composite baseband video
(75 ohms) and stereo-audio signal from coax to UTP.
The Stereo Audio-Video Balun is connected to the structured cabling via a modular wall
jack in the work area. It is equipped with a BNC 75-ohm connector and two standard
RCA phono jacks at one end and a RJ45 jack at the other end. The 500001 has a
20 Hz- 20 kHz bandwidth for high fidelity applications.
Applications
The Stereo Audio-Video Balun is designed for use with CCTV cameras, monitors,
DVR, DVD players, cableboxes, AVR, video-conferencing, camcorders and other
composite video/audio equipment.
monitoring, video bulletin boards, financial information services, news services,
education, video training, airport displays, video capture, stock exchange, hotels and
convention centers.
Applications include: security/surveillance
