MuxLab 500021 Installation Instructions Manual

Specifications

Environment Component (YPbPr) video. Composite video.
Devices DVD, VCR, TV, satellite receivers, monitors,
switchers, home theatre and other equipment
supporting component video.
Transmission Transparent to the user.
Bandwidth Video: DC to 8 MHz.
1.1Vp-p
Maximum Input
Insertion Loss Less than 2 dB per pair over the frequency range
from DC to 8 MHz
Return Loss Greater than 15 dB over the frequency range from
DC to 8 MHz
Greater than 40 dB @ 8 MHz
Common Mode
Rejection
Max. Distance Color – Component (YPbPr): 1,000 ft (305m).
Cat 5 UTP Composite: 2200 ft (670m)
24 gauge or lower solid copper twisted pair wire
Cable – UTP
impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
Cable – BNC Impedance: 75 ohms at 1 MHz
One (1) gold-plated RCA connector
Connectors
Reverse polarity sensitive Two (2) screw terminals for twisted pair
Impedance Input: 75 ohms unbalanced (RCA connector)
Output: 100 ohms balanced UTP (screw terminals)
Operating: 0° to 55°C. Storage:-20° to 85°C.
Temperature
Humidity: up to 95%
Enclosure ABS fire retardant plastic
Dimensions 1.25" x 0.5" x 0.5" (3.2 x 1.3 x 1.3 cm)
Weight 1.5 oz (42.5gm)
Lifetime
Warranty
Order Information 500021
5450 Cote de Liesse, Montreal
Quebec, Canada, H4P 1A5
Tel.: (514) 905-0588
Fax: (514) 905-0589
Toll Free (N.Am): (877) 689-5228
E-mail: videoease@muxlab.com
URL: www.muxlab.com
94-000334-A
© MuxLab Inc.

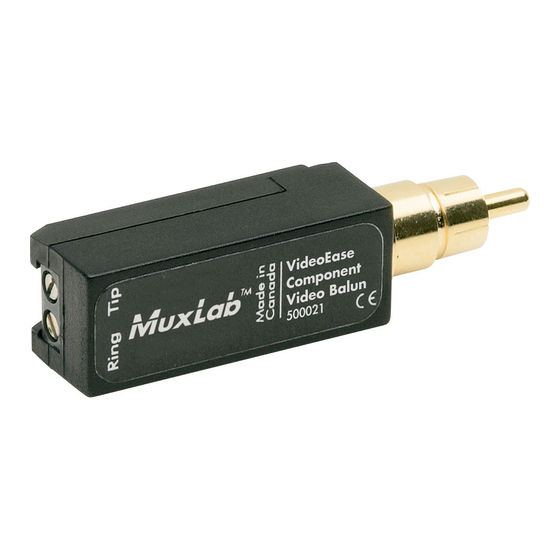

VideoEase Component Video Balun
SE-000311-A
VideoEase Component Video Balun (500021)

Installation Guide

Introduction
The VideoEase Component Video Balun allows a single component video signal
(Y, Pb, or Pr) to be transmitted via cost-effective unshielded twisted pair (UTP)
cable. Three (3) balun pairs are required for one point-to-point component (YPbPr)
video connection. The product allows three coaxial cables to be replaced by one
Category 5 twisted pair cable allowing standard structured cabling techniques to be
used for neater and more streamlined cabling. The Component Video Balun is
compact enough to allow three (3) units to be connected side by side on the back of
the component video equipment.
Installation
Component Video (YPbPr) Connection:
Three (3) pairs of Component Video Baluns (six baluns) are needed to complete one
component (YPbPr) connection via Cat5 twisted pair. To install the VideoEase
Component Video Baluns, perform the following steps:
1. Identify the pin configuration of the baluns. One twisted pair is required. The
Component Video Balun is reverse polarity sensitive. Please ensure that wiring
is straight-through (Ring to Ring, Tip to Tip)
Blue/White
RCA male
Tip
Twisted pair cable
Component Video Balun
Ring
(500021)
White/Blue
Top View (cover off)
2. The Component Video Balun works in pairs. For each component signal (Y or
Pb or Pr), plug one balun into the component video output (coaxial) of the
video source.
White/Blue
Ring
1 pair
Tip
Blue/White
