- Page 1 HDMI 2.0 to 12G-SDI Video Converter User Manual 500741 © MuxLab Inc. 2024 94-001038-A/SE-001038-A...
-
Page 2: Table Of Contents
7.2 SDI Mode (Dip Switch 2 & 3)........................7 8. Software Interface..............................8 8.1 Software Control..............................8 8.2 Software Settings..............................8 8.3 Video Settings..............................9 8.4 Audio Settings..............................9 8.5 EDID Settings..............................10 8.6 Firmware Upgrade............................10 8.7 General Settings..............................11 9. Application Diagram.............................12 © MuxLab Inc. 2024 94-001038-A/SE-001038-A... -
Page 3: Safety Precautions
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice. -
Page 4: Introduction

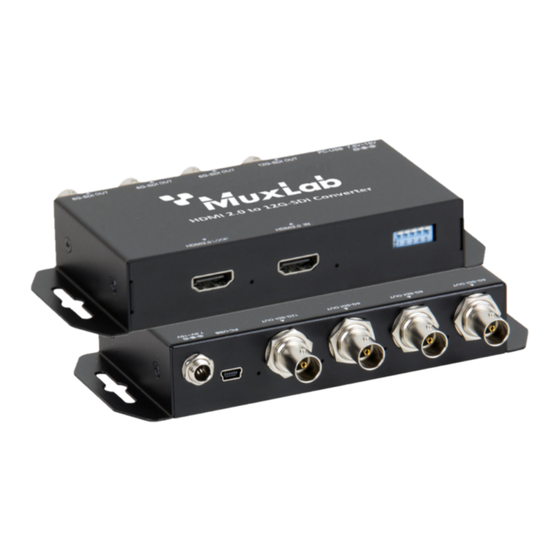

HDMI 2.0 to 12G-SDI Video Converter 2. Introduction The HDMI 2.0 to 12G-SDI (Model 500741) is a product developed for the high quality conversion of video signal from HDMI 2.0 to 12G-SDI. It performs high-quality, low-delay video transmission, features one HDMI 2.0 input and HDMI 2.0 local loop out, and up to 4 SDI outputs: one 12G-SDI output and three 6G-SDI outputs. -
Page 5: Specifications
8-Channel, 24-bit, up to 192 kHz SDI Audio Output 8-Channel, 24-bit, 48 kHz Mechanical Housing Black Metal Enclosure Dimensions 153 X 80.7 X 26mm 2 years Warranty Order Information 500741 HDMI 2.0 to 12G-SDI Video Converter (UPC: 627699007419) © MuxLab Inc. 2024 94-001038-A/SE-001038-A... -
Page 6: Hardware Interface
6.2 Rear Panel Locking 12VDC Power interface. Mini-USB connector to connect a PC running the MuxLab SDI Manager Software. Video Output signal interface: 4 x Output SDI High Speed BNC connectors. One (1) 12G‑SDI output and three (3) 6G‑SDI outputs. -
Page 7: Dip Switch
HDMI 2.0 to 12G-SDI Video Converter 7. Dip Switch 7.1 Control (Dip Switch 1) Control Pin1 7.2 SDI Mode (Dip Switch 2 & 3) SDI Mode Pin2 Pin3 Single Link Dual Link Quad Link Dip Switch 4 & 5: N/A © MuxLab Inc. 2024 94-001038-A/SE-001038-A... -
Page 8: Software Interface
8 Software Interface The HDMI 2.0 to 12G-SDI Video Converter can be used right out of the box, without the use of any software. However, to use the product to its full capability, you must use the MuxLab SDI Manager software. -
Page 9: Video Settings
You can choose the Link mode: SL for Single Link mode, DL for Dual Link mode and QL for Quad Link mode. Clicking on the arrow will toggle all available modes. 8.4 Audio Settings Under the Audio tab you will have the possibility to mute or unmute the Audio. © MuxLab Inc. 2024 94-001038-A/SE-001038-A... -
Page 10: Edid Settings
An EDID file can also be uploaded. 8.6 Firmware Upgrade The F/W Update tab will display the menu for upgrading the device’s firmware. To upgrade the firmware, three files could be provided depending on what need to be updated. © MuxLab Inc. 2024 94-001038-A/SE-001038-A... -
Page 11: General Settings
·After all the three files have been uploaded successfully, power cycle the device. 8.7 General Settings The Setting Tab can be used to perform a hardware reset. The device will reboot for a few seconds and will reconnect to the software. © MuxLab Inc. 2024 94-001038-A/SE-001038-A... -
Page 12: Application Diagram
HDMI 2.0 to 12G-SDI Video Converter 9. Application Diagram 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada HDMI 2.0 to 12G-SDI Video Converter Tel: 514-905-0588 | Fax: 514-905-0589 | Toll free: 1-877-689-5228 500741 info@muxlab.com | salesteam@muxlab.com | www.muxlab.com Follow us: 94-001038-A/SE-001038-A...
