Summary of Contents for MuxLab 500743
- Page 1 HDMI to 3G-SDI Converter with Scaling User Manual 500743 © MuxLab Inc. 2024 94-001040-A/SE-001040-A...
-
Page 2: Table Of Contents
10. LED Mode..................................9 11. Firmware Mode................................9 12. Default Mode................................9 13. Software Interface...............................10 13.1 Software Download.............................10 13.2 Software Settings............................10 13.3 Video Settings..............................11 13.4 Audio Settings..............................11 13.5 Processor Settings............................12 13.6 Firmware Upgrade............................13 13.7 General Settings............................13 14. Application Diagram............................14 © MuxLab Inc. 2024 94-001040-A/SE-001040-A... -
Page 3: Safety Precautions
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice. -
Page 4: Introduction

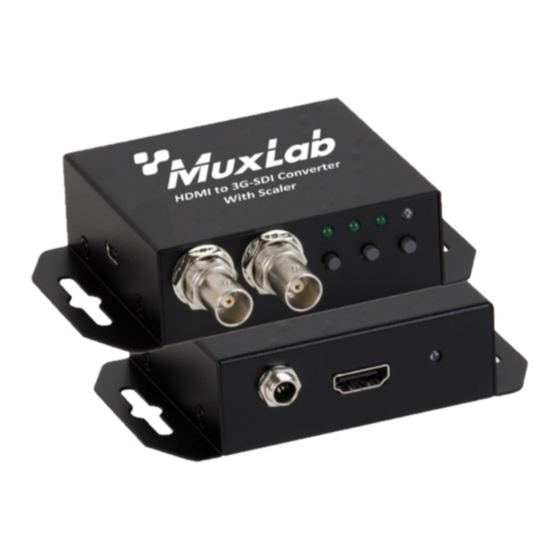

HDMI to 3G-SDI Converter with Scaling 2. Introduction HDMI to 3G-SDI Converter with Scaler (Model 500743) is an HDMI to 3G-SDI Processor with Video Scaling, Amplification and Re-clocking Technology. It performs high-quality, low-delay video auto format detection, video signal re-clocking, and video signal amplification for transmission over a long distance. -
Page 5: Specifications
8-Channel, 24-bit, up to 192 kHz SDI Audio Output 8-Channel, 24-bit, 48 kHz Mechanical Housing Black Metal Enclosure 153 X 80.7 X 26mm Dimensions 2 years Warranty 500741 HDMI 2.0 to 12G-SDI Video Converter (UPC: 627699007419) Order Information © MuxLab Inc. 2024 94-001040-A/SE-001040-A... -
Page 6: Hardware Interface
Video Input signal interface HDMI source. Power and Lock LED display: Green for Signal Locked & Red for Signal Unlocked 6.3 Side Panel Mini-USB connector to connect a PC running the MuxLab SDI Manager Software. © MuxLab Inc. 2024 94-001040-A/SE-001040-A... -
Page 7: Switch Format
HDMI to 3G-SDI Converter with Scaling 7. Switch Format Chick the button 1, the box will be setting to Output Format Mode and change Frame Rate by button 2 and 3. © MuxLab Inc. 2024 94-001040-A/SE-001040-A... -
Page 8: Aspect Ratio Mode
8. Aspect Ratio Mode Check the button 3 , the box will be setting to Aspect Ratio Mode 9. Function Button Mode Hold on the button 3 until show the Func button Mode LED indicate: © MuxLab Inc. 2024 94-001040-A/SE-001040-A... -
Page 9: Led Mode
Hold on the 3 and 2 button, the display is showed firmware version on display of left upper. 12. Default Mode Press all button (1, 2 and 3) at the same time, the box auto reset to default. © MuxLab Inc. 2024 94-001040-A/SE-001040-A... -
Page 10: Software Interface
13. Software Interface The HDMI to 3G-SDI Converter/Scaler can be used right out of the box, without the use of any software. However, to use the product to its full capability, you must use the MuxLab SDI Manager software. The MuxLab SDI Manager software can be used to control and manage the HDMI to 3G-SDI Converter/Scaler. -
Page 11: Video Settings
Screen Display (OSD), Screen display when No Signal (Blue, Black Disable output), Function button (Lock, Unlock), pattern mode (various patterns). 13.4 Audio Settings Under the Audio tab you will have the possibility to mute or unmute the Audio. © MuxLab Inc. 2024 94-001040-A/SE-001040-A... -
Page 12: Processor Settings
The ROI tab will provide the possibility to adjust the image dot-by-dot, or full-screen; horizontal and vertical adjustments. The OSD Text tab will provide the possibility to enable On-Screen Display and define the text to be displayed. © MuxLab Inc. 2024 94-001040-A/SE-001040-A... -
Page 13: Firmware Upgrade
After all the three files have been uploaded successfully, power cycle the device. 13.7 General Settings The Setting Tab can be used to perform a hardware reset. The device will reboot for a seconds will reconnect to the software. © MuxLab Inc. 2024 94-001040-A/SE-001040-A... -
Page 14: Application Diagram
HDMI to 3G-SDI Converter with Scaling 14. Application Diagram 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada HDMI to 3G-SDI Converter with Scaling Tel: 514-905-0588 | Fax: 514-905-0589 | Toll free: 1-877-689-5228 500743 info@muxlab.com | salesteam@muxlab.com | www.muxlab.com Follow us: 94-001040-A/SE-001040-A...
