Setup Mode

In this mode you can select the type of the LEDs of the connected lighting fixture.
01) Press and hold down the SETUP button (24) for 3 seconds. The LED on the button will start blinking.
02) Press one of the following 6 buttons to select the LEDs type of the fixture:
(01) RGB
(02) RGBW
(03) RGBA
(04) RGBWA
(05) RGBWA-UV (default setting)
(06) RGBW-UV
The LED on the selected button will light up.
03) Press and hold down the SETUP button (24) for 3 seconds to exit the setup mode. The LED on the
button will stop blinking.

Operating Modes

There are 3 operating modes:

1. Manual Mode

In this mode you can manually set the light colors.
01) Press the MANUAL button (24) to enter manual mode. The LED on the button will light up.
02) Turn the controls (D) – (I) to select the desired color. The available colors are RED, GREEN, BLUE,
WHITE, AMBER and UV. Turning the control clockwise will increase the color intensity.
If you want to clear a selection, press the CLEAR button (23).
03) Press the MANUAL button (24) again to exit manual mode. The LED on the button will turn off.
Note: In case you want to enter Manual Mode from Preset Colors Mode to adjust manually a color, you
will need first to fetch the output value. Turn the respective color control completely clockwise or
counterclockwise to fetch the output value. When the output value is fetched, you can further adjust the
color intensity.
Order code: 50703
1. Manual
2. Static Colors Mode (Preset/User colors)
3. Chases Mode (Preset/User chases)
8

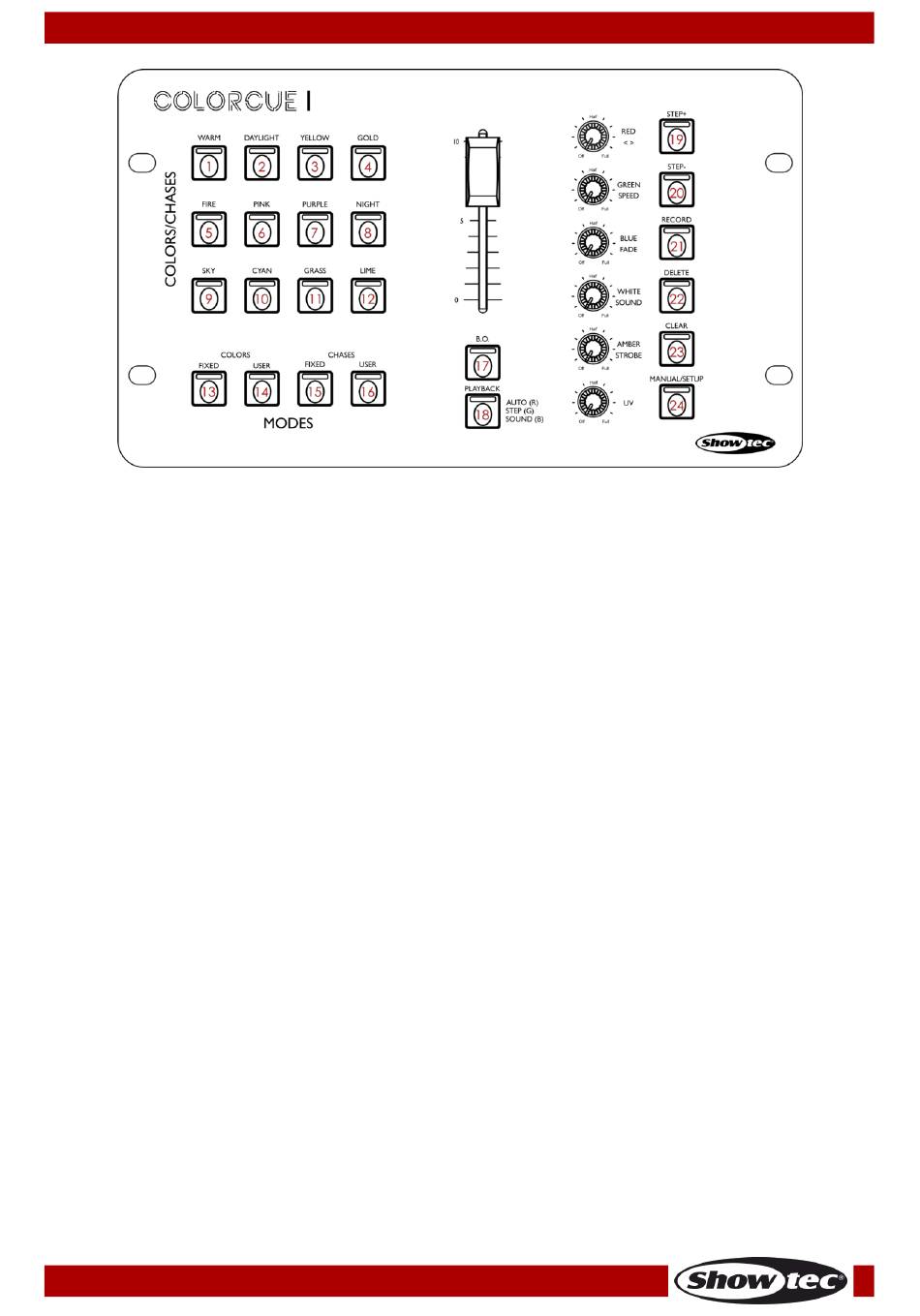

Fig. 03
