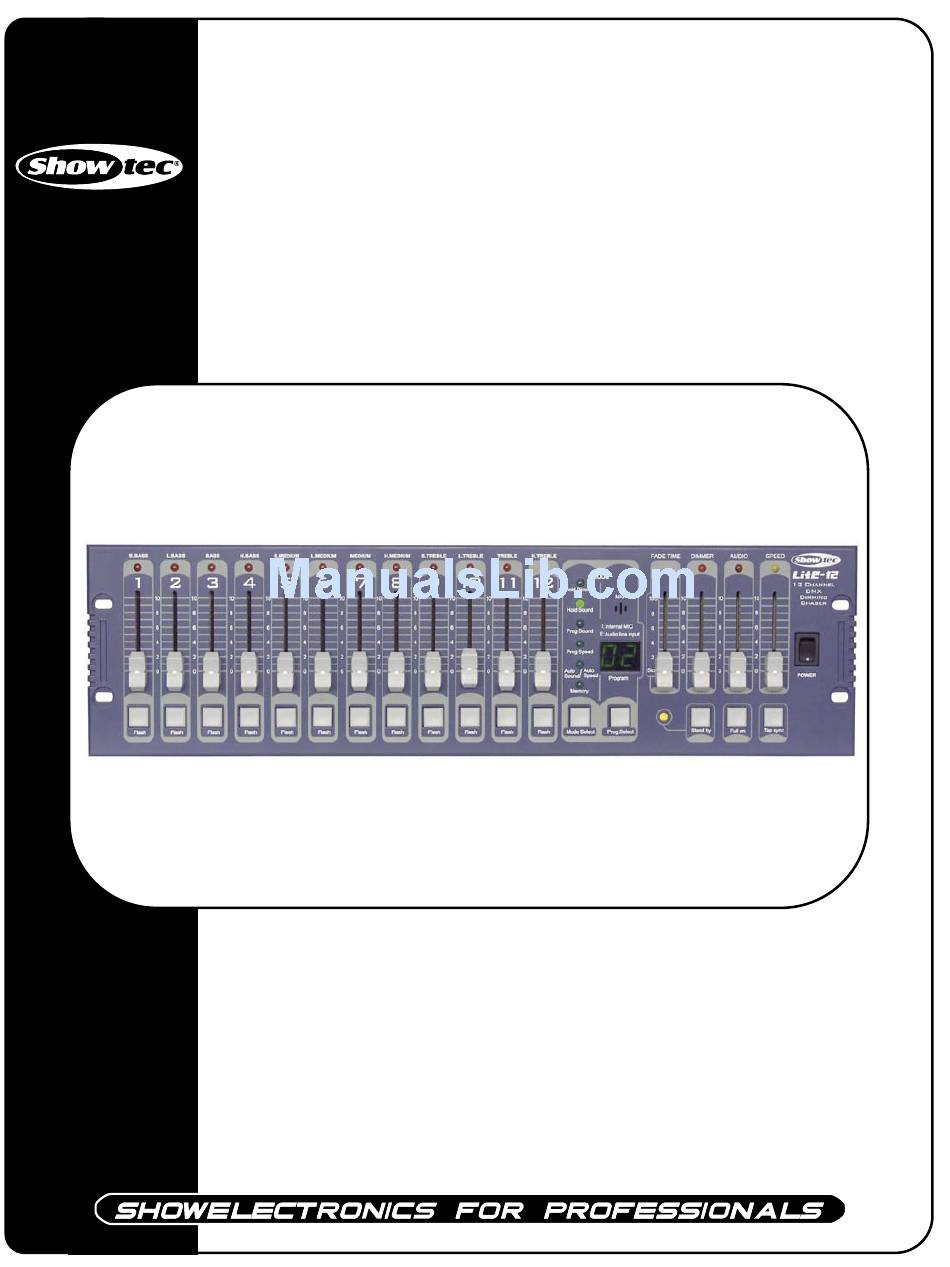

- Page 1 Lite-12 ORDERCODE 50336...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Lite-12 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Lite-12 Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Backside………………………………...….……………….……………………………………………...…. Installation................…...…………………………………….….. Set Up and Operation..............……..……………………………….… Maintenance...................………..………….…….…………….. Troubleshooting................………………….………………….…. Product Specifications..............……………….…….…………………. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Description

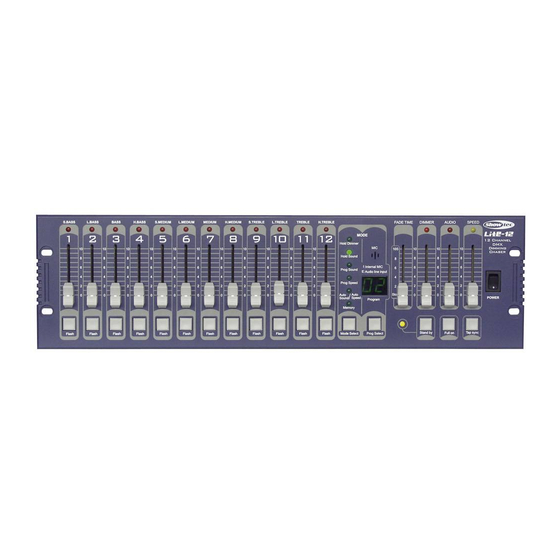

Description of the device Features Lite-12 is a lightcontroller from Showtec with a 12 channel chaser, 7 operating modes, 53 chasing programs, memory backup and fade time control. Overview Fig. 1 Channel Dimmer Indicator: This indicator indicates the dimming level of corresponding channel. -
Page 7: Backside
Connect to the DMX power pack. Installation Remove all packing materials from the Lite-12. Check that all foam and plastic padding is removed. Screw the equipment into a 19" rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. - Page 8 continuously and then next program. Auto Sound Corresponding indicator lights. You can operate according to the way specified by Prog Sound. However, in this mode, each program will be executed eight times continuously and then next program. Memory Up to 10 steps can be memorized. In this mode, you can select desire operating mode from Program / Manual / Auto Sound / Auto Speed corresponding to digit indication PR, ST, AS and AP.
-
Page 9: Maintenance
Maintenance The Showtec Lite-12 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 10: Product Specifications
Product Specification Model: Showtec Lite-12 Voltage: AC 230V-50Hz (CE) Power Input: DC 15-18V, 300 mA Audio Input: 100mV-2Vpp Dimensions: 483 x 133 x 51 mm (LxWxH) Weight: 1,42 kg Design and product specifications are subject to change without prior notice.
