Chapter 2: Jumpers and Connectors

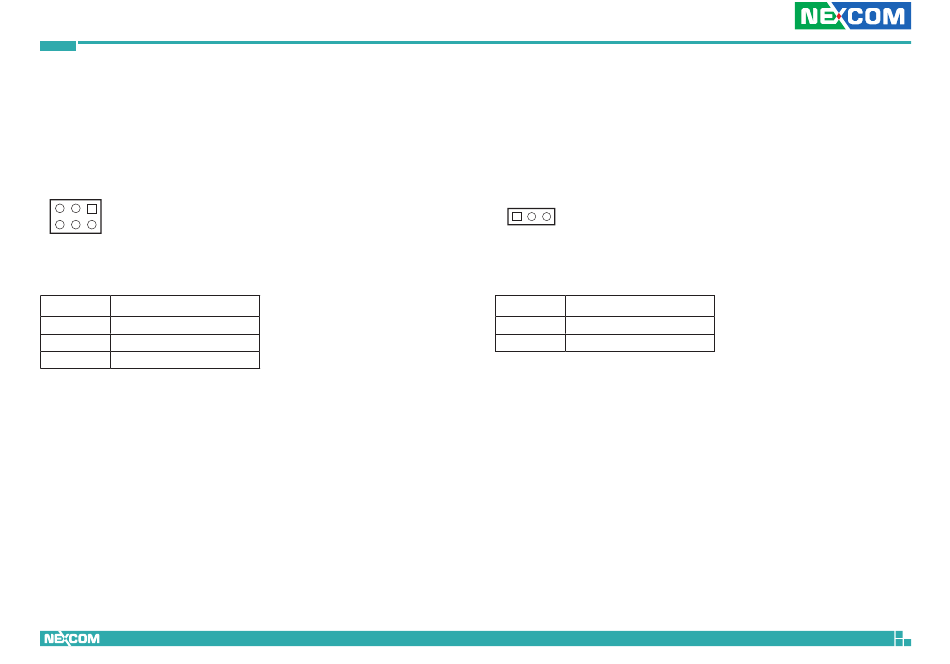

COM1 Ring/+5V/+12V Selection
Connector type: 2x3 6-pin header
Connector location: COM1_V1
5
1
6
2
Pin
Settings
1-2
+12V
3-4
+5V
5-6
Ring
5-6 On: default
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
AT & ATX Mode Selection
Connector type: 1x3 3-pin header
Connector location: ATMOD
1
3
Pin
Settings
1-2
ATX Mode
2-3
AT Mode
1-2 On: default
10
NViS 6308 Series User Manual
