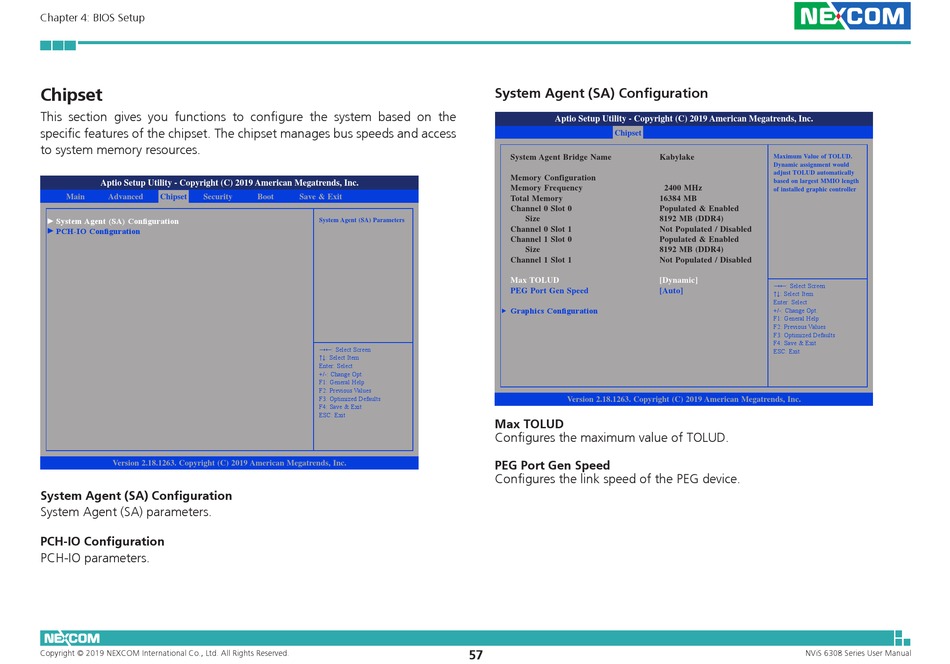

Chapter 4: BIOS Setup

Chipset

This section gives you functions to configure the system based on the
specific features of the chipset. The chipset manages bus speeds and access
to system memory resources.
Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc.
Main Advanced Chipset Security
► System Agent (SA) Configuration
► PCH-IO Configuration
Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc.
System Agent (SA) Configuration
System Agent (SA) parameters.
PCH-IO Configuration
PCH-IO parameters.
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Boot Save & Exit
System Agent (SA) Parameters
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
System Agent (SA) Configuration
Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc.
Chipset
System Agent Bridge Name
Memory Configuration
Memory Frequency
Total Memory
Channel 0 Slot 0
Size
Channel 0 Slot 1
Channel 1 Slot 0
Size
Channel 1 Slot 1
Max TOLUD
PEG Port Gen Speed
Graphics Configuration

Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc.
Max TOLUD
Configures the maximum value of TOLUD.
PEG Port Gen Speed
Configures the link speed of the PEG device.
57
Kabylake Maximum Value of TOLUD.
Dynamic assignment would
adjust TOLUD automatically
based on largest MMIO length
2400 MHz
of installed graphic controller
16384 MB
Populated & Enabled
8192 MB (DDR4)
Not Populated / Disabled
Populated & Enabled
8192 MB (DDR4)
Not Populated / Disabled
[Dynamic]
→←: Select Screen
[Auto]
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
