Chapter 2: Jumpers and Connectors

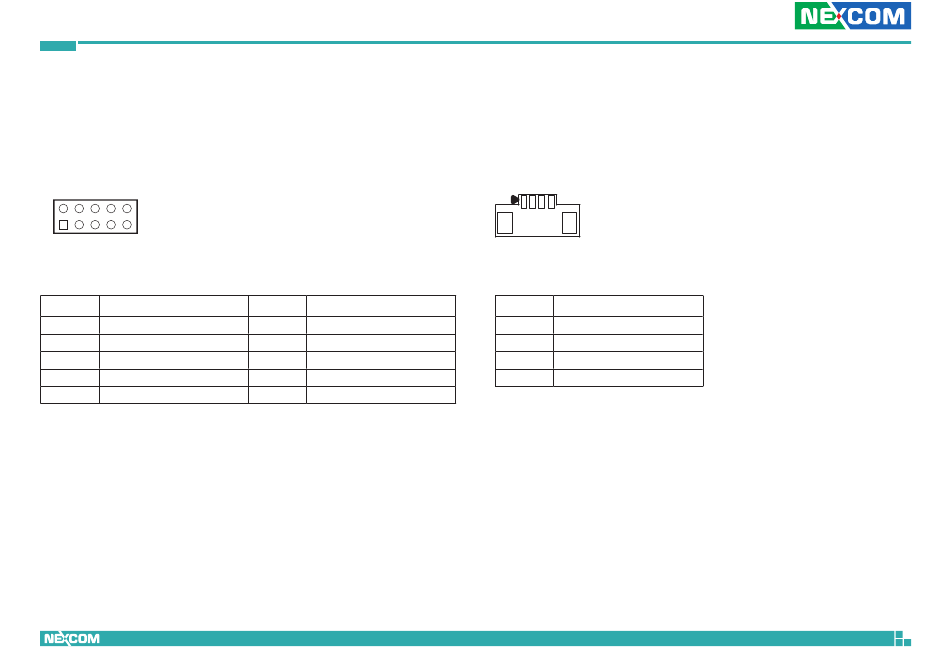

Digital I/O Connector

Connector type: 2x5 10-pin header
Connector location: DIO1
2 10
1 9
Pin Definition
1 DIO_P#1
3 DIO_P#3
5 DIO_P#5
7 DIO_P#7
9 +5V
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 DIO_P#2
4 DIO_P#4
6 DIO_P#6
8 DIO_P#8
10 GND

Internal Speaker-out

Connector type: 1x4 4-pin header
Connector location: AMP_CON1
1 4
Pin Definition
1 ROUTP
2 ROUTN
3 LOUTN
4 LOUTP
15
