Chapter 2: Jumpers and Connectors

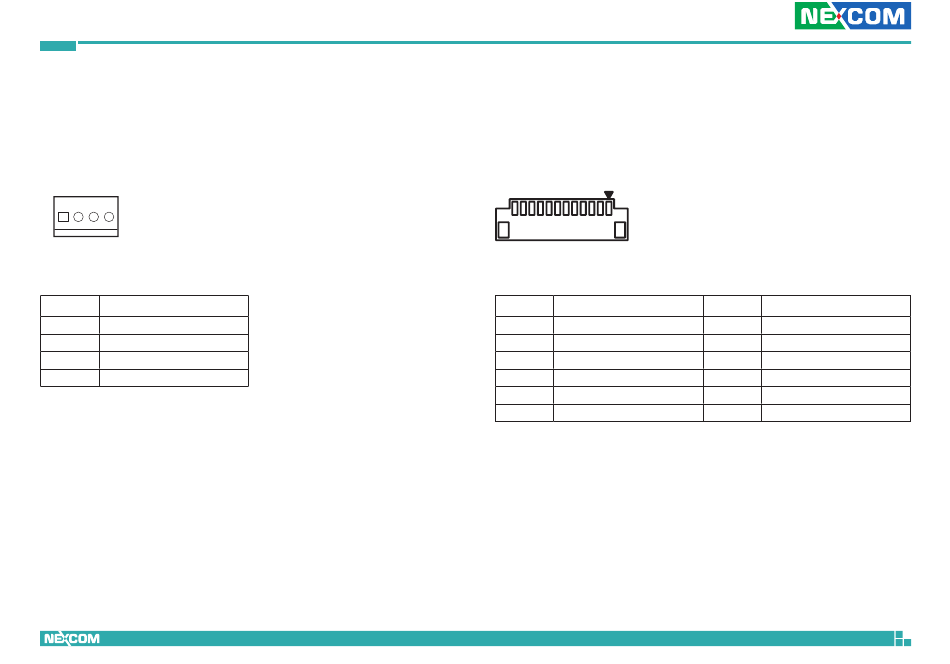

CPU and System Fan Connectors

Connector type: 1x4 4-pin Wafer
Connector location: CPU_FAN1, CHA_FAN1 and CHA_FAN2
1 4
Pin Definition
1 PWN
2 SENSE
3 VCC
4 GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.

Debug Port Connector

Connector type: 1x12 12-pin header
Connector location: DEBUG
1
12
Pin Definition
1 LPC_AD0
3 LPC_AD2
5 +3.3V
7 PLTRST#
9 CLK_33M_LPC
11 LPC_DRQ#1
14
Pin Definition
2 LPC_AD1
4 LPC_AD3
6 LPC_FRAME#
8 GND
10 LPC_DRQ#0
12 SERIRQ#
