Chapter 2: Jumpers and Connectors

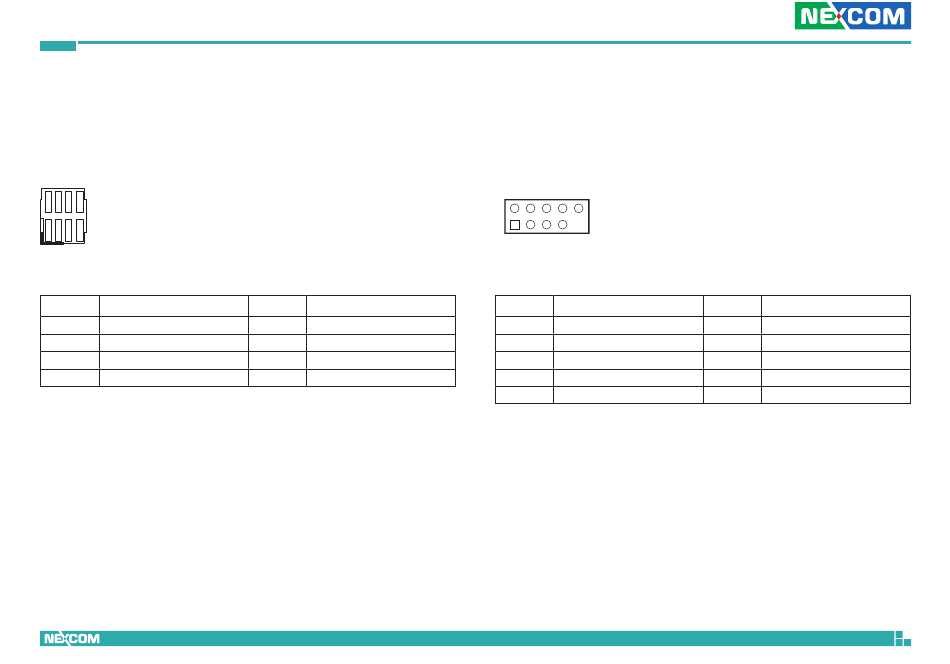

SPI Flash Programmable Connectors
Connector type: 2x4 8-pin header
Connector location: SPI_1
Pin
Definition
1
+3V_SPI
3
SPI_CS#
5
SPI_MISO
7
(NC)
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
SPI_CLK
6
SPI_MOSI
8
(NC)
Internal USB 2.0 Connectors
Connector type: 2x5 10-pin header
Connector location: USB1112 and USB1314
2
10
1
9
Pin
Definition
1
+5V
3
USB2_DN1
5
USB2_DP1
7
GND
9
(kill pin)
13
Pin
Definition
2
+5V
4
USB2_DN1
6
USB2_DP1
8
GND
10
(NC)
NViS 6308 Series User Manual
