Chapter 3: System Setup

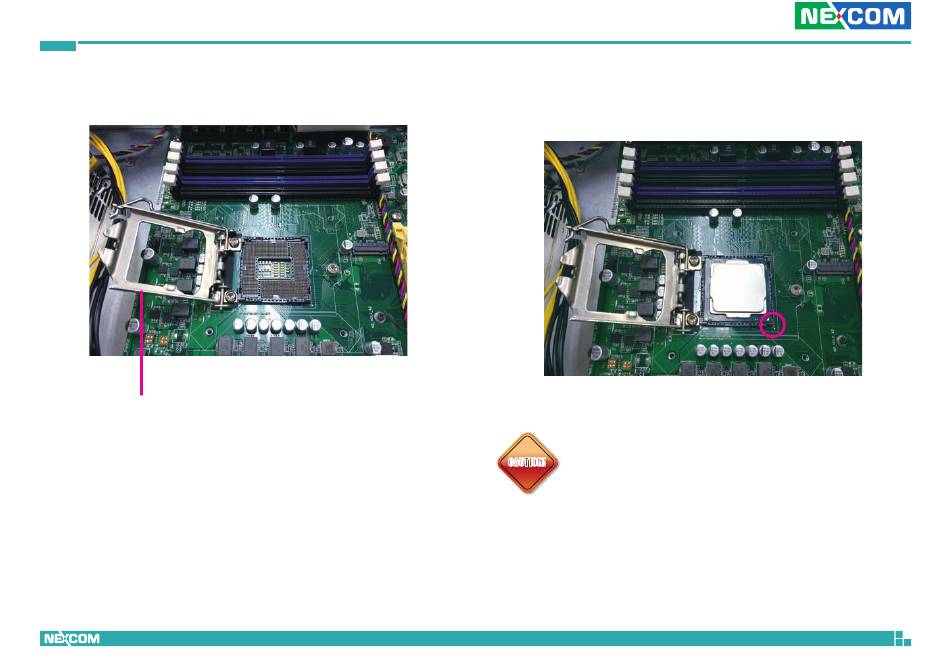

5. Lift the load plate up.
Load Plate
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
6. Insert the CPU into the socket. The triangular edge on the CPU must
align with the corner of the CPU socket shown on the photo.
▪ Handle the CPU by its edges and avoid touching the pins.
CAUTION!
CAUTION!
CAUTION!
▪ The CPU will fit in only one orientation and can easily be
inserted without exerting any force.
27
NViS 6308 Series User Manual
