2.2 Nameplate

1
2
3
4
5
6
7
8
9
N/A
10

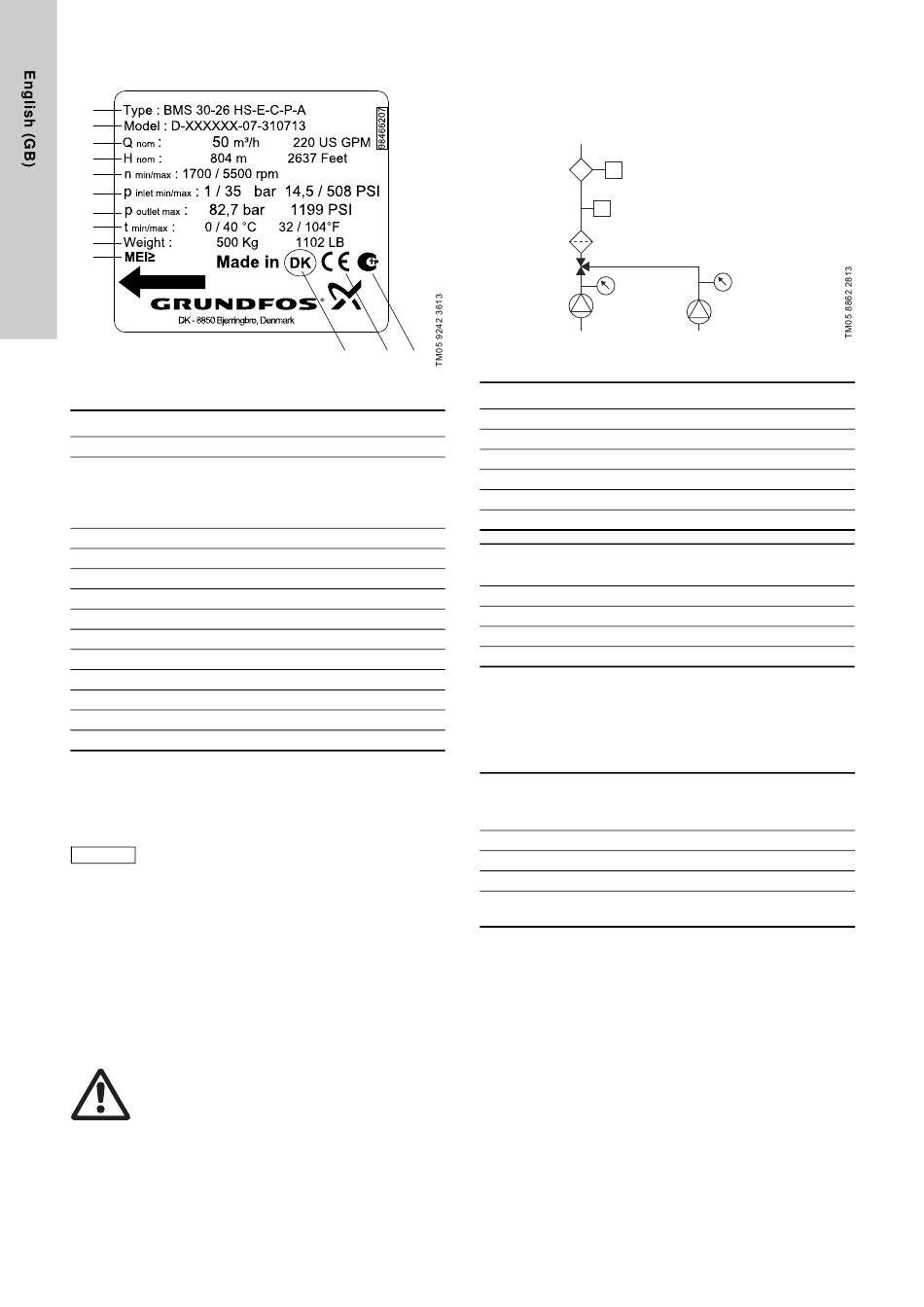

Nameplate
Fig. 1
Pos. Description
1 Type designation
Model designation:
• generation
2
• product number
• production code (ddmmyy).
3 Rated flow rate
4 Rated head
5 Rated speed
6 Minimum and maximum inlet pressure
7 Maximum discharge pressure
8 Minimum and maximum liquid temperature
9 Net weight of booster module
10 Minimum efficiency index
11 Country of origin
12 CE mark
13 TR mark

2.3 Commissioning

Commissioning of BMSX booster systems must be carried out by
certified Grundfos employees to ensure long and trouble-free
operation.
If this requirement is not met, the warranty will be
Note
invalidated.
Commissioning includes onsite training of the people who will be
responsible for maintaining and monitoring the system.

2.4 Pumped liquids

Thin, non-explosive liquids, not containing solid particles or
fibres. The liquid must not chemically attack the pump materials.
In case of doubt, contact Grundfos.
The pumps must never operate with water/liquid containing
substances which would remove the surface tension, e.g. soap.
If this type of detergent is used to clean the system, the water/
liquid must be led around the pumps via a bypass.
Warning
The pumps must not be used for pumping
flammable or combustible liquids such as diesel
oil, petrol or similar liquids.
4

2.5 Filtration

BMS hs, BMST: The raw water must be filtered to maximum
30 microns.
BMSX: The raw water must be filtered to maximum 10 microns.
Fig. 2
11 12 13
Pos.
1
2
3
4
5
6

2.6 Flushing and salinity

When the booster system is stopped, it is very important to flush
the system according to these guidelines.
See also the flush procedure in section 9.1.1 Frequency of starts
and stops.
Pump type
BMS hs
BM hp
BMST
Pressure
exchanger

2.7 Foundation

The foundation must be constructed to safely support the booster
system or pump(s) under all conditions. The pump and motor
must be installed at the same level.
The foundation must be strong enough to support the weight of
the both units.
2.7.1 Vibration dampening
The vibration dampeners supplied with the BMS hs pump must be
used.
4
3
Filter
2
1
Filtration
Description
Raw-water feed pump
Pressure gauge (raw water)
Low-pressure switch
Flowmeter
Pressure gauge (fresh-water pump)
Fresh-water flush pump
Pump type
BMS hs
BM hp
BMST
Pressure exchanger
Fresh water
Max. salinity
p
min
[ppm TDS]
[bar]
2 1000
2 1000
2 1000
2 1000
5
6
Filter
[micron absolute]
30
30
30
10
Flush time
[min.]
5-10
5-10
5-10
5-10
