  • Page 1 GRUNDFOS INSTRUCTIONS BMS hs, BMS xl, BMS hp, BMSX Installation and operating instructions Installation and operating instructions Other languages http://net.grundfos.com/qr/i/98567337...
  • Page 3 English (GB) Installation and operating instructions ............4 China RoHS .

  • Page 4: Table Of Contents

    Product introduction......5 The symbols and hazard statements below may appear in Grundfos Nameplate ....... 5 installation and operating instructions, safety instructions and Pumped liquids .

  • Page 5: Product Introduction

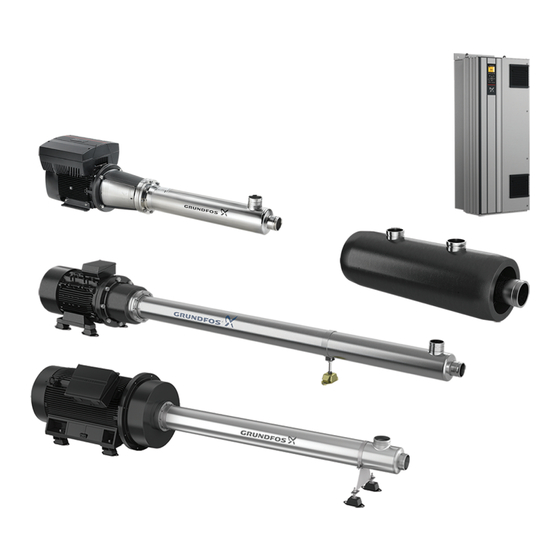

    2.2 Pumped liquids The pumps are suitable for pumping thin, non-explosive liquids, not Grundfos BMS and BMSX booster systems are designed for high- containing solid particles or fibres. The liquid must not chemically pressure boosting, filtration and desalination of seawater or attack the pump materials.

  • Page 6: Flushing And Salinity

    2.4 Flushing and salinity 5. Mechanical installation When the booster system is stopped, it is very important to flush the 5.1 Foundation system according to these guidelines. Construct the foundation to safely support the booster system or Flush the pump to prevent stagnant seawater which can pumps under all conditions.
  • Page 7 5.2.3 Motor installation Assemble the motor and the pump before you tighten the screws. To ensure correct installation, follow this procedure. 1. Fit all four screws for motor and pump connection. Do not Use vibration dampers. tighten the screws yet. The motor must be levelled.
  • Page 8 6. Fasten the support foot to the foundation. a. Fit all screws again. All pumps excluding BMS hs 7-42: tighten all screws to 33 Nm. b. BMS hs 7-42: tighten the M8 screw marked in the photo to 24 Make sure the support foot does not impose any tension Nm and all other screws to 33 Nm.

  • Page 9: Bms Hp Pump

    In case of a BMS hs or BMS xl pump, you are now ready for WARNING electrical connection. See the section on the BMS hs and BMS xl Pressurised system pumps. Death or serious personal injury In case of a BMSX system, see the section on the BMS hp pump ‐...

  • Page 10: Bmsx System

    1. Loosen all bolts in the flange. 3.5 mm Gap between the pipes 5.4 BMSX system 2. Turn the inlet pipe to the required position. Tighten all screws to A BMSX system consists of a BMS hs or a BMS xl pump as a high- 33 Nm.

  • Page 11: Electrical Connection

    However, you Related information can also use output filters to reduce acoustic noise from the motor. Grundfos offers two types of output filter as accessories for CUE: 6.2 BMS hs and BMS xl pumps 6.3 BMS hp pump •...

  • Page 12: Commissioning The Product

    Grundfos technicians or by audited partners acting as service suppliers for Grundfos. Furthermore, we recommend that the commissioning of BMS hs, BMS xl and BMS hp systems is performed by Grundfos technicians or audited partners. Commissioning includes report and on-site training of the people who will be responsible for maintaining and monitoring the system.

  • Page 13: Bms Hs And Bms Xl Pumps

    7.2 BMS hs and BMS xl pumps 7.2.2 Startup If an outlet valve is installed, we recommend that you open the 7.2.1 Before startup valve 1/4 of a turn when starting the pump or system. Follow these instructions to ensure correct startup of the BMS hs and BMS xl pumps.

  • Page 14: Bms Hp Pump

    7.2.3 Operating limits 7.3 BMS hp pump We recommend that you always keep the capacity of the booster 7.3.1 Before startup systems within the recommended flow rate and pressure range of Follow these instructions to ensure correct startup of the BMS hp each individual pump.
  • Page 15 7.3.2 Startup 7.3.3 Operating limits If an outlet valve is installed, we recommend that you open the We recommend that you always keep the capacity of the booster valve 1/4 of a turn when starting the pump or the system. systems within the recommended flow rate and pressure range of each individual pump.

  • Page 16: Bmsx System

    7.4 BMSX system Pos. Description 7.4.1 Flow control and balancing Built-in non-return valve Flow rates and pressures in a typical BMSX system vary slightly Raw-water feed pump over the life of the system due to temperature variations, membrane Filter fouling and feed salinity variations. The rotor of the pressure exchanger is powered by the flow of fluid through the unit.
  • Page 17 7.4.3 Startup To start up a BMSX system, proceed as follows: 1. All valves must be in their normal operating positions. 2. Start the raw-water feed pump (1). When the raw-water feed pump is started, the system is filled with water. Make sure that the entire system is vented.

  • Page 18: Low-Pressure Flow Control

    8. Servicing the product DANGER Magnetic field Death or serious personal injury ‐ Dismantling of the PM motors used for the BMS HS-E- C-P-A pumps must not be carried out by people with pacemakers or any other implanted medical devices. The rotor contains a very powerful magnetic field, which can affect pacemakers or disturb digital devices.

  • Page 19: Preventive Maintenance

    No preventive maintenance required Use one gasket kit every time a pressure exchanger is opened for inspection. For further information on maintenance and service, refer to the separate documents supplied for each component and to Grundfos Product Center. 9. Starting up after standstill Follow the normal startup procedure step by step.

  • Page 20: Bms Hs Pump

    10.1 BMS hs pump 10.2 BMS hp pump This procedure describes how to shut down the BMS hs pump. This procedure describes how to shut down the BMS hp pump. Example of a BMS hs pump Example of a BMS hp system Pos.

  • Page 21: Bmsx System

    10.3 BMSX system 10.4 Flushing This procedure describes how to shut down the BMSX system. BMS pumps can be flushed in the flow direction. Flushing of the booster pumps is very important, especially when the pumps are used for pumping seawater or water with chemicals. If seawater is left in the pumps while they are stopped, there is a risk of crevice corrosion of the stainless steel.

  • Page 22: Fault Finding

    12. Fault finding 12.1 BMS hs DANGER Electric shock Death or serious personal injury ‐ Before starting any work on the product, make sure that the power supply has been switched off and that it cannot be accidentally switched on. Related information 7.2.2 Startup 7.3.2 Startup...

  • Page 23: Bms Hp

    12.2 BMS hp DANGER Electric shock Death or serious personal injury ‐ Before starting any work on the product, make sure that the power supply has been switched off and that it cannot be accidentally switched on. WARNING Description of hazard Death or serious personal injury ‐...

  • Page 24: Pressure Exchanger Of Bmsx

    The system is operating above the rated pressure or below the rated See the section on the BMSX system. flow capacity. Debris or foreign particles in the device. Contact Grundfos. The system is not properly flow-balanced. See the section on the BMSX system. Related information 7.4.1 Flow control and balancing...

  • Page 25: Technical Data

    50 (122) 65 (943) BMS 60-17 180 (241) 5000 94 (414) 0 (32) 40 (104) 70 (158) 50 (122) 65 (943) Contact Grundfos in case of higher temperatures. Note that BMS hs PM pumps are supplied with Grundfos CUE frequency converters.
  • Page 26 0 (32) 40 (104) 70 (158) 40 (104) 65 (943) Contact Grundfos in case of higher temperatures. Note that the frequency converter must be purchased separately for BMS hs AC. We recommend the CUE frequency converter for the AC motor.
  • Page 27 70 (158) 60 (140) 80 (1160) Contact Grundfos in case of higher temperatures. Grundfos can supply the customer with BMS hp MG pumps of any voltage required. 13.1.4 BMS hp MG booster system 8" Max. liquid temperature Flow rate Motor power Min.
  • Page 28 70 (158) 40 (104) 80 (1160) Contact Grundfos in case of higher temperatures. Grundfos can supply the customer with BMS hp MGE pumps of any voltage required. 13.1.6 BMS hp MGE booster system 8" Max. liquid temperature Flow rate Motor power Min.

  • Page 29: Sound Pressure Level, Inlet Pressure And Liquid Temperatures

    Contact Grundfos in case of higher temperatures. Grundfos can supply the customer with BMS xl AC pumps of any voltage required. Note that the frequency converter must be purchased separately for BMS hs AC. We recommend the CUE frequency converter for the AC motor.

  • Page 30: Disposing Of The Product

    This product or parts of it must be disposed of in an environmentally sound way. 1. Use the public or private waste collection service. 2. If this is not possible, contact the nearest Grundfos company or service workshop. The crossed-out wheelie bin symbol on...
  • Page 31 China RoHS 1. 中国 RoHS 产品中有害物质的名称及含量 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴联苯醚 (Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE) 泵壳 印刷电路板 紧固件 管件 定子 转子 本表格依据 SJ/T 11364 的规定编制 O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。 X： 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 该规定的限量要求。 该产品环保使用期限为 10 年，标识如左图所示。 此环保期限只适用于产品在安装与使用说明书中所规定的条件下工作...
