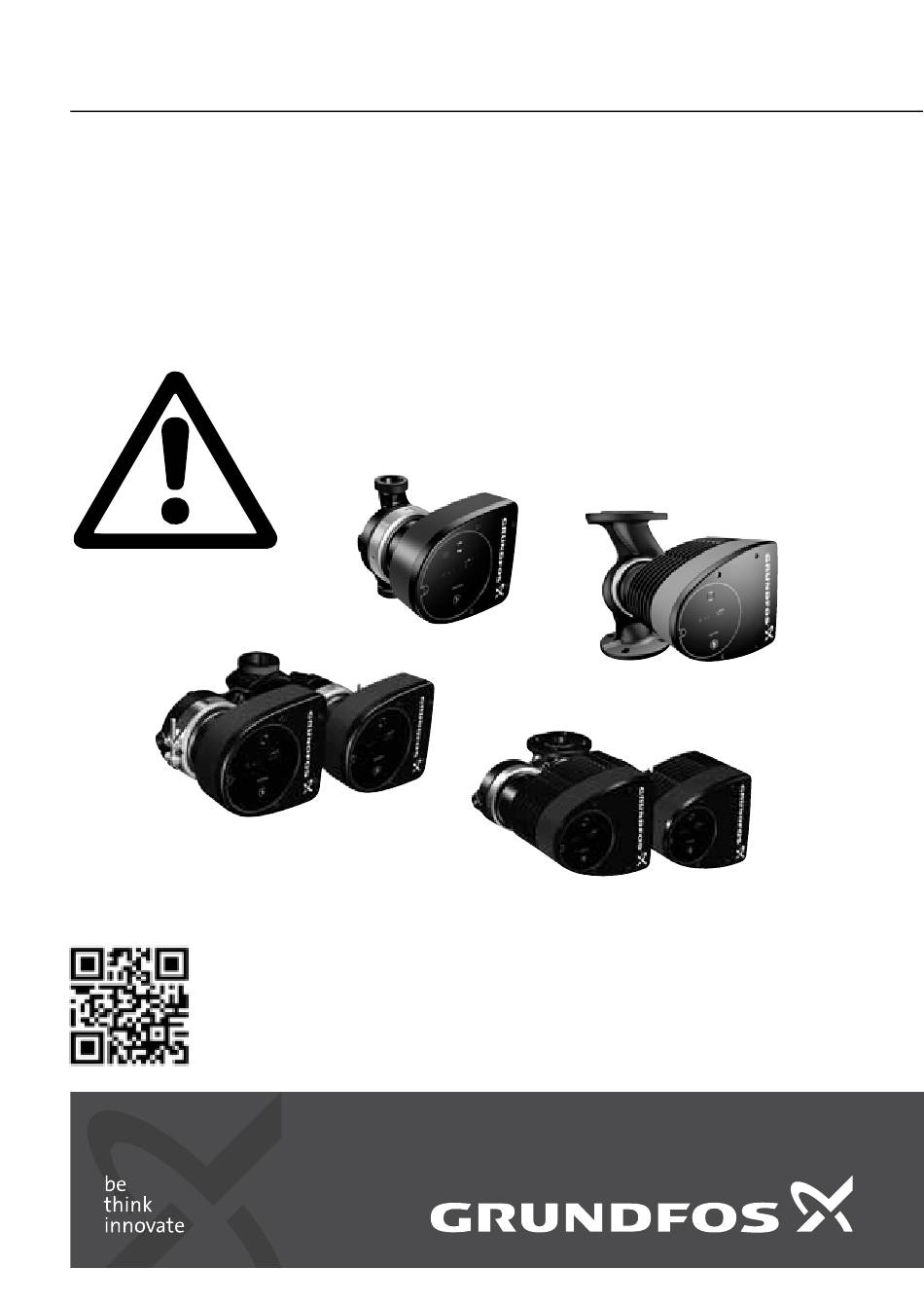

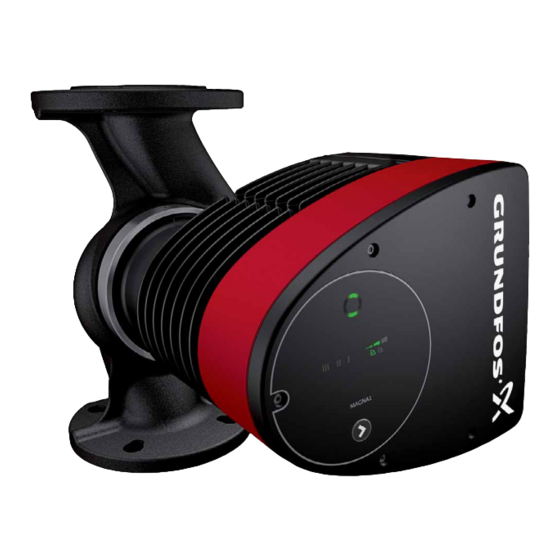

- Page 1 GRUNDFOS INSTRUCTIONS MAGNA1 Model A and B Safety instructions and other important information Installation and operating instructions http://net.grundfos.com/qr/i/98091804...
- Page 2 English (GB) Safety instructions Original safety instructions These safety instructions give a quick overview of the safety precautions to be taken in connection with any work on this product. Observe these safety instructions during handling, installation, operation, maintenance, service and repair of this product.
-
Page 3: General Warning
General warning Prior to installation, read this document and the quick guide. Installation and operation must comply with local regulations and accepted codes of good practice. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or... - Page 4 Type key Code Example (D) 32 -40 (F) (N) 220 Type range MAGNA1 Single-head pump Twin-head pump Nominal diameter (DN) of suction and discharge ports [mm] Maximum head [dm] Pipe connection Threaded Flange Pump housing material Cast iron Stainless steel Port-to-port length [mm]...
-
Page 5: Lifting The Pump
Lifting the pump Observe local regulations concerning limits for manual lifting or handling. Installing the product CAUTION Pressurised system Minor or moderate personal injury - Pay special attention to any escaping vapour when loosening the clamp. CAUTION Crushing of feet Minor or moderate personal injury - Do not drop the pump head when loosening the clamp. -
Page 6: Electrical Installation
Fit and tighten the screw holding the clamp to 8 Nm ± 1 Nm. Do not apply more torque than specified even though water is dripping from the clamp. The condensed water is most likely coming from the drain hole under the clamp. - Page 7 WARNING Electric shock Death or serious personal injury - Connect the pump to an external main switch with a minimum contact gap of 3 mm in all poles. - Use earthing or neutralisation for protection against indirect contact. - If the pump is connected to an electric installation where an electrical circuit breaker (voltage sensing ELCB, residual-current...
-
Page 8: Product Introduction
Make sure that the fuse is dimensioned according to the nameplate and local regulations. Connect all cables in accordance with local regulations. Make sure that all cables are heat-resistant up to 75 °C. Install all cables in accordance with EN 60204-1 and EN 50174-2:2000. Product introduction Do not pump aggressive liquids. -
Page 9: Operating The Product
Operating the product CAUTION Hot surface Minor or moderate personal injury - Only touch the control panel to avoid burns. Fault finding the product CAUTION Pressurised system Minor or moderate personal injury - Before dismantling the pump, drain the system or close the isolating valve on either side of the pump. - Page 10 WARNING Electric shock Death or serious personal injury - Switch off the power supply for at least 3 minutes before you start any work on the product. Lock the main switch in position 0. Type and requirements as specified in EN 60204-1, 5.3.2.
- Page 11 Technical data Ambient temperature 0 to 40 °C. Liquid temperature Continuously: -10 to +110 °C. Stainless steel pumps in domestic hot-water systems: In domestic hot-water systems, we recommend that you keep the liquid temperature below 65 °C to eliminate the risk of lime precipitation.
- Page 12 Disposal This product has been designed with focus on the disposal and recycling of materials. The following average disposal values apply to all variants of Grundfos MAGNA1 pumps: • 85 % recycling • 10 % incineration • 5 % depositing.
- Page 13 правните разпоредби на държавите-членки на ЕO. CZ: Prohlášení o shodě EU My firma Grundfos prohlašujeme na svou plnou odpovědnost, že výrobek MAGNA1, na který se toto prohlášení vztahuje, je v souladu s níže uvedenými ustanoveními směrnice Rady pro sblížení právních předpisů...
- Page 14 PT: Declaração de conformidade UE A Grundfos declara sob sua única responsabilidade que o produto MAGNA1, ao qual diz respeito a declaração abaixo, está em conformidade com as Directivas do Conselho sobre a aproximação das legislações dos Estados Membros da UE.
- Page 15 SK: ES vyhlásenie o zhode My, spoločnosť Grundfos, vyhlasujeme na svoju plnú zodpovednosť, že produkt MAGNA1, na ktorý sa vyhlásenie uvedené nižšie vzťahuje, je v súlade s ustanoveniami nižšie uvedených smerníc Rady pre zblíženie právnych predpisov členských štátov EÚ. TR: AB uygunluk bildirgesi Grundfos olarak, aşağıdaki bildirim konusu olan MAGNA1 ürünlerinin, AB üye ülkelerinin direktiflerinin...
- Page 16 Applies only to circulators marked with the energy efficiency index EEI. See the pump nameplate. Standards used: EN 16297-1:2012 and EN 16297-2:2012. This EC declaration of conformity is only valid when published as part of the Grundfos safety instructions (publication number 99233377).
