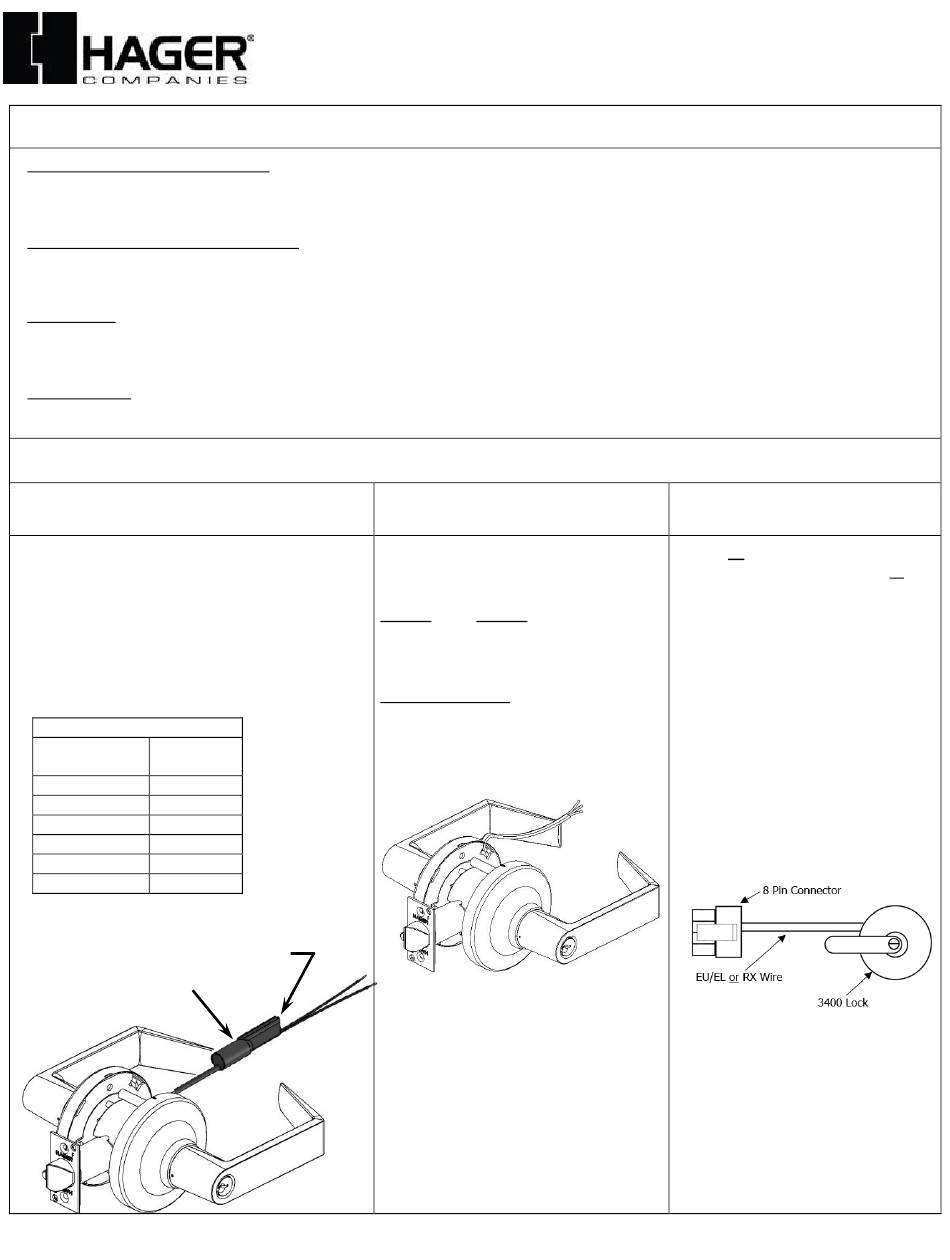

hager 3400 Series Electrical Specifications & Supplemental Instructions
hager 3400 Series Electrical Specifications & Supplemental Instructions

hager 3400 Series Electrical Specifications & Supplemental Instructions

Electric cylindrical lock

Advertisement

Quick Links

3480EL - Fail Safe Control [GREEN]
Outside trim is locked when power is applied and unlocked when power is removed (storeroom function when energized). Lockset
will unlock in the event of a power failure.
3480EU - Fail Secure Control [YELLOW]
Outside trim is unlocked when power is applied and locked when power is removed. Lockset will lock in the event of a power
failure. This is the default lock setup.
Key Function
When key cylinders are installed into locks, the latch bolt may be momentarily retracted from the outside with key even if lockset is
electrically locked.
Request to Exit
Request to Exit (RX) is a SPDT switch that is mounted inside the interior trim of the lockset. The RX switch monitors the activation
of the inside trim.
3480EL and 3480EU
Motorized Locking and Unlocking provides 12V/24V
Fail-Safe/Fail-Secure operation with low power
consumption.
Voltage: 12-24V AC/DC (11V – 30V)
Current: 250 mA MAX Inrush, 10 mA MAX Holding
Non-polarized leads
Fail-Secure (EL) by Default
2-Conductor Wire Run
Distance
Wire
12V/24V
Gauge
125'/250'
200'/400'
300'/600'
500'/1000'
750'/1500'
1250'/2500'
Note: Warranty is void if electronics module is
removed.
SWITCH ACCESS
ELECTRONICS MODULE
REV 2, 4/18/2018
ELECTRICAL SPECIFICATIONS
22
20
18
16
14
12
Electrical Specifications & Supplemental Instructions
FUNCTION DESCRIPTION
3480RX
SPDT mechanical switch. Mainly used
as a dry contact monitoring switch.
Voltage
Current
125 VAC
3 AMP
30 VDC
2 AMP
RX Wiring Diagram
Yellow Wire: (common)
Red Wire: (normally open)
Gray Wire: (normally closed)
27390102
3400 Series Electric Cylindrical Lock
Quick Connect Pin Assignments
EU/EL or RX only
-
If the lock only has EU/EL or RX
electric function the function will
be wired directly into an 8 pin
connector as shown in the image
below. The 8 pin connector can
be plugged directly into a Hager
Quick Connect Harness Cable
during installation of the lock.
-
Insert excess wire into the
raceway prior to installing the
lock body.
-
See wire color reference charts
on page 2 to complete wiring of
full door assembly.
I-LS02201
Page 1 of 3
