4600 series narrow stile trim

Advertisement

Quick Links

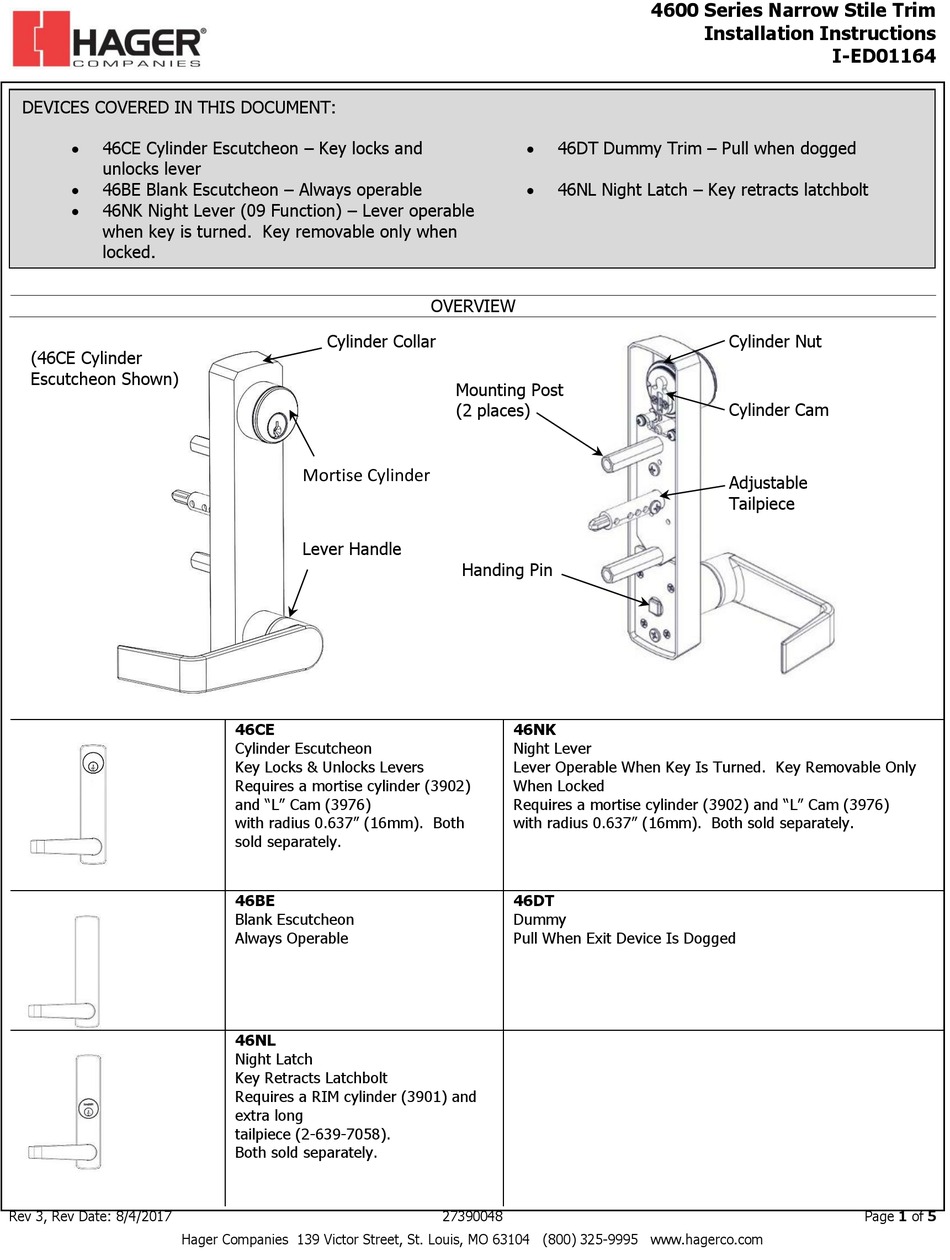

DEVICES COVERED IN THIS DOCUMENT:
46CE Cylinder Escutcheon – Key locks and
unlocks lever
46BE Blank Escutcheon – Always operable
46NK Night Lever (09 Function) – Lever operable
when key is turned. Key removable only when
locked.
(46CE Cylinder
Escutcheon Shown)
Rev 3, Rev Date: 8/4/2017
Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com
Cylinder Collar
Mortise Cylinder
Lever Handle
46CE
Cylinder Escutcheon
Key Locks & Unlocks Levers
Requires a mortise cylinder (3902)
and "L" Cam (3976)
with radius 0.637" (16mm). Both
sold separately.
46BE
Blank Escutcheon
Always Operable
46NL
Night Latch
Key Retracts Latchbolt
Requires a RIM cylinder (3901) and
extra long
tailpiece (2-639-7058).
Both sold separately.
46DT Dummy Trim – Pull when dogged
46NL Night Latch – Key retracts latchbolt
OVERVIEW
Mounting Post
(2 places)
Handing Pin
46NK
Night Lever
Lever Operable When Key Is Turned. Key Removable Only
When Locked
Requires a mortise cylinder (3902) and "L" Cam (3976)
with radius 0.637" (16mm). Both sold separately.
46DT
Dummy
Pull When Exit Device Is Dogged
27390048
4600 Series Narrow Stile Trim

Installation Instructions

Cylinder Nut
Cylinder Cam
Adjustable
Tailpiece
I-ED01164
Page 1 of 5
