Rim exit device

Advertisement

Quick Links

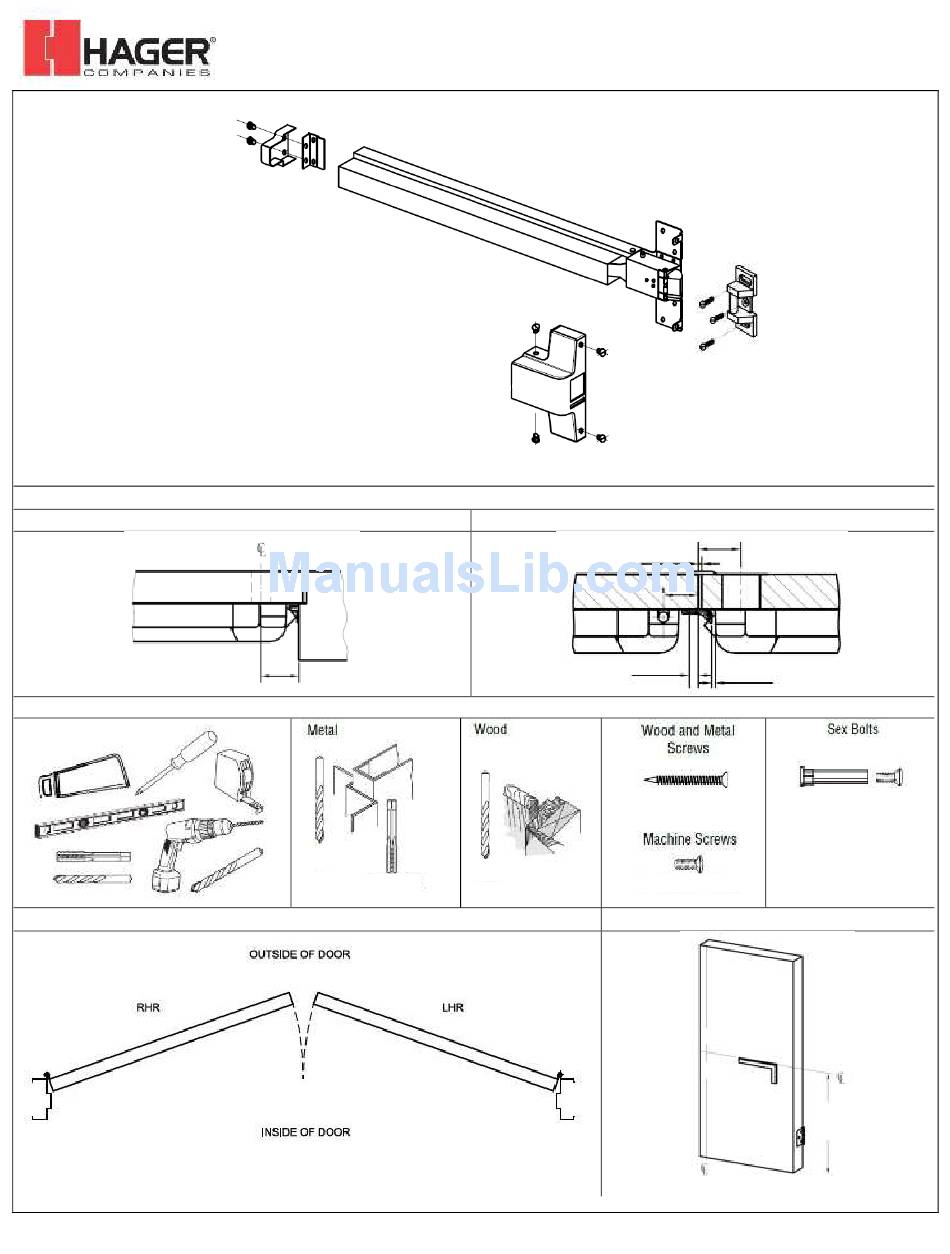

Single Device
Rev -, Rev Date: 07/23/13
Vertical Centerline
56mm

Tools and Hardware Required

4.2mm
M5-0.8

Door Handing

Vertical Rod and Rim Device
~5mm
18mm
For wood doors, drill
3.5mm hole
4.0mm
4.2mm drill, M5-0.8 tap
4200 Rim Exit Device

Installation Instructions

I-ED01625
56mm
50mm
4.5~7mm
Drill 5mm thru from device
side. Drill 7mm from other
side (pull side).
Check building and fire codes
to see if your application
requires the use of sleeve
nuts and bolts.
Horizontal Centerline
1000mm
from finished
floor
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for hager 4200

  • Page 1: Installation Instructions

    4200 Rim Exit Device Installation Instructions I-ED01625 Vertical Centerline Vertical Rod and Rim Device Single Device 56mm ~5mm 50mm 18mm 4.5~7mm 56mm Tools and Hardware Required For wood doors, drill Drill 5mm thru from device 3.5mm hole side. Drill 7mm from other side (pull side).
  • Page 2 4200 Rim Exit Device Installation Instructions I-ED01625 Box Contents Fasteners and Other Parts Included Qty. Purpose M5 - 0.8 x 25mm Round Head Machine Screws Mount the Device Head and End Cap to a wood or metal frame. M5 - 0.8 x 35mm Sex Nut (7.5mm Sleeve Dia) Mount the Device Head and End Cap to a wood or metal frame.
  • Page 3 4200 Rim Exit Device Installation Instructions I-ED01625 1. Prep Exit Device For Door Size Prep for door width. The 4’ exit device will work for openings from widths of 650mm to 1828mm. However, for openings narrower than 1100mm, the device must be cut.
  • Page 4 4200 Rim Exit Device Installation Instructions I-ED01625 Install end cap mounting bracket with provided Sex Bolts and Through Bolts or Mounting Screws. Slide mounting bracket into push bar channel. Level the device. Mark mounting holes, and prepare the holes by drilling the appropriate sized holes based on mounting hardware used.
