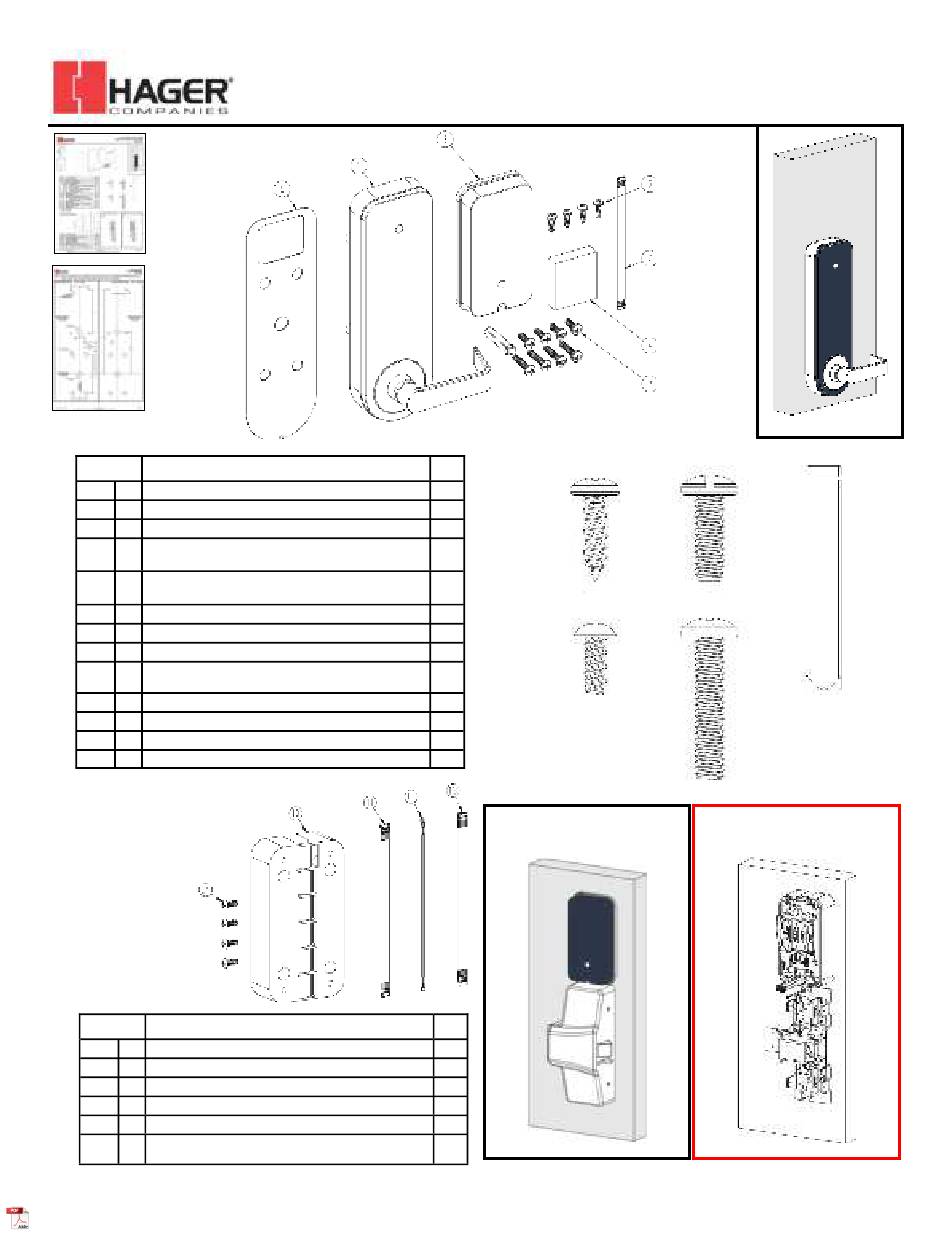

Grade 1 exit trim

Advertisement

Quick Links

8
9
Part
Description
1
Exit Trim Assembly
2
Screw Pack, 4500 Trim
AA
Handing Pin
Screw, 1/4"-20 x 3/4" Pan Head Combo
BB
Drive Machine
Screw, 1/4"-20 x 1.25" Pan Head
CC
Combo Drive Machine
3
Power Pack Assy
4
AA Batteries
5
Screw Pack, Power Pack, Exit Trim
Screw, #12 x 3/4" Pan Head Phillips
Drive Sheet Metal
6
Main Gasket
7
Wire Harness, Control to Reader Board
8
Instruction Sheets
9
Template
SVR Block Kit
Required to install battery
pack for SVR exit devices
Part
Description
10
SVR Spacer Block, Power Pack
11
6 Wire Extension
12
2 Wire Extension
13
8 Wire Extension
14
Power Pack to SVR Block Screws
EE
Screws, #12 x 1/2" Thread Forming
Rev 1, Rev Date: 01/12/2023
Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com
QTY
1
1
DD
1
4
4
1
4
1
EE
1
1
1
1
1
RIM specific Instructions
Page4
QTY
1
1
1
1
1
4
[27390110]
EQ45 GRADE 1 EXIT TRIM
INSTALLATION INSTRUCTIONS
BB
AA
CC
SVR specific Instructions Page
5-6
I-ED02734
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EQ45 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for hager EQ45

  • Page 1 2 Wire Extension 8 Wire Extension Power Pack to SVR Block Screws Screws, #12 x 1/2” Thread Forming Page 1 of 8 Rev 1, Rev Date: 01/12/2023 [27390110] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 2 Orient lever to desired handing. RHR shown, LHR opposite side of escutcheon • Insert handing pin AA as shown. Page 2 of 8 Rev 1, Rev Date: 01/12/2023 [27390110] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 3 • 1-3/4” [44.5] (As shipped) • 2” [50.8] • 2-1/4” [57.2] • 2-1/2” [63.5] • 3” [76.2] Page 3 of 8 Rev 1, Rev Date: 01/12/2023 [27390110] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 4 Plug in the 2 Pin plug with the black shrink wrap to the RX wire in the RIM head as shown below. Page 4 of 8 Rev 1, Rev Date: 01/12/2023 [27390110] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 5 SVR head as shown below. Lower Wiring Hole 6 Pin 8 Pin SVR RX Plugs Page 5 of 8 Rev 1, Rev Date: 01/12/2023 [27390110] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 6 QR CODE QR CODE EXTENDER READER OTHER PICTURE PICTURE PICTURE INFO INFO INFO QR CODE QR CODE QR CODE Page 6 of 8 Rev 1, Rev Date: 01/12/2023 [27390110] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
  • Page 7 Pour se conformer aux exigences d'exposition RF, une distance de séparation minimale de 20 cm doit être maintenue entre le corps de l'utilisateur et l'appareil. Page 7 of 8 Rev 1, Rev Date: 01/12/2023 [27390110] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
