hager 3400 Series Installation Instructions Manual

For use on doors 1-3/8" to 2" (35 mm - 51 mm) thick
TOOLS REQUIRED FOR NEW INSTALLATION:
(1) Phillips Head Screwdriver
(1) 2-1/8" (54 mm) Hole Saw
(1) 1" (25.4 mm) Drill Bit
(1) 5/16" (8 mm) Drill Bit
(1) Chisel
(1) Catch-Release Tool (Provided)
TOOLS REQUIRED FOR REPLACEMENT INSTALLATION:
(1) Phillips Head Screwdriver
FOR REMODELING OR NEW CONSTRUCTION:
-Follow all steps
FOR REPLACEMENT OF EXISTING LOCK:
-Follow steps 3C, 4C, 5 through 9 after removal of old lock
FOR CYLINDER REPLACEMENT:
-Follow Step 10

1. MARK DOOR

MARK FOR 1"
(25.4 mm)
CENTER
HOLE IN
LINE
DOOR EDGE
MARK FOR 2-1/8"
(54 mm) HOLE ON
DOOR FACE

3. INSTALL LATCH

A. Insert latch in hole keeping
it parallel to face of door. Mark
outline of latch face plate and
remove latch.

4. INSTALL STRIKE

A. Close door until
latchbolt touches jamb.
JAMB
Locate strike in jamb and
center line of strike. Open
door and extend line to door
stop. Measure one half of
door thickness plus 1/8"
from door stop. Vertically
mark center line for strike.
REV 2
OUTSIDE MOUNTING PLATE
OUTSIDE ROSE
Measure center line of lock; height as
desired from finished floor. Select 2-3/4"
or optional 2-3/8" backset, fold and apply
template to high side of door bevel and
mark center of door edge as indicated on
template. Mark center hole and screw-
post holes on door face through guide on
template.
B
mm) holes 3/4" (19 mm)
deep in door jambs 5/16" (8
mm) above and 5/16" (8
mm) below horizontal center
line. CAUTION: To ensure
CENTER
proper lockset function, hole
LINE
in jamb must be drilled a full
3/4" (19 mm) deep.
INSIDE MOUNTING PLATE
LOCK BODY ASSEMBLY
LATCH
SCREW POST
OUTSIDE LEVER

2. DRILL HOLES

5/16" (8 mm)
HOLE FOR SCREW
POST
2-1/8" (54 mm)
HOLE FOR
LOCKSET
B. Chisel 5/32" (4
mm) deep or until
latch face plate is flush
with door edge.
Drill two (2) 1" (25.4
5/16"
CL
5/16"

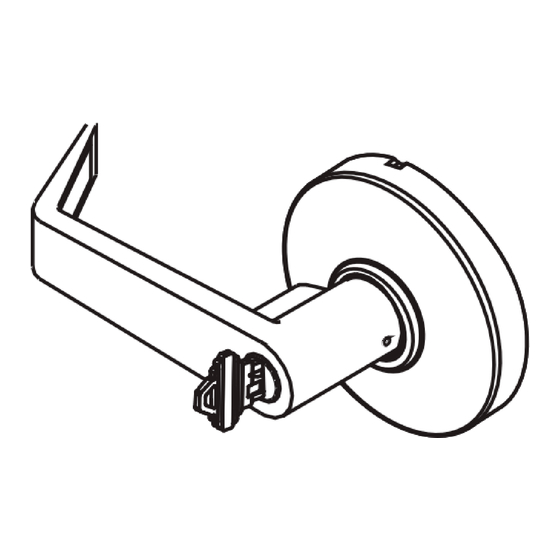

3400 Series ANSI Grade 1 Lever Set
Installation Instructions
Meets ANSI 156.2
INSIDE LEVER
MOUNTING SCREW
INSIDE ROSE LINER
TURN BUTTON
ASA STRIKE
(Illustration: Entrance Function)
Drill 2-1/8" (54 mm) hole through
door face as marked for lockset.
(It is recommended that holes be
drilled from both sides on wood
doors to prevent splitting.) Drill
5/16" (8 mm) holes for screw-
1" (25.4
posts. Drill 1" (25.4 mm) hole in
mm) HOLE
center of door edge for latch.
FOR LATCH
C. Insert latch and tighten
to the door using #8 screws.
NOTE: Latchbolt bevel must
face to closing direction.
C. Cut out jamb
mortise for strike
3/32" (2.4 mm)
deep or until strike
is flush with jamb.
Tighten to the frame
using #12 screws.
CL
I-LS00766
INSIDE ROSE
LATCH
STRIKE
