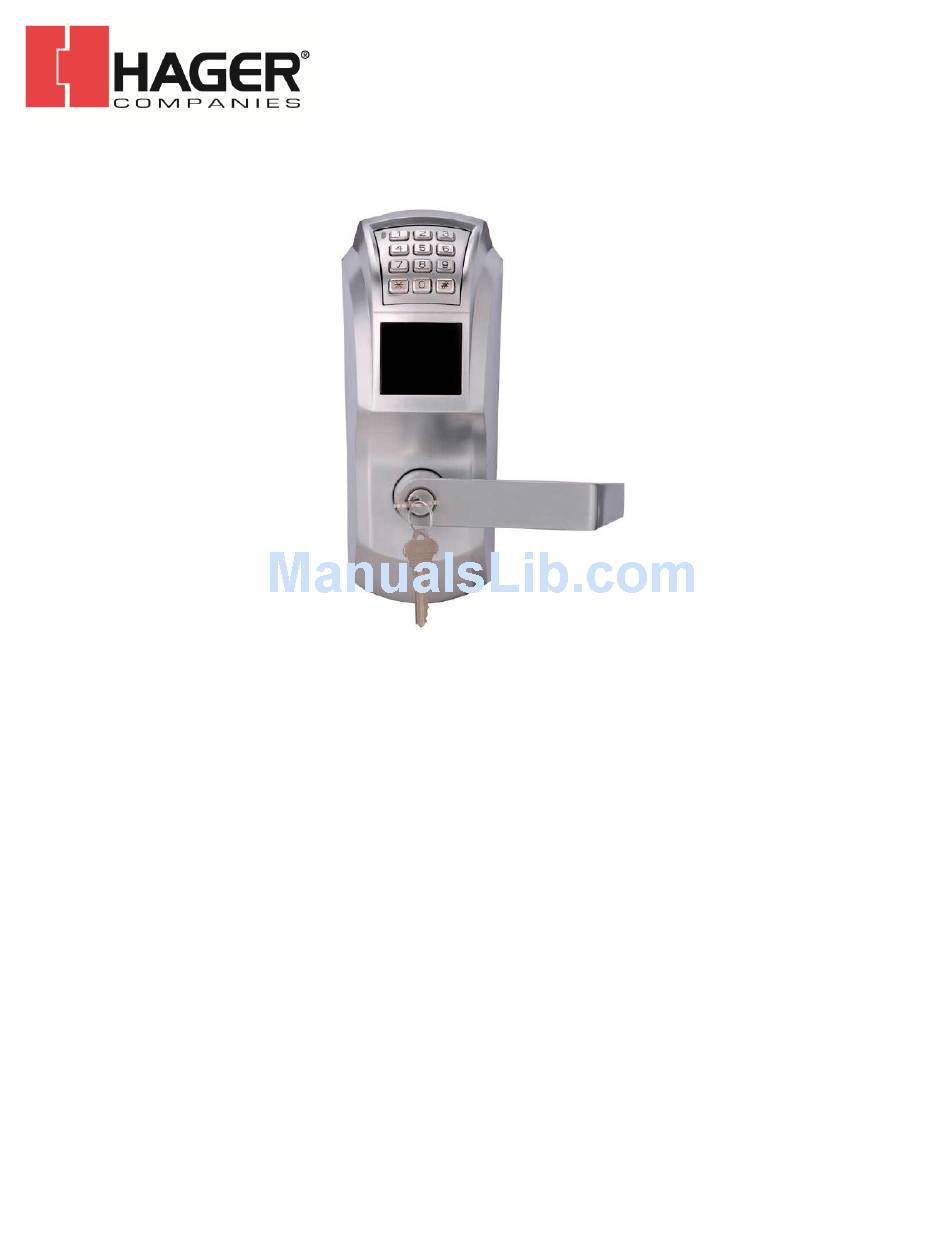

- Page 1 I-LS02110 34K1 & 34K2 SERIES GRADE 1 CYLINDRICAL ELECTRONIC LOCK INSTALLATION INSTRUCTIONS Hager Companies 139 Victor Street St. Louis, MO 63104 (800) 325-9995 (800) 782-0145 (FAX) www.hagerco.com Rev 2, 8/16...
-
Page 2: Table Of Contents
I-LS02110 Table of Contents A. CHECK LIST LOCK COMPONENTS B. DOOR PREPARATION C. FRAME PREPARATION D. ADJUST FOR DOOR THICKNESS E. LOCK HANDING F. INSTALL LOCK HOUSING www.hagerco.com Rev 2, 8/16... -
Page 3: Check List
I-LS02110 A. CHECKLIST (4 each AA Batteries Not Included) Tools Drill Drill Bits: Ø1” (Ø31/32” for drive in latch), Ø13/16”, Ø3/8”, Ø5/16” Hole Saw: Ø2-1/8” Phillips Screwdriver, #2 Hammer Chisel Parts List: Each 34K1 & 34K2 Series lockset includes •... -
Page 4: Lock Components
I-LS02110 LOCK COMPONENTS: A. Battery Cover Interior Lever B. Interior Housing Assembly Interior Rose Assembly C. Interior Mounting Plate K. Interior Rose/Chassis Mntg Plate D. Rubber Gasket L. Latch Bolt E. Electrified Lock Chassis Assembly M. Screw Post F. Exterior Housing Assembly N. -
Page 5: Frame Preparation
I-LS02110 for exterior Housing Assembly mounting. Drill the Ø13⁄16" (20 mm) hole for through wiring. Drill the Ø1" (25 mm) cross bore hole for the latch last. 5. Insert latch into Ø1" hole and hold it parallel to door face, mark outline and remove latch. Chisel 11⁄64"... -
Page 6: Adjust For Door Thickness
I-LS02110 D. ADJUST FOR DOOR THICKNESS Install exterior rose mounting plate onto the lock body by rotating it clockwise. Pay attention to the installation direction of mounting plate’s anti-rotation tabs, they should be pointed toward the door. Anti-Rotation Tabs on the rose mounting plate 1. -
Page 7: Lock Handing
I-LS02110 E. LOCK HANDING 1. Determine the hand of your door. The product is set up for Right Hand by default. TOP VIEW TOP VIEW INTERIOR INTERIOR EXTERIOR EXTERIOR INFORMATIONAL PURPOSES ONLY! NO ACTION REQUIRED! Right Hand Door Right Hand Reverse Door Left Hand Door Left Hand... - Page 8 I-LS02110 2. To change the handing to a left handed door, rotate the exterior and interior rose assemblies 180 degrees. The interior rose is handled in Step 6 on page 10. For the exterior rose, follow the steps below: EXTERIOR ASSEMBLY (a).
-
Page 9: Install Lock Housing
I-LS02110 F. INSTALL LOCK HOUSING 1. The lock body should have been adjusted for proper door thickness as shown in section D on page 5. 2. Install lock body (a) into exterior housing. Be sure the lever rotation grooves line up with the spindle on the lock body and the tailpiece inserts into the cam. - Page 10 I-LS02110 4. Remove the battery compartment cover to gain access to the screws as shown below. Remove the interior escutcheon from the interior mounting plate by removing the uncovered screws as shown. INTERIOR ASSEMBLY 5. Install interior mounting plate with rubber gasket a.
- Page 11 I-LS02110 6. Install interior rose assembly using two (SB1) M5 x 38mm screws, routing the wire as shown. Be sure that the rose assembly is installed in the correct direction for the handing of the door. The lever catch pin should be facing the latch edge of the door. Route Wire (SB6) Lever Catch /...
- Page 12 I-LS02110 8. Install (f) interior lever 9. READ THE CODE USER MANUAL BEFORE BEGINNING OPERATIONS. a. Install four AA alkaline batteries in the (i) battery compartment b. Install (g) battery cover using (h) M5 x 10mm screw previously removed in step 4 Troubleshooting Guide Issue Possible Fixes...
