Single Device
=>40mm
Rev 1, Rev Date: 07/29/14
Vertical Centerline
Two Vertical Rod Devices
=>40mm
Tools and Hardware Required
4.2mm
M5-0.8
Door Handing
=>40mm
For wood doors, drill
3.5mm hole
3.5mm &
4mm
4.2mm drill, M5-0.8 tap
4200 SVR Exit Device
Installation Instructions
I-ED01626
Vertical Rod and Rim Device
56mm
~5mm
50mm
18mm
Drill 5mm thru from device
side. Drill 7mm from other
side (pull side).
Check building and fire codes
to see if your application
requires the use of sleeve
nuts and bolts.
Horizontal Centerline
1000mm
from finished
floor
Page 1 of 6
4.5~7mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for hager 4200 SVR Exit Device
Summary of Contents for hager 4200 SVR Exit Device
-
Page 1: Installation Instructions

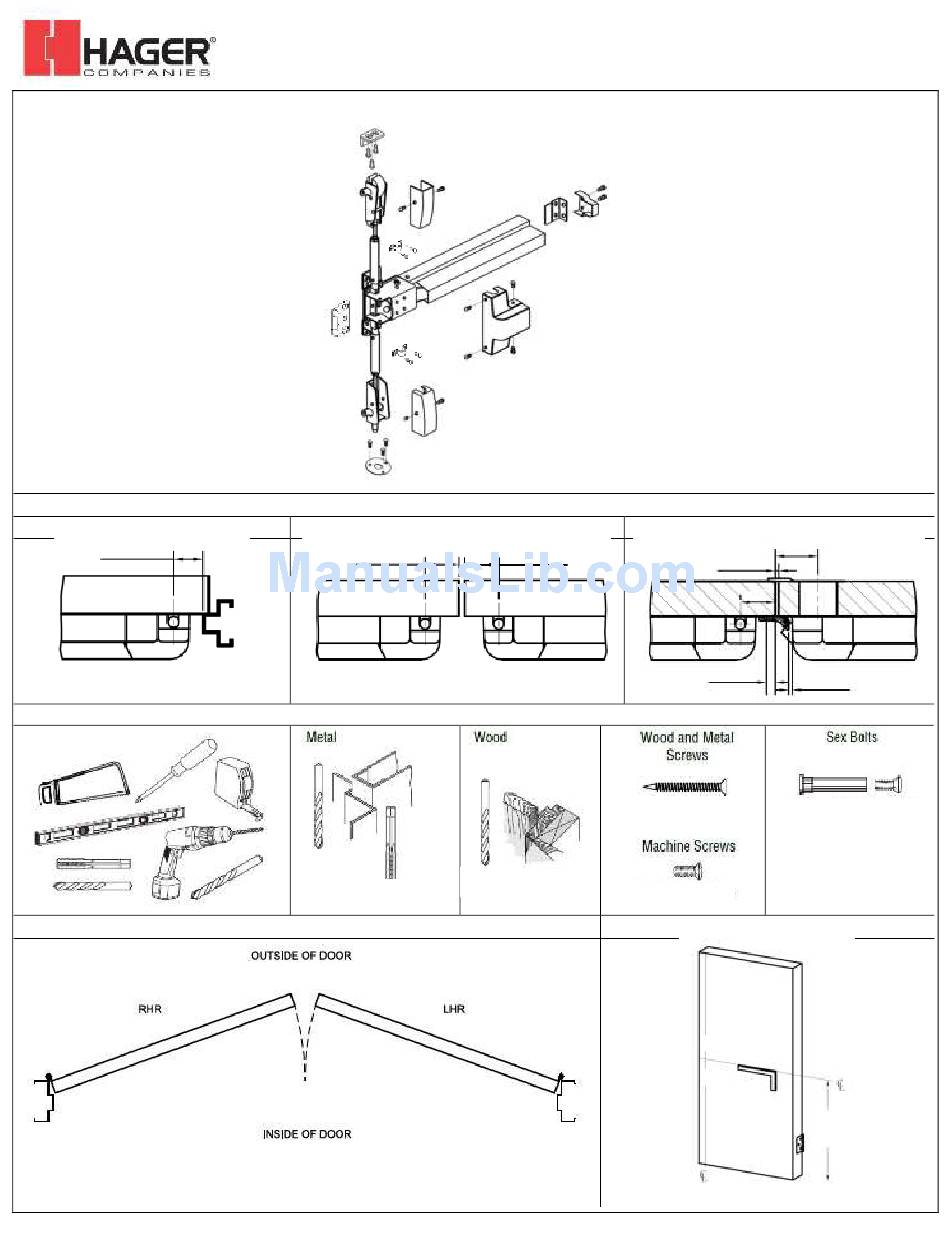

4200 SVR Exit Device Installation Instructions I-ED01626 Vertical Centerline Vertical Rod and Rim Device Single Device Two Vertical Rod Devices 56mm =>40mm =>40mm =>40mm ~5mm 50mm 18mm 4.5~7mm Tools and Hardware Required For wood doors, drill Drill 5mm thru from device 3.5mm hole... -
