Application
When unauthorized egress is initiated, the 2958 delays egress through the door for 15 or 30 seconds.
Meanwhile, the person exiting must wait while personnel or security respond. An integral digital countdown
display and voice commands inform the person intending to exit of the seconds remaining to unlock. The door
unlocks after 15 or 30 seconds have elapsed, permitting egress. A signal from the fire/life safety system will
release the lock for uninhibited egress in an emergency.
Applications include:
·
Restricting the egress of patients for their own safety.
·
Restricting the egress of commercial center patrons for security application needs.
·
Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs
2958 Operational Description (NFPA-101)
The 2958 operation complies with the following building and fire codes: NFPA 101; NFPA 1-UFC; UBC; IBC; IFC;
SBC; California Building Code. Listings: UL Listed: Special Locking Arrangements and Auxiliary Locks; California
State Fire Marshal (CSFM) Listed.
The door is normally closed & secured and/or latched. The model 2958 secures the door in the locked condition,
and the display shows the preset delay time.
Activation of the 2958 is made by releasing the door latch and applying up to 15 lbs. of pressure to the door,
giving a pre-activation warning tone. (A 1 or 2 second nuisance delay will prevent false activation of the alarm).
When the nuisance delay time has been exceeded, the 2958 begins the irreversible door release cycle. At this
time the display continues to count down, the verbal warning continues and an alarm output is provided to alert
personnel of an unauthorized exit.
The integral digital countdown display and voice commands inform the person intending to exit of the seconds
remaining to unlock. The 2958 will release the door after the 15 or 30 second delay cycle has expired, allowing
free egress. A steady warning tone with the voice command "Exit Now" will sound until the MagLock is reset by
authorized personnel.
2958 Operational Description (BOCA/Chicago)
The 2958 operation complies with BOCA National Building Code and the Chicago Building Code: UL Listed,
Special Locking Arrangements and Auxiliary Locks.
The releasing operation of the 2958 is the same as described above, with the exception that the door relocks
automatically 30 seconds after closure. Each time the door is open before 30 seconds has elapsed the relock
timer resets and relocks the door in 30 seconds.
3/28/12

INSTALLATION INSTRUCTIONS

DELAYED EGRESS MAGLOCK
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995
2958 / 2958T
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
KEEP PUSHING. THIS DOOR
WILL OPEN IN 15 SECONDS.
ALARM WILL SOUND.

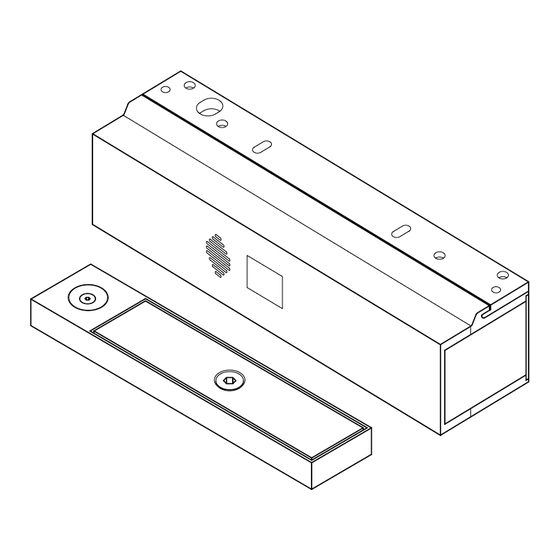

2958 Delayed Egress MagLock
Installation Instructions
California Building
Code Compliant
S-EA00051
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2958 Delayed Egress MagLock and is the answer not in the manual?

Questions and answers

Summary of Contents for hager 2958 Delayed Egress MagLock

  • Page 1: Installation Instructions

    30 seconds after closure. Each time the door is open before 30 seconds has elapsed the relock timer resets and relocks the door in 30 seconds. 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 2: Included In Package

    PLACE AGAINST LOCK PLACE AGAINST LOCK JAMB FOR L.H. DOORS JAMB FOR R.H. DOORS 1/4” DIA GUIDE PIN HOLE 9/16” DEEP PLACE AGAINST DOOR Center punch on mark TEMPLATE 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 3 - #10 self drill/tap screws provided for up to 1/8" thick metal applications - For applications with heavier gauge material, drill (#21) and tap for #10-32 machine screws. 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 4 Figure 2C. REGULAR, FILLER PLATE & ANGLE BRACKET DETAILS ANGLE FILLER BRACKET PLATE Figure 1A Figure 1B Figure 1C REGULAR WITH FILLER PLATE WITH ANGLE BRACKET 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 5 REMOVE J6 ONLY IF A FIRE PANEL OR SMOKE DETECTION SYSTEM IS CONNECTED TO [FP] INPUT (Pg. 8) Digital Keypad (OPTIONAL) OPTIO 2900 Series Power Key Switch Supply Reset Station (OPTIONAL) 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 6 OPTI 2900 Series Power Supply RLY1 [TRIG [ LOCK ] [ PWR ] OUT ] NO C NC NO C NC NO C NC NO C SLAVE 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 7: System Operation

    CONNECTED TO [FP] INPUT (Pg. 8) Digital Keypad (OPTIONAL) OPTI Keep Close Key Switch Closed 2900 Series Reset Station Override Unlock Unlock Power (OPTIONAL) Supply Patient Protection System 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 8 RLY] OUTPUT [RED ALARM OUTPUT RLY] EXTERNAL TRIGGER [RM TRIG] SWITCH INPUT EXTERNAL RESET SWITCH [RESET] INPUT REQUEST TO EXIT [REX] INPUT INSTANT BYPASS OVERRIDE [IBO] INPUT 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 9: Jumper Settings

    MSG1: (Female Voice) “Exit in 12 seconds, facility staff has been notified...Exit in 5 seconds...exit now...” MSG2: (Male Voice) “Exit in 12 seconds, security has been alerted...Exit in 5 seconds...exit now…” Both messages repeat “Exit now” until the lock is reset. 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 10 Depending on the accuracy of the alignment, the trigger does not have to physically touch the sensor to operate correctly. TRIGGER SENSOR 2958 LOCK BODY 1581S HORIZONTAL ARMATURE ALIGNMENT 2958 ARMATURE TRIGGER VERTICAL ALIGNMENT 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 11: Specifications

    GWXT, GWXT7 - Auxiliary Locks - UL,cUL Listed SBC Standard Building Code FWAX - Special Locking Arrangements - UL Listed 2958BD BOCA National Building Code compliant Chicago Building Code compliant 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
  • Page 12 DOOR CAN BE OPENED IN 15 DOOR CAN BE OPENED IN 15 SECONDS. SECONDS. Switch Hinge Sense Bar Trigger Non-Latching Latching Exit Device with 4801 Built-in Switch Kit Trigger 3/28/12 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 ● (800) 325-9995...
