Adjust Device Angle - Dahua DH-IPC-HF8242FP-FR Quick Start Manual

Note
Please implement the step when it needs to use RS232 port, RS485 port, and alarm input output
or power reverse output.

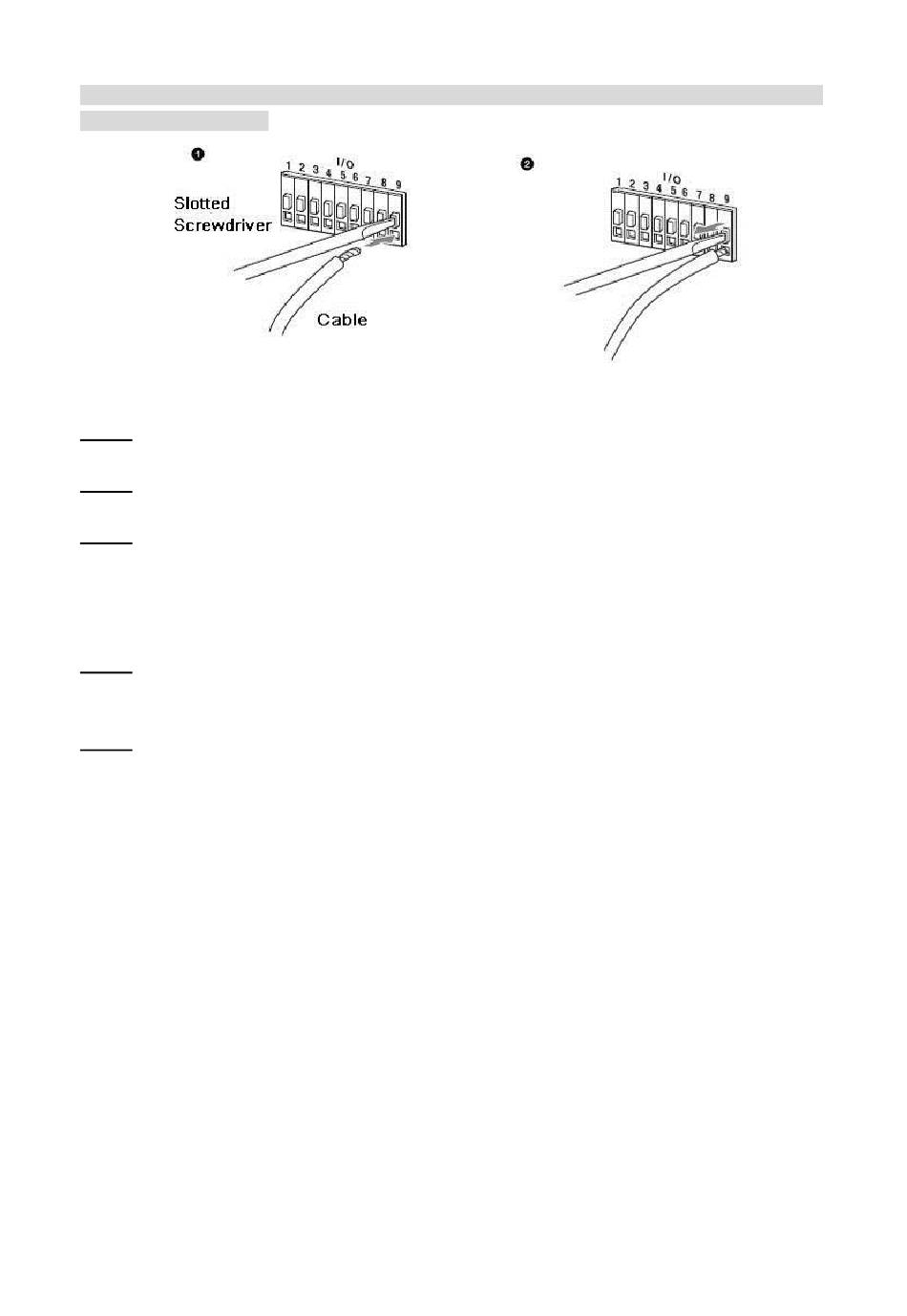

Figure 2-6
Step 1
Use the small slotted screwdriver to press the corresponding button of cable groove.
Step 2
Insert the cable into the groove.
Step 3
Release the screwdriver which presses the groove button and complete cable installation.

2.4 Adjust Device Angle

Step 1
Loosen the device adjusting screw, adjust the device up and down, and set the monitoring
direction of the device according to the requirement.
Step 2
Tighten the adjusting screw firmly.
