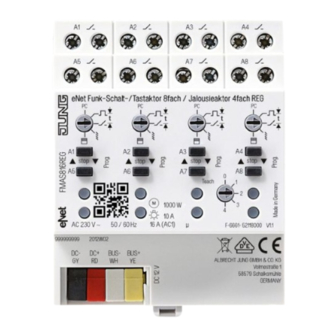

Enet radio switch/blinds actuator, 8/4-channel, for rail mounting
Hide thumbs

Advertisement

Table of Contents

eNet
Radio switch/blinds actuator, 8/4-channel, for rail mounting
Radio switch/blinds actuator, 8/4-channel, for rail mounting
Art. No. : FM AS 816 REG
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Do not connect any three-phase motors. Device can be damaged.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
Danger of electric shock on the SELV/PELV installation. Do not connect loads for mains
voltage and SELV/PELV together on a single switch actuator.
For parallel connection of several motors to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
The motors may be destroyed.
Use only venetian blind motors with mechanical or electronic limit switches. Check the
limit switches for correct adjustment. Observe the specifications of the motor
manufacturers. Device can be damaged.
Fire hazard! Operation exclusively with the power supplies listed under accessories
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

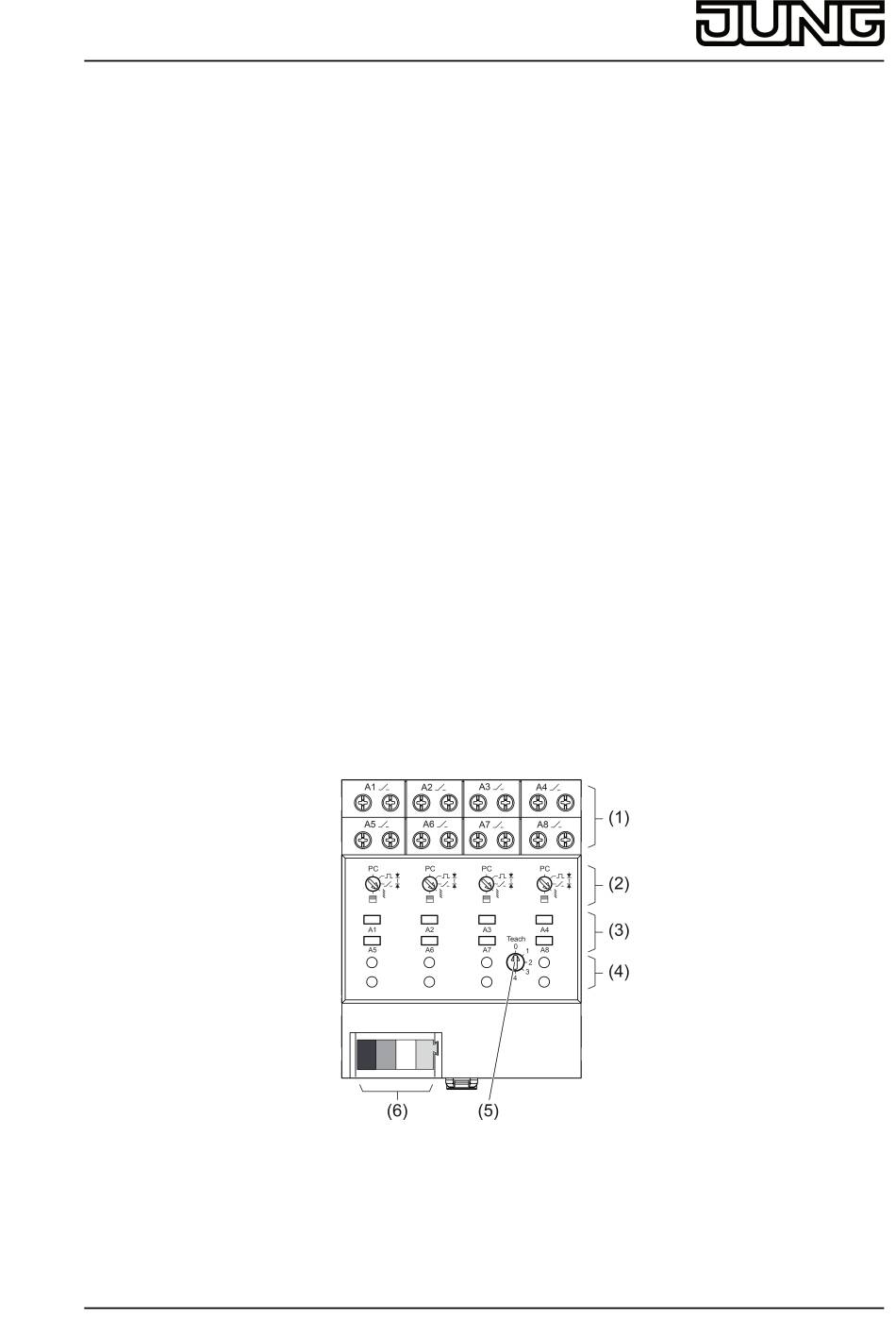

(1) Load connection A1...A8
(2) Operating mode switch for outputs A1+A5, A2+A6, A3+A7, A4+A8
(3) Button Prog A1...A8
(4) Status LED A1...A8
82581913
J:0082581913
Figure 1
1/18
13.03.2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM AS 816 REG and is the answer not in the manual?

Questions and answers

Related Manuals for Jung FM AS 816 REG

Summary of Contents for Jung FM AS 816 REG

  • Page 1 Radio switch/blinds actuator, 8/4-channel, for rail mounting Radio switch/blinds actuator, 8/4-channel, for rail mounting Art. No. : FM AS 816 REG Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
  • Page 2 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting (5) Teach Switch for commissioning in the operating mode Venetian blind/rolling shutter Bus line connection 3 Function System information This device is a part of the eNet system. High transmission reliability at a radio frequency of 868 MHz is achieved by the transmission behaviour and bidirectional data transfer.

  • Page 3: Operation

    eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting i If settings are changed with the eNet server, operation and signalling could vary from what is described here. i The parameter list is in the Internet in the documentation for this device. Supplementary functions with eNet server: Update of the device software Reading of error memory...
  • Page 4 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Connect bus line Figure 2: Connection diagram of bus line Labelling / Colour Connection DC– / GY dark grey Power supply – DC+ / RD red Power supply + Bus– / WH white Data cable –...
  • Page 5 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Figure 3: Current carrying capacity of neighbouring outputs Connecting loads in operating mode Switching/Toggling Figure 4: Connection example of switching loads A1...A4 Connect loads as shown in the connection example of switching loads (figure 4). 82581913 5/18 13.03.2014...
  • Page 6 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Connecting loads in operating mode Venetian blind/rolling shutter Figure 5: Connection example of Venetian blind loads Connect loads as shown in the connection example of Venetian blind loads (figure 5). Presetting the operating mode CAUTION! Danger of destruction from wrong mode of operation.
  • Page 7 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Operating mode and parameter set with eNet server.*) Operating mode buttons Switching mode of operation Commission - determine running time, activate Teach switch Commissioning - determine time for slat change-over time, activate Teach switch Blind mode of operation Operating mode rolling shutter, awning If the operating mode switch is turned from the position PC to another operating mode, the...
  • Page 8 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting When the slats have been fully changed over, turn the operating mode switch to the O position. The running times are saved and the blind/shutter moves to the upper end position. Turn back Teach switch to 0 position. Otherwise, it will not be possible to operate the output anymore.
  • Page 9 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting i The connections in the radio transmitters are preserved and must be deleted separately. Load is switched off. Press the Prog button for at least 20 seconds. The load switches on. The status LED flashes after 4 seconds and the load switches off. The status LED flashes faster after 20 seconds.

  • Page 10: Parameter List

    eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting 6.2 Parameter list Settings window Device settings Parameters Setting options, Basic Explanations setting Manual commissioning On, Off Blocks manual commissioning Basic setting: On for all device channels. In the "Off" setting, the device cannot be reset to the factory setting.
  • Page 11 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Operating mode Switching Switching Buttons After switch-on, the device Flashing remains stable in the "On" Continuous on state, and stable in the "Off" Continuous off state after switch-off. Basic setting: Switching Buttons The device switches "On"...
  • Page 12 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Switch-on delay 0 s … 24 h The load switches on after a Basic setting: 0 s delay. Repeated switch-on commands restart the delay time. If the load has not yet been switched on due to the delay when a switch-off command comes, then the load will remain off.
  • Page 13 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Timer behaviour, voltage Specifies whether the timers return Restart for switch-on delay, switch-off Basic setting: Off delay and run-on time remain off after voltage return or whether they restart. Directly connected to the parameters "Switch-on delay", "Switch-off delay"...
  • Page 14 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Switch-on on brightness On, Off Allows automatic switch-on undershoot Basic setting: Off according to the brightness. If the parameter is On, then the light controller switches on automatically when the brightness setpoint is greatly undershot.
  • Page 15 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Operating mode Roller shutter Roller shutter Venetian blind A rolling shutter or an awning Awning is controlled for which the Basic setting: Roller shutter Fabric stretching function is required. Venetian blind A Venetian blind is controlled. Awning An awning is controlled for which the Fabric stretching...
  • Page 16 eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Priority, wind alarm 0...4 Specifies the priority for Basic setting: 3 recalling and removing a scene of type Wind alarm for the channel. Priority, sun protection 0...4 Specifies the priority for Basic setting: 0 recalling and removing a scene of type Sun protection for the channel.

  • Page 17: Troubleshooting

    eNet Radio switch/blinds actuator, 8/4-channel, for rail mounting Information window During channel selection in the Information window, the following settings can be made or values displayed. Display value / Switching Explanations Switching cycle counter Display of the switching cycles with the factor 10, e.g.

  • Page 18: Warranty

    We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
