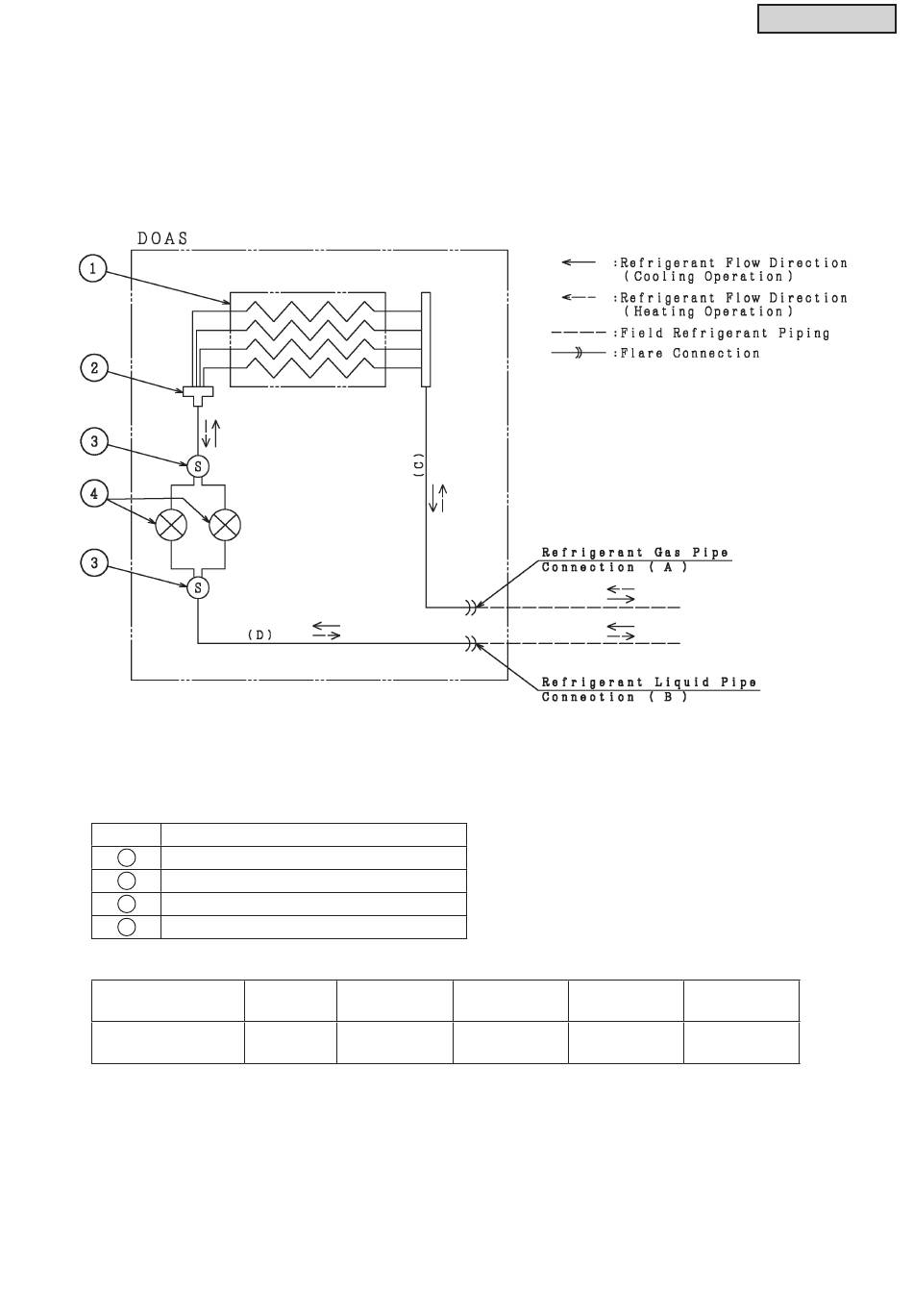

2.11 Control System

2.11.1 Refrigerant System

Model: (H,Y)DOA096B21S
Mark
Heat Exchanger
1
Distributor
2
Strainer
3
Electronic Expansion Valve
4
Model
(H,Y)DOA096B21S
TC-16005-rev.2
Part Name
(A) Gas Pipe
Distributor
Connection
f7/8
9 Pass
(22.2)
(B) Liquid Pipe
(C) OD×T
Connection
f3/8 f1×t0.063
(9.52) (25.4×1.6)
DOAS
Unit: inch (mm)
(D) OD×T
f1/2×t0.039
(12.7×1.0)
