3.3 Infrared (IR) Receiver Kit: CWDIRK01

This IR receiver kit is installed with the wall mount to use with the wireless controller.
3.3.1

Specifications

Model
Outer Dimension
< W × H × D >

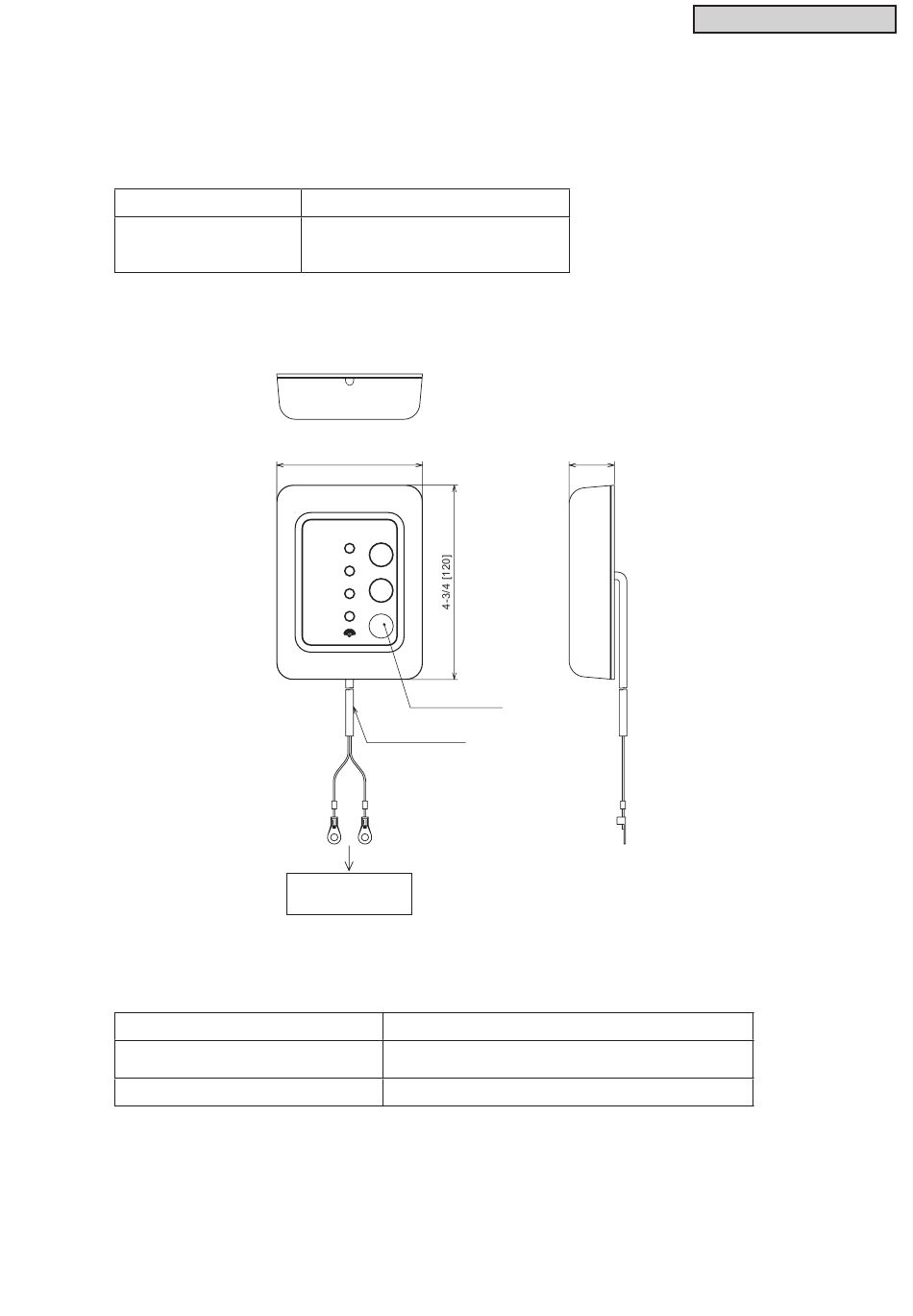

3.3.2

Dimensions

3.3.3

Applicable Models

Model
Applicable Indoor Unit Model
Applicable Wireless Controller
TC-16005-rev.2
CWDIRK01
3-9/16 × 4-3/4 × 1-1/8 inch
(90 × 120 × 28 mm)
3-9/16 [90]
EMERGENCY
RUN
COOL
DEF
HEAT
FILTER
TIMER
IR Receiver Part
Accessory Cable
(about 16.4ft [5m])
To Terminal Block (A, B)
in Electrical Control Box
of Indoor Unit
(Ducted and Wall Mount Type)
1-1/8 [28]
CWDIRK01
General-Purpose
CIR01
OPTIONAL PARTS
Unit: inch [mm]
3-3
