2
The charger detects that the battery is connected and starts charging. If start-up delay is
activated, then charging will start at the end of the set delay time. For more information,
see "Configuration mode" in the "Display" chapter.

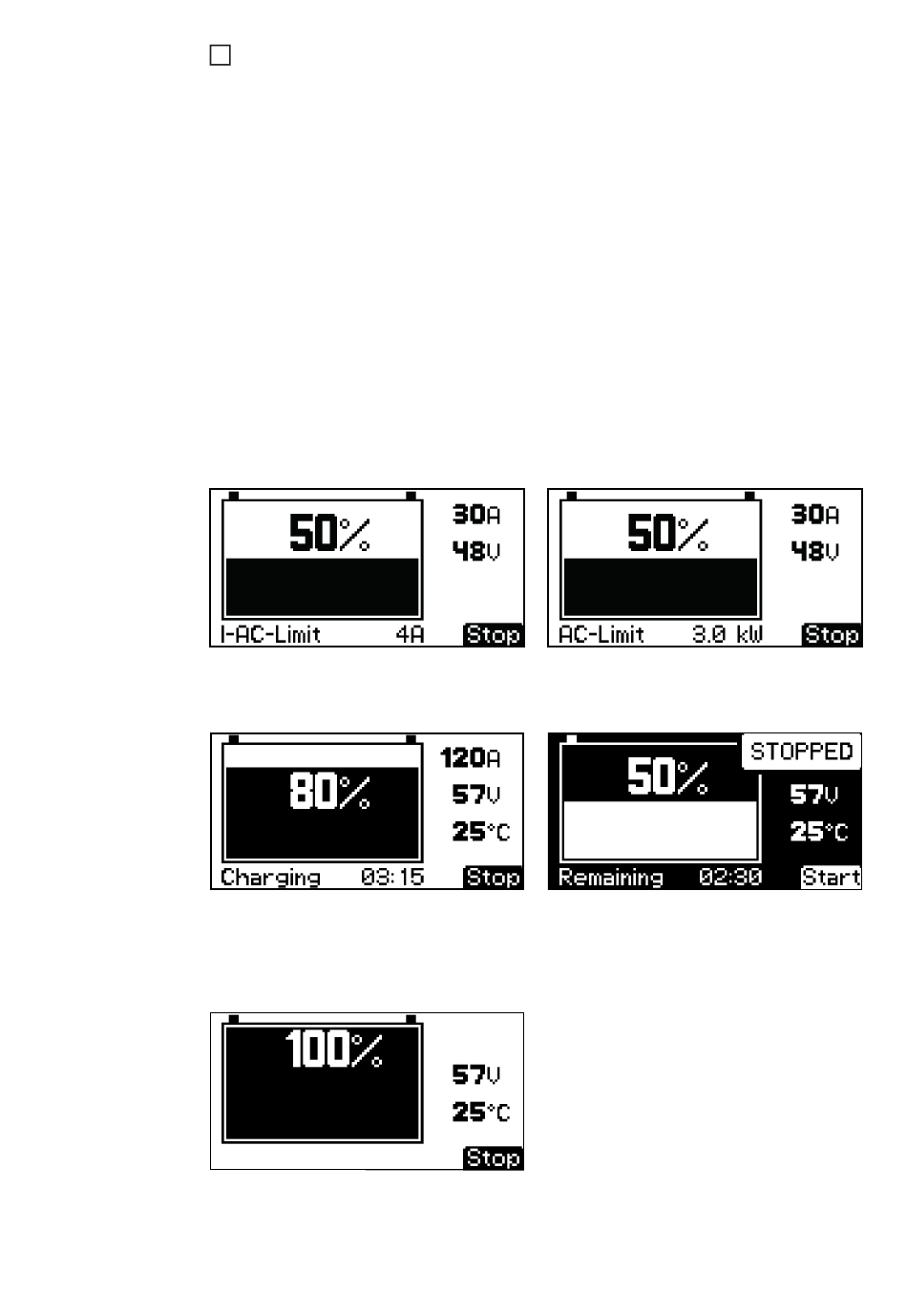

During the charging process the display shows the following values:
-
-
-
-
-
-
-
When the primary current limit or calendar-based power limitation are enabled, the respec-
tive limit value is shown on the display while charging is in progress. If both functions are
enabled at the same time, the lower limit is shown.
If the blue indicator is set to "state of charge" (see "Additional functions" in the "Display"
chapter), the blue indicator lights up once the state of charge exceeds a defined % value.
The battery symbol indicates the current state of charge. The battery state of charge is stat-
ed as a percentage.
If the charging process is interrupted because the "Stop / Start" button was pressed, the
display shows that the charging process has been stopped.
26
Plug in the charging plug
Current charging current (A)
Current charging voltage (V)
Battery temperature (°C / °F)
Current state of charge (%)
The time (hh:mm) since charging started
The remaining charging time (hh:mm)
(provided the battery is sending this information to the charger)
If set:
Primary current limit (A)
Power limitation through calendar setting (kW)
As soon as the battery is fully charged, the
green "Battery charged" indicator lights up
on the control panel and the charging cur-
rent is no longer displayed.
