THANK YOU
Thank you for purchasing the VDM-CA-IBEAM-BK I-Beam ceiling mount.
Please read these instructions thoroughly before installing or assembling these products.
PRODUCT FEATURES
• Fits I-beam flange sizes between 4" and 8"
• Accepts 1 1/2" NPSM couplings and pipe extensions
• 350 lb. weight capacity
Instruction Sheet

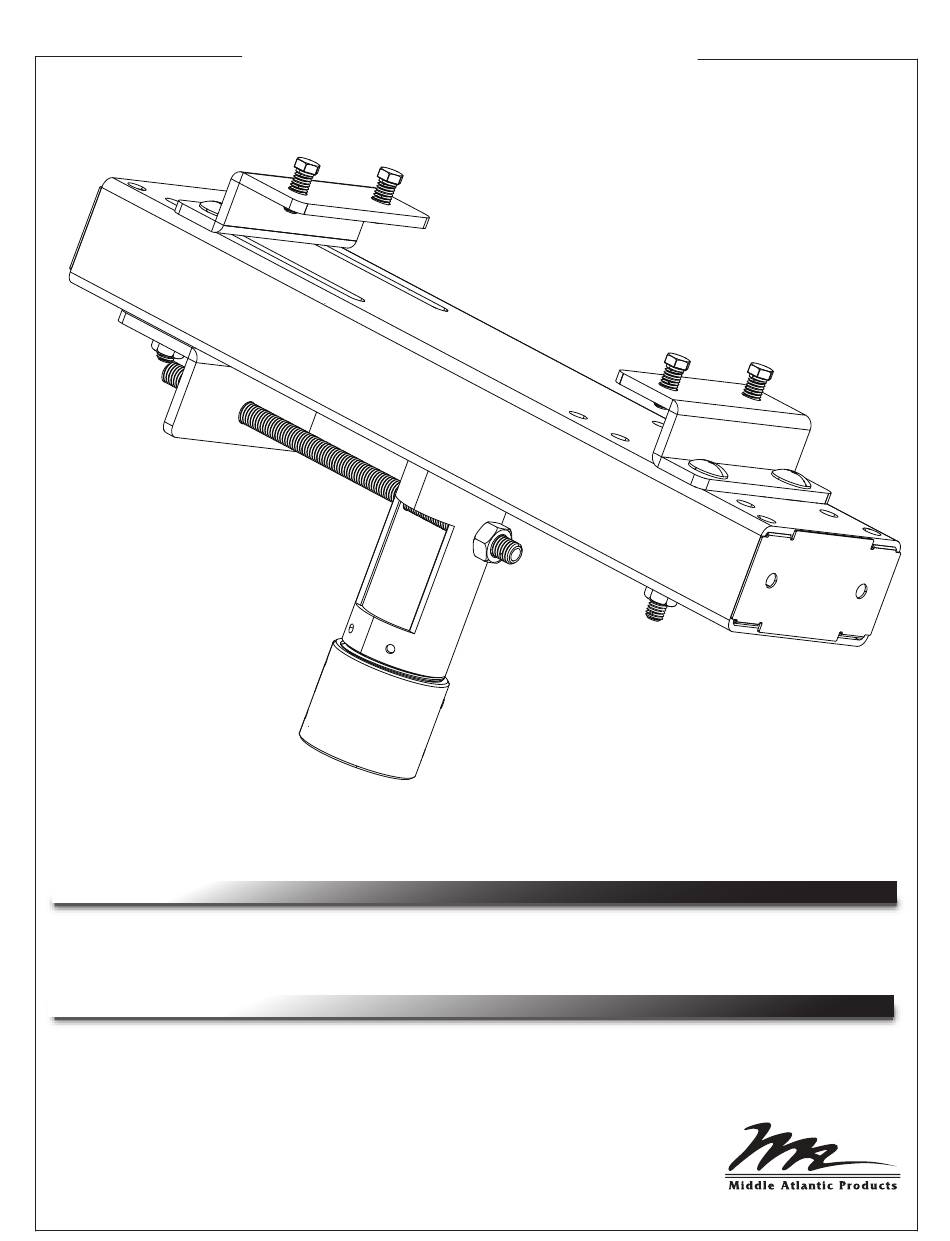

VDM-CA-IBEAM-BK
I-BEAM CEILING MOUNT
I-00839
Rev -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Middle Atlantic Products VDM-CA-IBEAM-BK
Summary of Contents for Middle Atlantic Products VDM-CA-IBEAM-BK
- Page 1 Instruction Sheet VDM-CA-IBEAM-BK I-BEAM CEILING MOUNT THANK YOU Thank you for purchasing the VDM-CA-IBEAM-BK I-Beam ceiling mount. Please read these instructions thoroughly before installing or assembling these products. PRODUCT FEATURES • Fits I-beam flange sizes between 4” and 8” • Accepts 1 1/2” NPSM couplings and pipe extensions •...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Heed all warnings. • Clean only with dry cloth. • Keep these instructions. • Follow all instructions. • Only use attachments/accessories specified by the manufacturer. DANGER HAZARDOUS VOLTAGE: The lightning flash with the WARNING: A warning alerts you to a situation that could result arrowhead symbol, within an equilateral triangle is intended to alert the in serious personal injury or death.
- Page 3 WEIGHT RATINGS Model Product Weight Weight Rating VDM-CA-IBEAM-BK 9.97 lbs. (4.52 kg) 350 lbs. (158.8 kg) Maximum Total Rated Load SUPPLIED COMPONENTS AND HARDWARE (2x) L-Bracket I-Beam Mount Clamp Bracket (4x) (2x) (4x) 8mm Hex (4x) 10mm Hex Nut 8mm Hex Nut...
- Page 4 I-BEAM CEILING MOUNT PRE-ASSEMBLY 1. Align I-Beam with the center of I-Beam bracket (A) and select the set of holes closest to flange of beam which will be used to install clamp brackets as shown. (FIGURE A) FIGURE A 2. Loosely install all hardware and brackets to I-Beam mount ensuring clamp bracket (B) and L-Bracket (C) slides freely in adjustment slots as shown.
- Page 5 I-BEAM CEILING MOUNT INSTALLATION 1. Place I-Beam ceiling mount assembly over I-Beam flange and push clamp brackets together to clamp mount assembly in place. (FIGURE C) FIGURE C 2. Insert threaded rod (E) through pipe support and L-Bracket (C) as shown. (FIGURE D) 3.
- Page 6 - customerservicecanada@middleatlantic.ca Factory Distribution USA: NJ - CA - IL Canada: ON - BC At Middle Atlantic Products we are always listening. Your comments are welcome. Middle Atlantic Products is an ISO 9001 and ISO 14001 Registered Company. Page 6...
