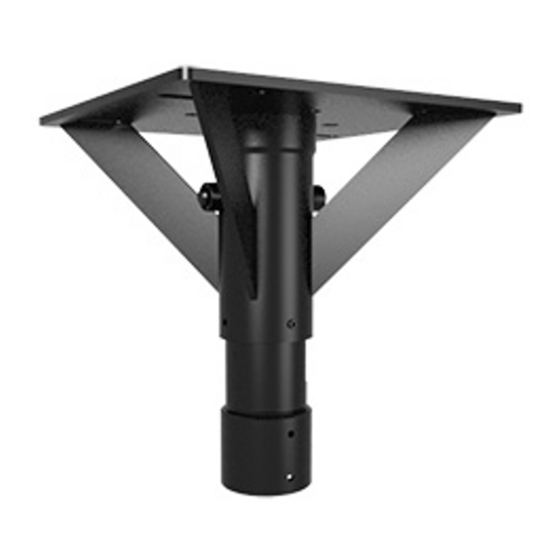

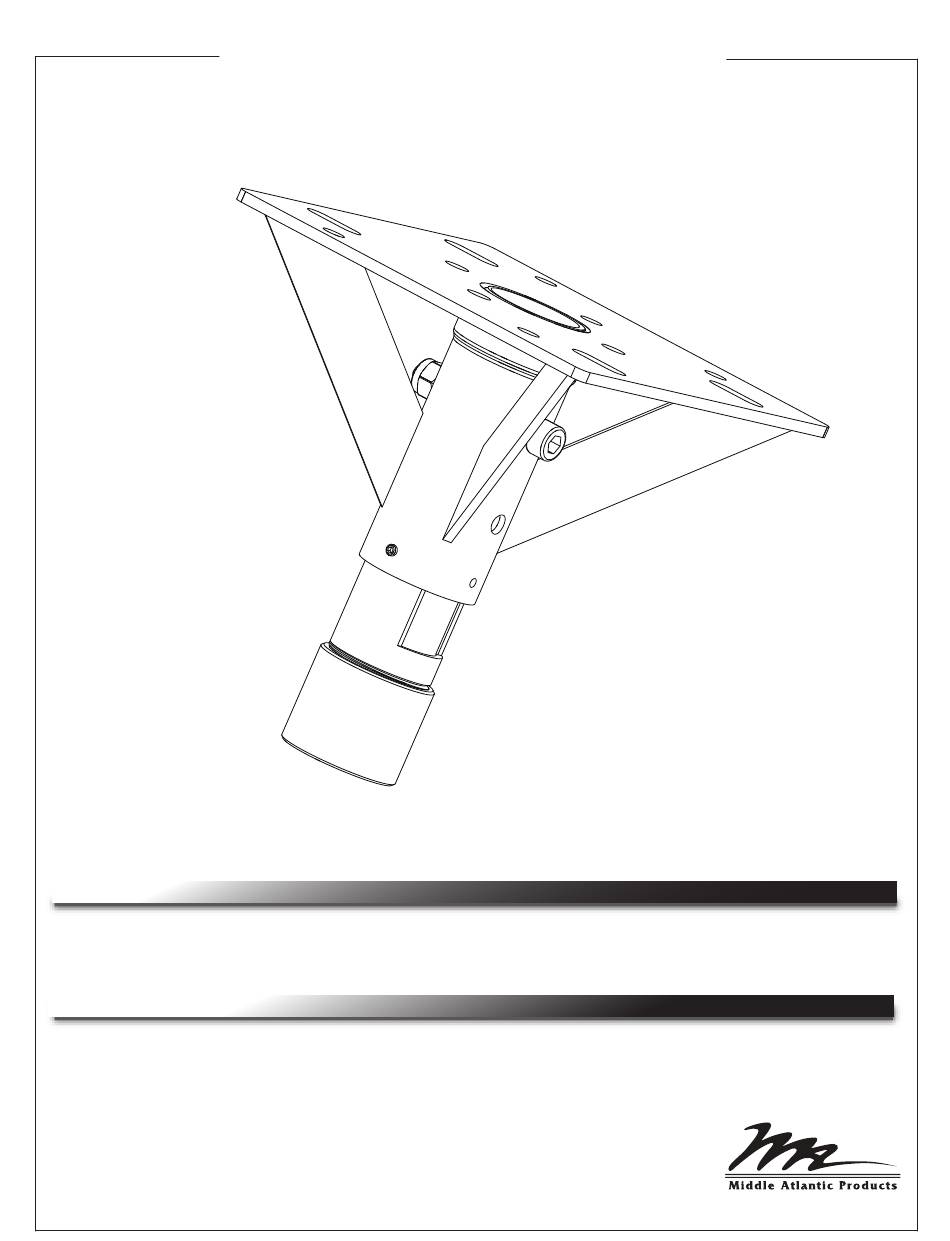

VDM-CA-8X8-HC-BK
HIGH CAPACITY UNISTRUT MOUNT
THANK YOU
Thank you for purchasing the VDM-CA-8X8-HC-BK high capacity unistrut ceiling mount.
Please read these instructions thoroughly before installing or assembling these products.
PRODUCT FEATURES
• Accepts 1 1/2" NPSM couplings and pipe extensions
• 500 lb. weight capacity
Instruction Sheet
I-00835
Rev -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Middle Atlantic Products VDM-CA-8X8-HC-BK
Summary of Contents for Middle Atlantic Products VDM-CA-8X8-HC-BK
- Page 1 VDM-CA-8X8-HC-BK HIGH CAPACITY UNISTRUT MOUNT THANK YOU Thank you for purchasing the VDM-CA-8X8-HC-BK high capacity unistrut ceiling mount. Please read these instructions thoroughly before installing or assembling these products. PRODUCT FEATURES • Accepts 1 1/2” NPSM couplings and pipe extensions •...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Heed all warnings. • Clean only with dry cloth. • Keep these instructions. • Follow all instructions. • Only use attachments/accessories specified by the manufacturer. DANGER HAZARDOUS VOLTAGE: The lightning flash with the WARNING: A warning alerts you to a situation that could result arrowhead symbol, within an equilateral triangle is intended to alert the in serious personal injury or death.
- Page 3 WEIGHT RATINGS Model Product Weight Weight Rating VDM-CA-8X8-HC-BK 7.05 lbs. (3.20 kg) 500 lbs. (226.8 kg) Maximum Total Rated Load SUPPLIED COMPONENTS AND HARDWARE Unistrut Mount Pipe Adapter Coupler Adapter Pin (4x) (4x) (4x) Unistrut Nut Hex Head Screw Hex Nut...
- Page 4 8X8 UNISTRUT INSTALLATION 1. Thread pipe adapter (B) into unistrut mount (A) until the pipe adapter pin holes align with pin hole in ceiling mount as shown. (FIGURE A) 2. Thread coupler (C) onto pipe adapter (B) as far as it will go. Align Pin Holes FIGURE A 3.
- Page 5 8X8 UNISTRUT INSTALLATION 1. Insert (4x) unistrut nuts (F) in (2x) pre-hung unistrut channels (not supplied) spaced 4” or 6” apart by pressing nut into channel groove lengthwise, and then turning 90˚ to seat nut into channel. (FIGURE C) 2. Align unistrut nuts (F) with mounting slots in unistrut mount assembly. 3.
- Page 6 - customerservicecanada@middleatlantic.ca Factory Distribution USA: NJ - CA - IL Canada: ON - BC At Middle Atlantic Products we are always listening. Your comments are welcome. Middle Atlantic Products is an ISO 9001 and ISO 14001 Registered Company. Page 6...
