ASSEMBLY
1) Attach the rails to the top and bottom using
the Flange Nuts. (DO NOT TIGHTEN)
2) Install and tighten the 10-32 Flat Head
Allen Screws into the rack rail.
3) Tighten all of the Flange Nuts.
4) Mount the assembled rack to the wall with
the customer supplied hardware.
STEP 1
FLANGE NUT
THANK YOU

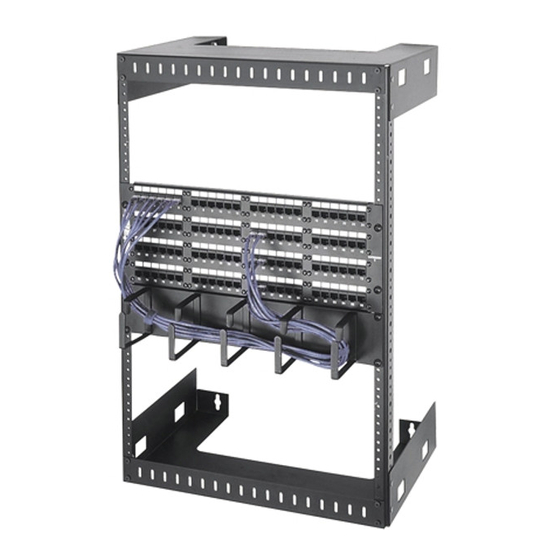

Thank you for purchasing the WM SERIES Wall Mount Rack. Please read these instructions
thoroughly before installing / assembling this product.
Instruction Sheet
WM Series
Wall Mount Rack
STEP 2
I-2212
Rev F
