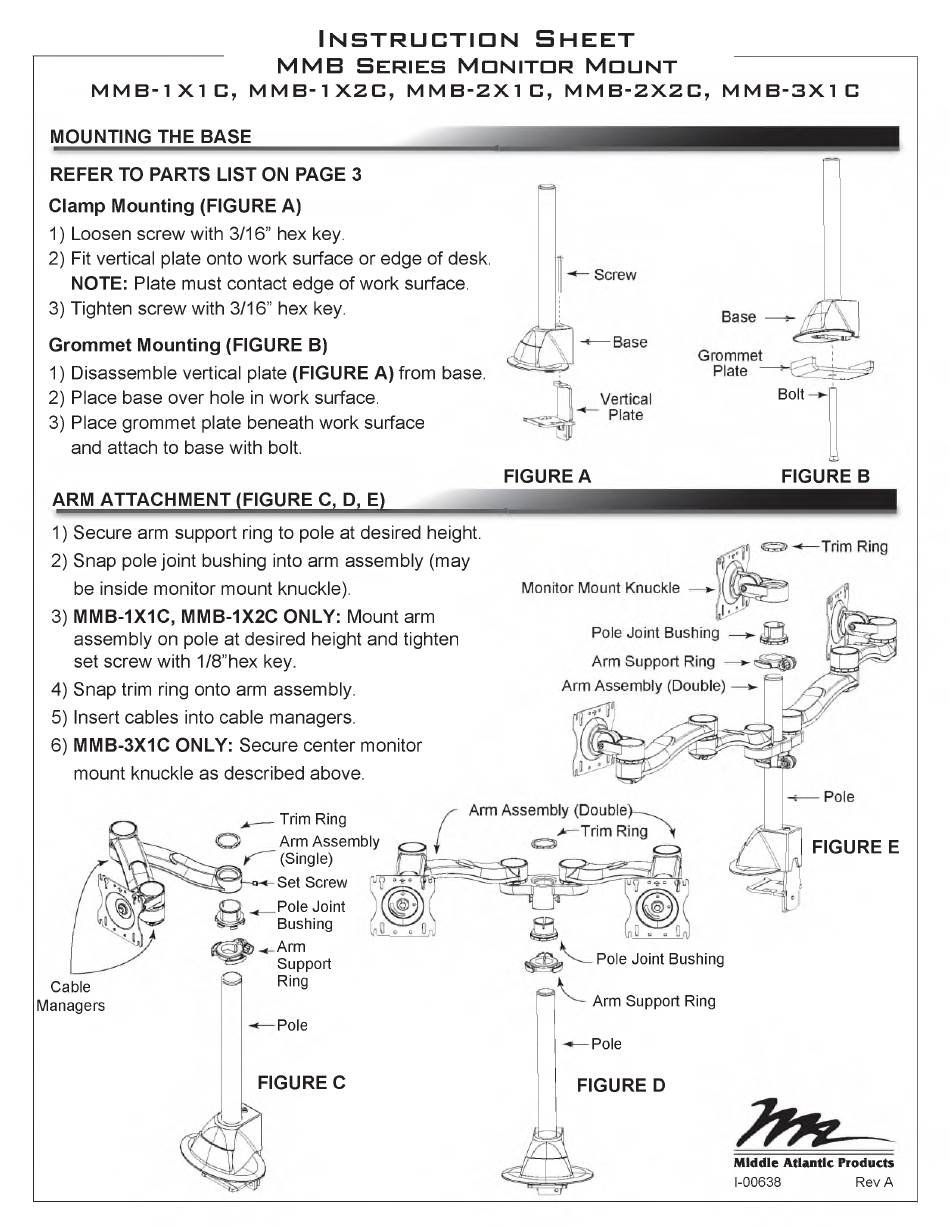

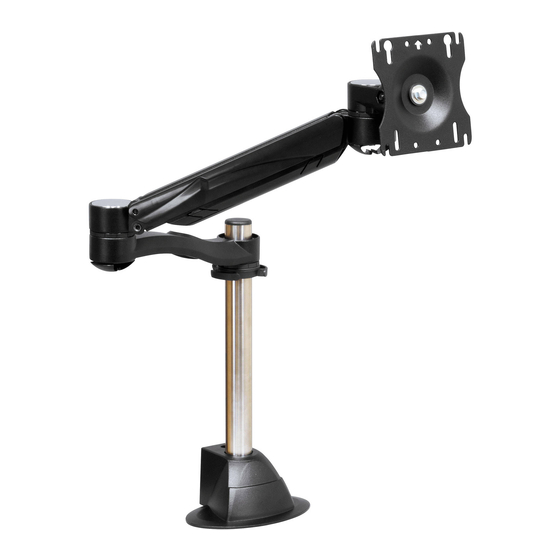

Middle Atlantic Products MMB-1X1C Instruction Sheet

M M B - 1 X 1 C , M M B - 1 X 2 C , M M B - 2 X 1 C , M M B - 2 X 2 C , M M B - 3 X 1 C

MOUNTING THE BASE

REFER TO PARTS LIST ON PAGE 3
Clamp M ounting (FIGURE A)
1) Loosen screw with 3/16" hex key.
2) Fit vertical plate onto work surface or edge of desk.
NOTE: Plate must contact edge of work surface.
3) Tighten screw with 3/16" hex key.

Grommet Mounting (FIGURE B)

1) Disassemble vertical plate (FIGURE A) from base.
2) Place base over hole in work surface.
3) Place grommet plate beneath work surface
and attach to base with bolt.

ARM ATTACHMENT (FIGURE C, D, E)

1) Secure arm support ring to pole at desired height.
2) Snap pole joint bushing into arm assembly (may
be inside monitor mount knuckle).
3) MMB-1X1C, MMB-1X2C ONLY: Mount arm
assembly on pole at desired height and tighten
set screw with 1/8"hex key.
4) Snap trim ring onto arm assembly.
5) Insert cables into cable managers.
6) MMB-3X1C ONLY: Secure center monitor
mount knuckle as described above.
Cable
Managers
I
n s t r u c t i o n
M M B S
e r i e s
Trim Ring
Arm Assembly
(Single)
Set Screw
Pole Joint
Bushing
Arm
Support
Ring
Pole
FIGURE C
S
h e e t
M M
d n i t d r d u n t
FIGURE A
Pole Joint Bushing
Arm Support Ring
: — Pole
FIGURE D
Bolt
FIGURE B
FIGURE E
Middle Atlantic Products
I-00638 Rev A
