STM32 (STEVAL-PCC012V1) and EVALST7590-1

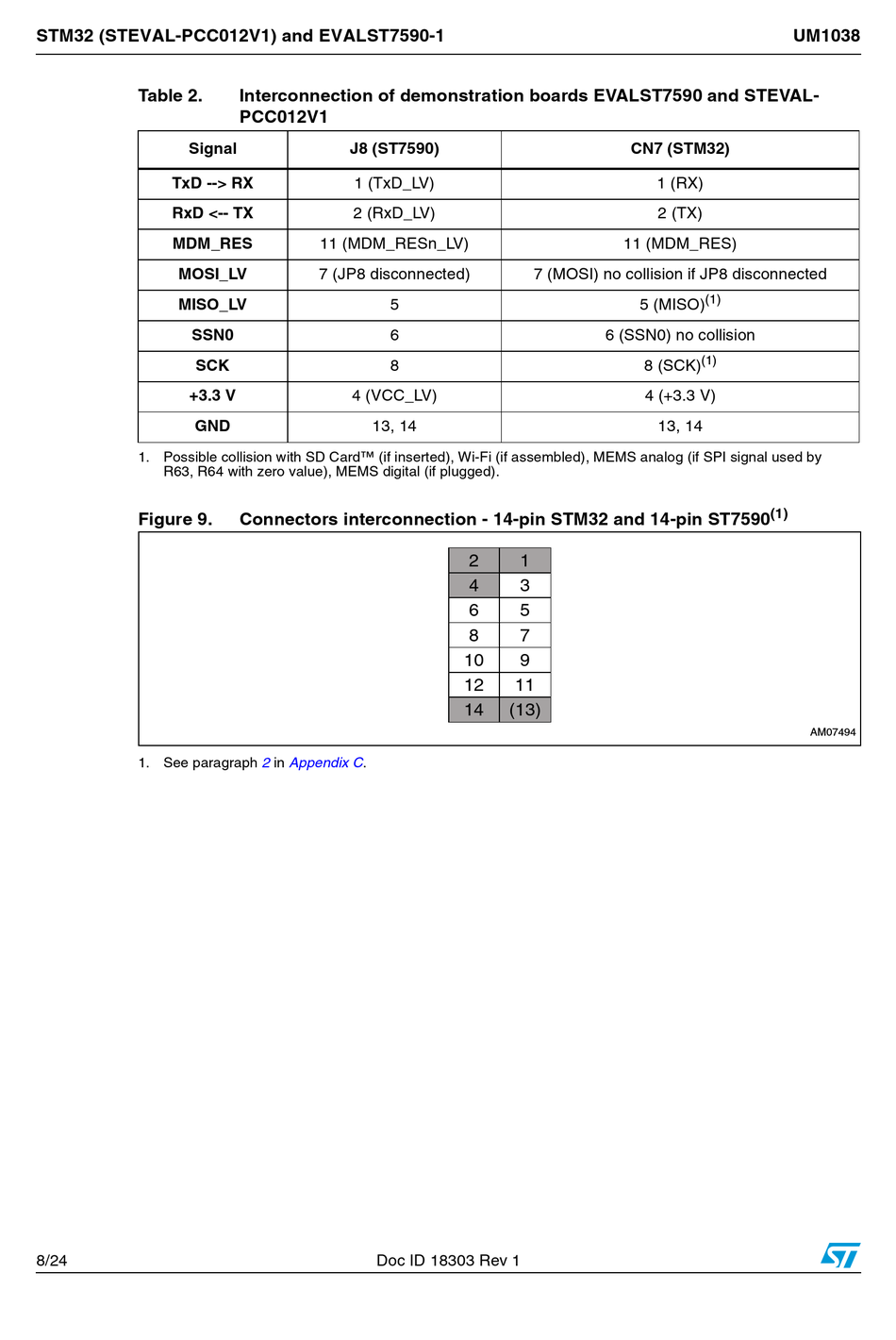

Table 2.
Signal
TxD --> RX
RxD <-- TX
MDM_RES
MOSI_LV
MISO_LV
SSN0
SCK
+3.3 V
GND
1. Possible collision with SD Card™ (if inserted), Wi-Fi (if assembled), MEMS analog (if SPI signal used by
R63, R64 with zero value), MEMS digital (if plugged).
Figure 9.
1. See paragraph
8/24
Interconnection of demonstration boards EVALST7590 and STEVAL-
PCC012V1
J8 (ST7590)
1 (TxD_LV)
2 (RxD_LV)
11 (MDM_RESn_LV)
7 (JP8 disconnected)
5
6
8
4 (VCC_LV)
13, 14
Connectors interconnection - 14-pin STM32 and 14-pin ST7590
2 in Appendix C.
Doc ID 18303 Rev 1
CN7 (STM32)
1 (RX)
2 (TX)
11 (MDM_RES)
7 (MOSI) no collision if JP8 disconnected
5 (MISO)
6 (SSN0) no collision
(1)
8 (SCK)
4 (+3.3 V)
13, 14
UM1038
(1)
(1)
