EVALSPEAr320HMI and ST7570, ST7580, ST7590 via UART

8 EVALSPEAr320HMI and ST7570, ST7580, ST7590 via
UART

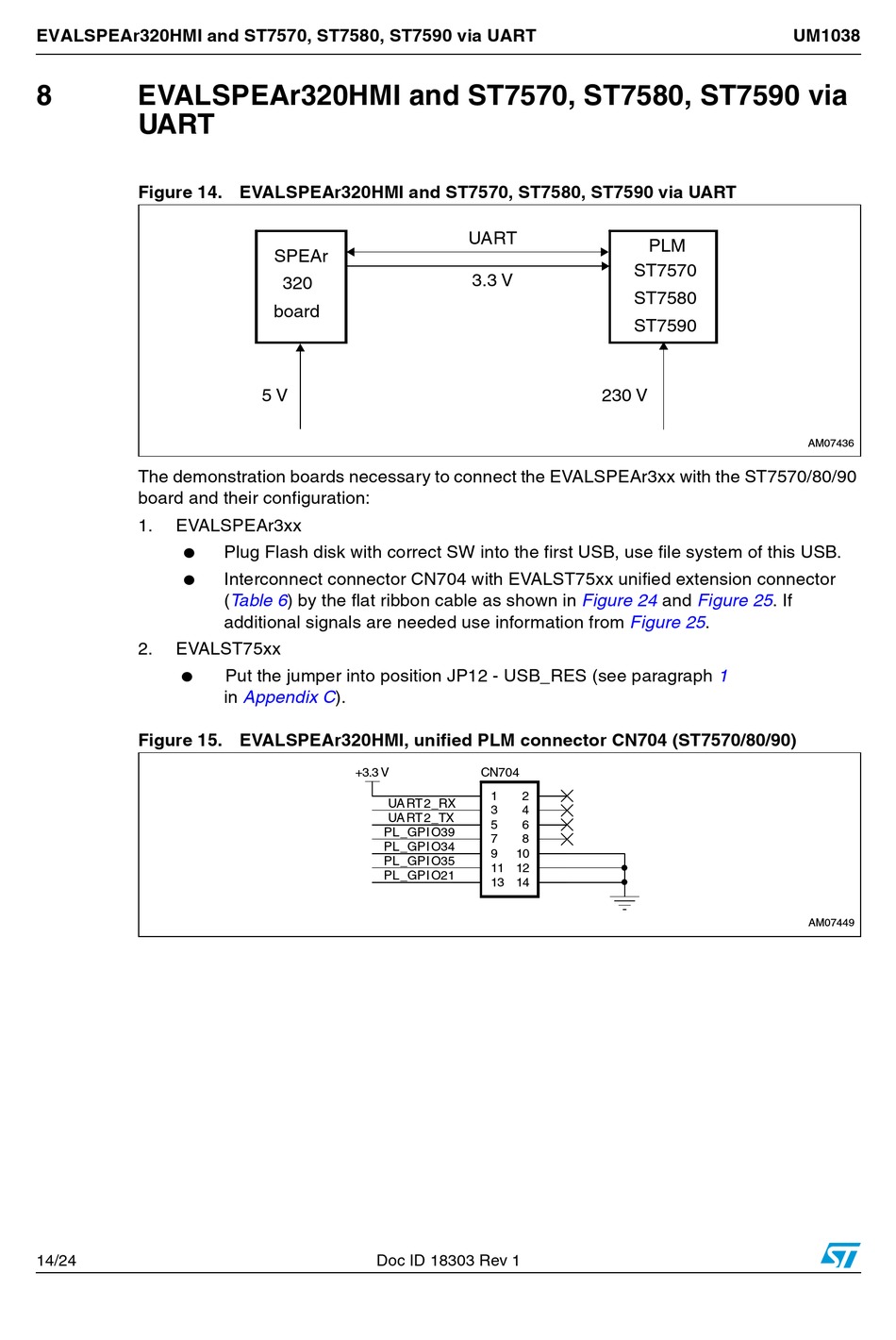

Figure 14. EVALSPEAr320HMI and ST7570, ST7580, ST7590 via UART

The demonstration boards necessary to connect the EVALSPEAr3xx with the ST7570/80/90
board and their configuration:
1. EVALSPEAr3xx
●
●
2. EVALST75xx
●

Figure 15. EVALSPEAr320HMI, unified PLM connector CN704 (ST7570/80/90)

14/24
Plug Flash disk with correct SW into the first USB, use file system of this USB.
Interconnect connector CN704 with EVALST75xx unified extension connector
(Table 6) by the flat ribbon cable as shown in
additional signals are needed use information from
Put the jumper into position JP12 - USB_RES (see paragraph
in Appendix C).
Doc ID 18303 Rev 1
Figure 24 and Figure
Figure 25.
1
UM1038
25. If
