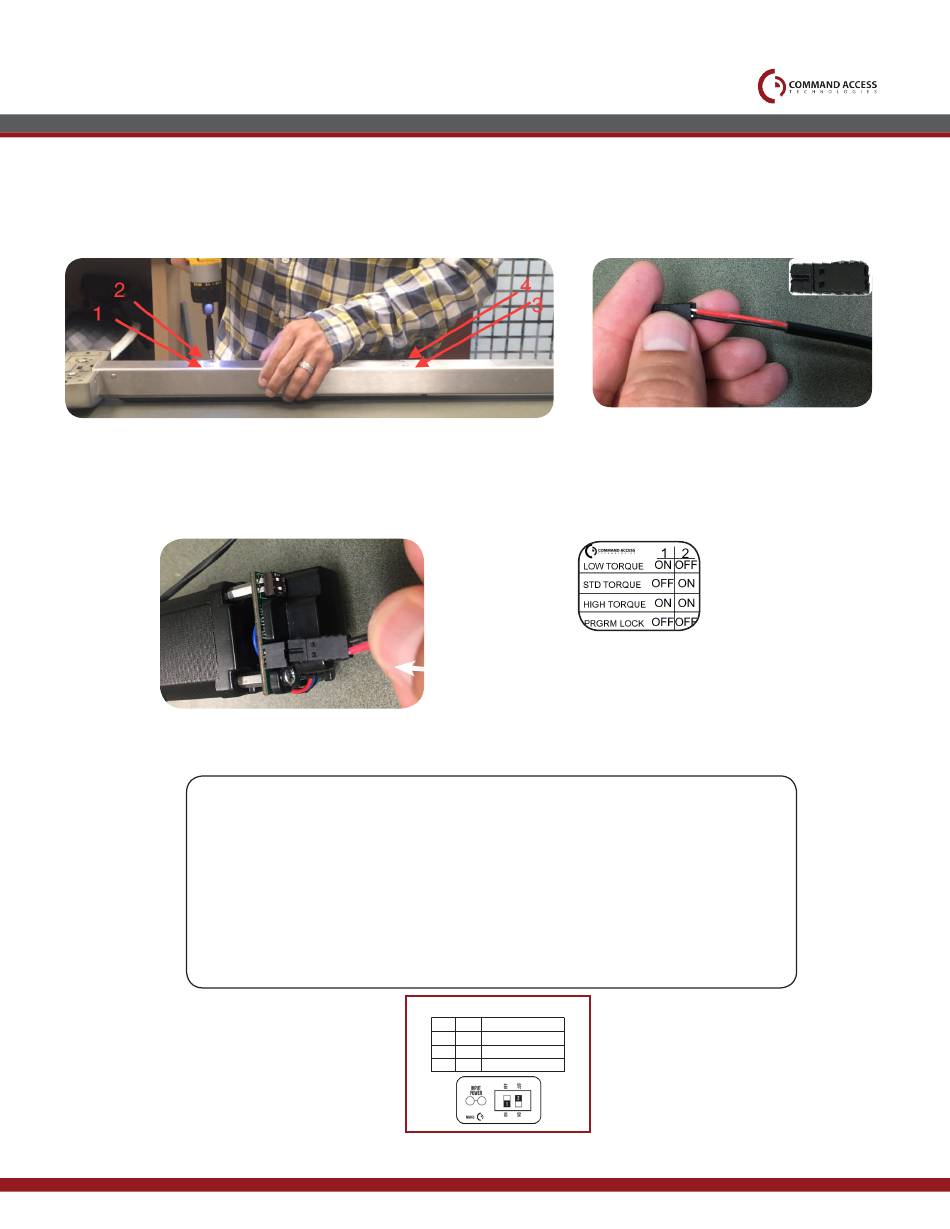

Setting Pts (Continued) - Command access MLP-UL-M KIT Insert Instructions

10.
Re-install original screws in holes 1 & 2. Install new screws
provided in holes 3 & 4.
12.
Next, plug in the push & go connector into the MM4S. Add
program sticker to back of the device.
Step 1-
Step 2-
Step 3-
Step 4-
U S C U S T O M E R S U P P O R T 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | W W W . C O M M A N D A C C E S S . C O M | C A C U S T O M E R S U P P O R T 1 - 8 5 5 - 8 2 3 - 3 0 0 2
CONTINUED
Select your preferred torque mode (ships in standard torque) Press the device push pad to the
desired setting. (Recommend to fully depress and release 5%, giving the device room for
changing door conditions.)
While depressing the push pad, apply power. (i.e. presenting the credential to the reader).
Continue to keep pad depressed, the device will beep 6 times. After the beeps have stopped,
release the pad and now the adjustment is complete. If not to your liking repeat the three
steps.
Once you found the correct location, flip the dip switches to off to lock programming.
11.
Connect your VD 8' lead (CAT or VD retrofit) or you can
remove the VD connector to hardwire- take stripped wire
end and push into the push & go connector
13.
Add program sticker to back of the device.
Setting PTS
mm4s switches
on off
LOW TORQUE
off on
STANDARD TORQUE
on on
HIGH TORQUE
off off
PTS PROGRAMMING LOCKED
E.
