Sullair TS-20 Operator's Manual And Parts List
  1. Manuals
  2. Brands
  3. Sullair Manuals
  4. Air Compressor
  5. TS-20
  6. Operator's manual and parts list
Sullair TS-20 Operator's Manual And Parts List

Sullair TS-20 Operator's Manual And Parts List

Industrial air compressor, 100-250hp/75-187kw air-cooled & water-cooled standard & 24kt
Hide thumbs Also See for TS-20:
Table of Contents

Advertisement

Quick Links

INDUSTRIAL AIR
COMPRESSOR
T T S S -2 2 0 0
V V 2 2 0 0 0 0 T T S S
100-250HP/75-187KW
AIR-COOLED & WATER-COOLED
STANDARD & 24KT
OPERATOR'S
MANUAL AND
PARTS LIST
KEEP FOR
FUTURE
REFERENCE
Part Number
02250146-047
©Sullair Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-20 and is the answer not in the manual?

Questions and answers

John Calaycay
February 17, 2025

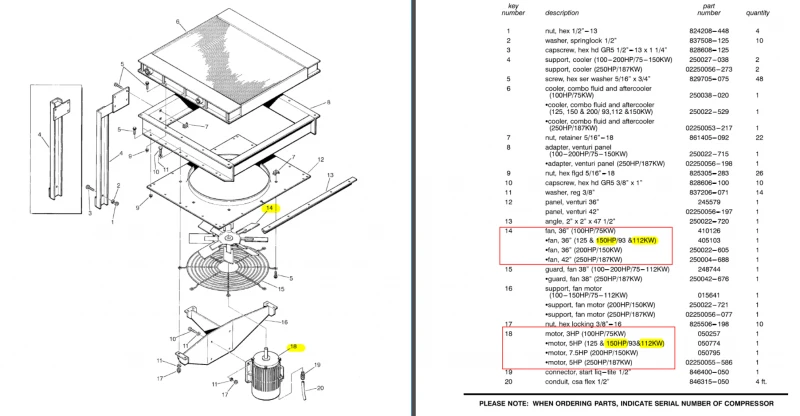

What is the static pressure of the cooling ****?
