4.2.2 Motor operating parameters setting
See as Figure 4-5.From submenu "motor tuning" of the menu "config" into the motor
parameter settings dialog. See as Figure 4-6
The parameters are defined as follows:
S
teps per Pulse equivalent ,it is number of pulses required with axial movement 1mm, This
：
can be calculated by lead screw pitch and motor drive segment. Such as pitch 2.5mm,2-phase
Manual of NVUM_SP

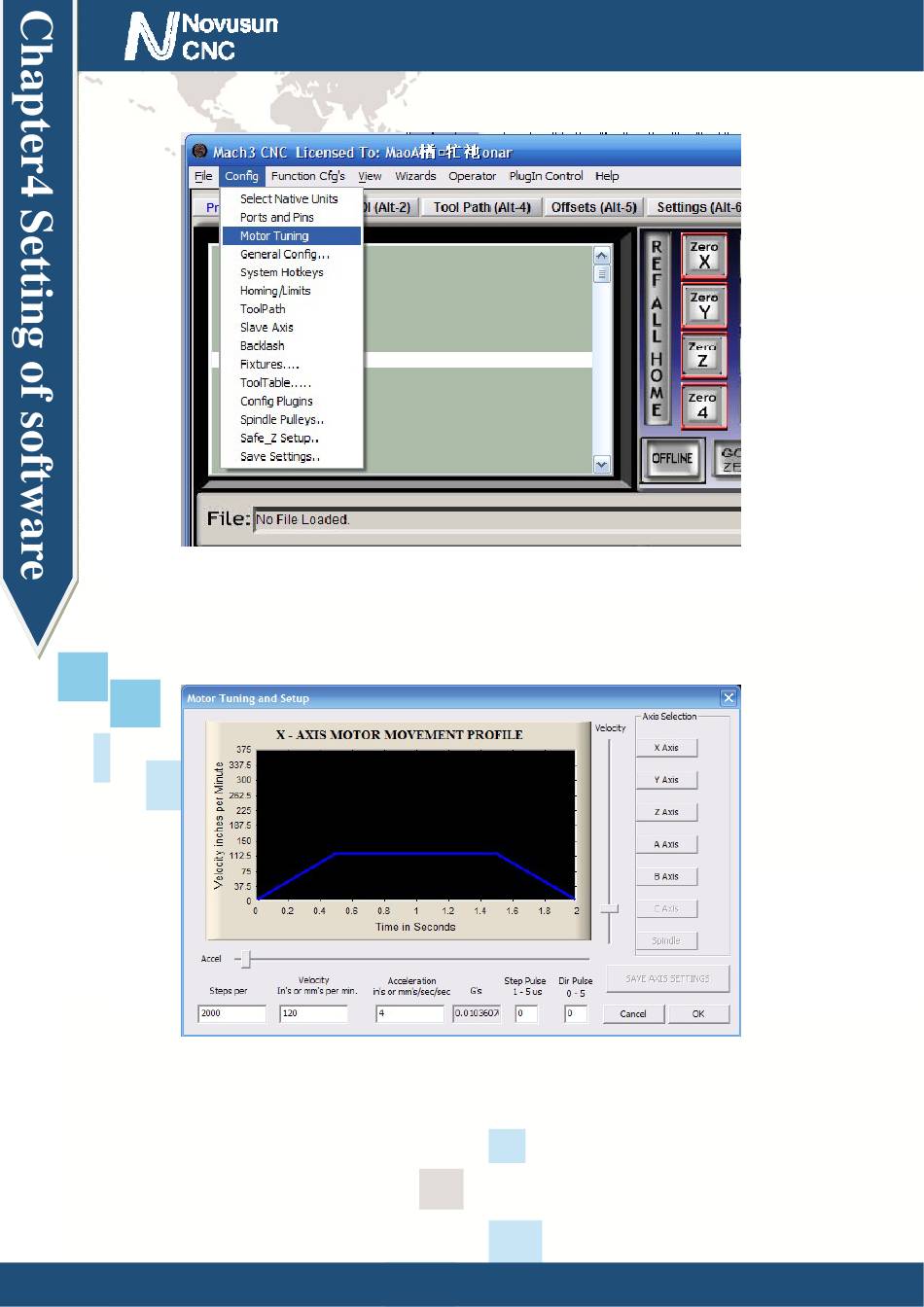

Figure4-5.
Motor operating parameter setting menu entry
Figure4-6.
Motor operating parameter settings dialog
