Novusun CNC NVUM_SPv1.1 Manual page 16

NVUM_SP Pin No.
WHA+
WHA-
WHB+
WHB-
Table 2-1. Connection Between Single MPG and NVUM_SP
2.2.4 Spindle control output
We define the interface from left are: INDS(spindle speed feedback input), VSO(0-10V
adjustable speed output), M3(Spindle run switch), GND1(Output GND).
Take Nowforeuer inverter as the example. Spindle control output and the inverter connection
showed as Figure 2-7.If ACM and DCM are closed,only need to connect one port.
If need the Mach 3 to show the real in time spindle speed,just fix one hall device,every
revolution send one pulse between INDS and GND1,pulse voltage is 5V-10V.

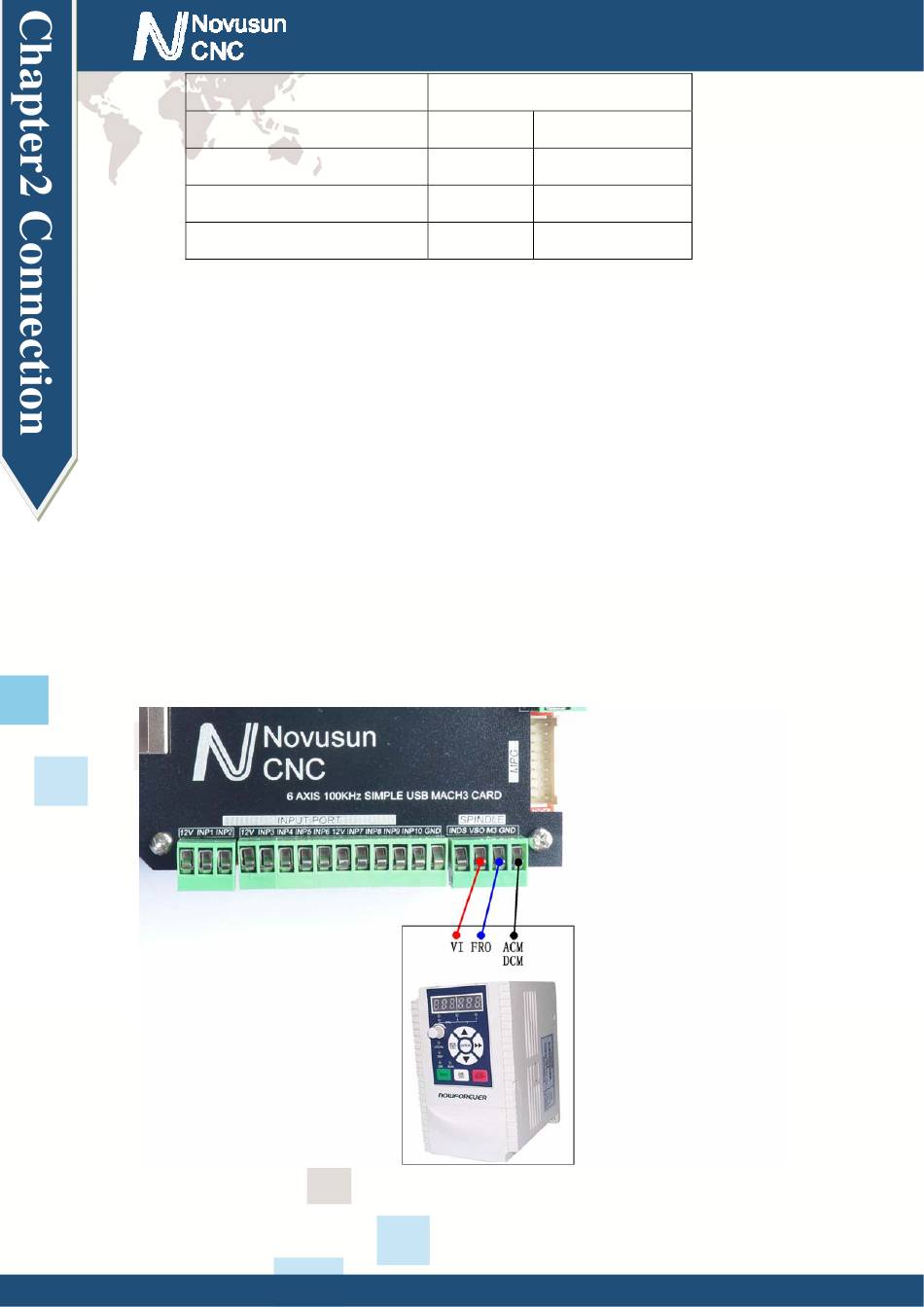

Figure2-7. spindle control output and inverter connection
Manual of NVUM_SP
MPG Pin No. and color
A+
0V
B+
0V
- 14 -
www.nvcnc.com
green
Black
white
Black
